RN41 Series
Manufacturer: Microchip Technology
Beta
⌘K
RF TXRX MODULE BLUETOOTH SMD
| Part | Power - Output | Current - Transmitting | Operating Temperature (Min) | Operating Temperature (Max) | Sensitivity | Current - Receiving | Protocol | Antenna Type | Frequency | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | RF Family/Standard | Mounting Type | Package / Case | Serial Interfaces | Data Rate | Firmware Version | Modulation | Voltage - Supply | Firmware Version (Version) | Frequency (Min) | Frequency (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Microchip Technology | 11.9 dBm | 65 mA | -40 °C | 85 °C | -86 dBm | 35 mA | Bluetooth v2.1 +EDR Class 1 | Antenna Not Included | 2.4 GHz | 3.6 V | 3 V | Bluetooth | Surface Mount | 35-SMD Module | SPI UART | 3 Mbps | ||||||
Microchip Technology | 11.9 dBm | 65 mA | -40 °C | 85 °C | -86 dBm | 35 mA | Bluetooth v2.1 +EDR Class 1 | Antenna Not Included | 2.4 GHz | 3.6 V | 3 V | Bluetooth | Surface Mount | 35-SMD Module | SPI UART | 3 Mbps | ||||||

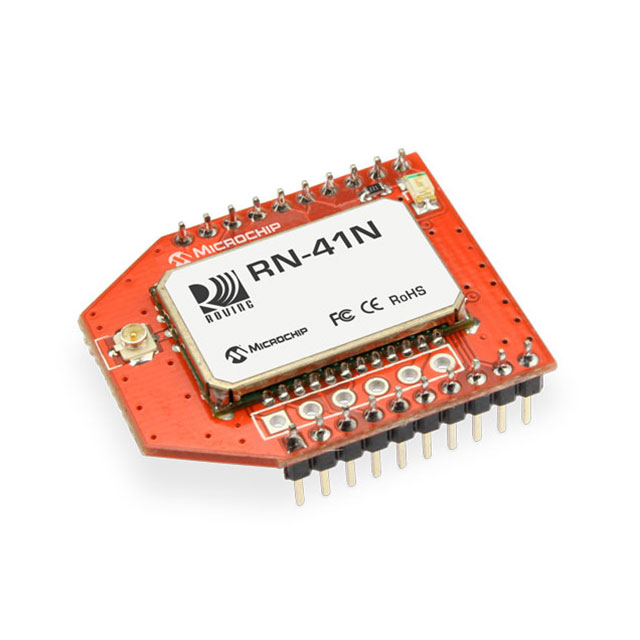

 Microchip Technology | 16 dBm | 65 mA | -40 °C | 85 °C | -80 dBm | 35 mA | Bluetooth v2.1 +EDR Class 1 | Antenna Not Included U.FL | 2.4 GHz | 3.6 V | 3 V | Bluetooth | Through Hole | 20-DIP Module | UART | 300 kbps | 6.15 | FHSS GFSK | ||||
 Microchip Technology | 16 dBm | 65 mA | -40 °C | 85 °C | -80 dBm | 35 mA | Bluetooth v2.1 +EDR Class 1 | Chip Integrated | 2.4 GHz | 3.6 V | 3 V | Bluetooth | Surface Mount | 35-SMD Module | SPI UART USB | 300 kbps | 6.15 | FHSS GFSK | ||||
 Microchip Technology | 16 dBm | 65 mA | -40 °C | 85 °C | -80 dBm | 35 mA | Bluetooth v2.1 +EDR Class 1 | Antenna Not Included | 2.4 GHz | 3.6 V | 3 V | Bluetooth | Surface Mount | 35-SMD Module | SPI UART USB | 300 kbps | 6.15 | FHSS GFSK | ||||
 Microchip Technology | 16 dBm | 65 mA | -40 °C | 85 °C | -80 dBm | 35 mA | Bluetooth v2.1 +EDR Class 1 | Chip Integrated | 2.4 GHz | Bluetooth | Surface Mount | 35-SMD Module | UART | 3 Mbps | 6.3 | FHSS GFSK | 3.3 V | |||||
Microchip Technology | 16 dBm | 65 mA | -40 °C | 85 °C | -80 dBm | 35 mA | Bluetooth v2.1 +EDR Class 1 | Chip Integrated | 2.4 GHz | 3.6 V | 3 V | Bluetooth | Surface Mount | 35-SMD Module | SPI UART USB | 3 Mbps | HID | FHSS GFSK | 6.11 | |||
Microchip Technology | 18.4 dBm | 65 mA | -40 °C | 85 °C | -80 dBm | 35 mA | Bluetooth v2.1 +EDR Class 1 | Chip Integrated | 3.6 V | 3 V | Bluetooth | Surface Mount | 35-SMD Module | SPI UART USB | 3 Mbps | FHSS GFSK | 2.402 GHz | 2.48 GHz | ||||
Microchip Technology | 18.4 dBm | 65 mA | -40 °C | 85 °C | -80 dBm | 35 mA | Bluetooth v2.1 +EDR Class 1 | Chip Integrated | 3.6 V | 3 V | Bluetooth | Surface Mount | 35-SMD Module | SPI UART USB | 3 Mbps | FHSS GFSK | 2.402 GHz | 2.48 GHz | ||||
Microchip Technology | 11.9 dBm | 65 mA | -40 °C | 85 °C | -86 dBm | 35 mA | Bluetooth v2.1 +EDR Class 1 | Antenna Not Included | 2.4 GHz | 3.6 V | 3 V | Bluetooth | Surface Mount | 35-SMD Module | SPI UART | 3 Mbps |
