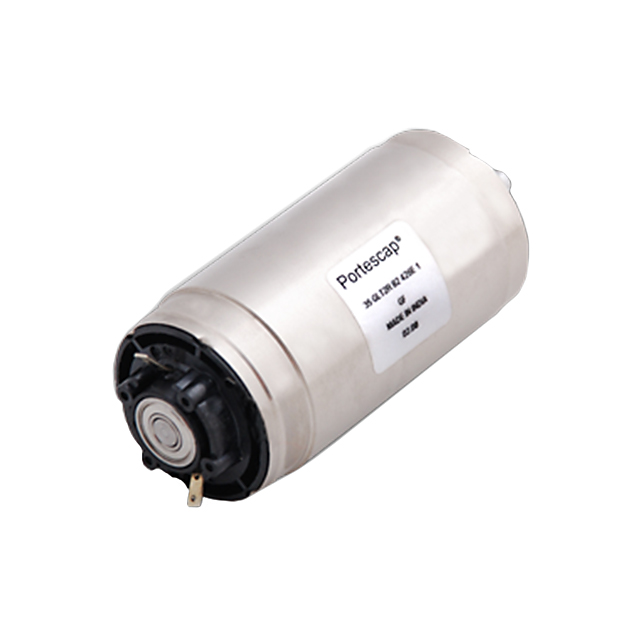

30GT2R82 Series
Manufacturer: Portescap
Beta
⌘K
STANDARD MOTOR 10000 RPM 35V
| Part | Weight | Weight | Function | Type | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Size / Dimension [diameter] | Size / Dimension | Motor Type | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Voltage - Rated | Termination Style | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | RPM | Power - Rated | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Portescap | 310.26 g | 0.684 lb | Standard | DC Motor | 0.197 in | 5 mm | 20 mm | 0.787 in | 1.181 " 30 mm | Round | Brushed | 847 mNm | 120 oz-in | 35 V | Solder Tab | 0.492 in | 12.5 mm | 10000 RPM | 82 W | 85 °C | -30 ░C |
