NTMTSC002 Series

Catalog

MOSFET, N-CH, 100V, 236A, 175DEG C, 255W ROHS COMPLIANT: YES

Part	Vgs (Max)	Mounting Type	Rds On (Max) @ Id, Vgs	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max)	Gate Charge (Qg) (Max) @ Vgs [Max]	FET Type	Drain to Source Voltage (Vdss)	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Input Capacitance (Ciss) (Max) @ Vds	Technology

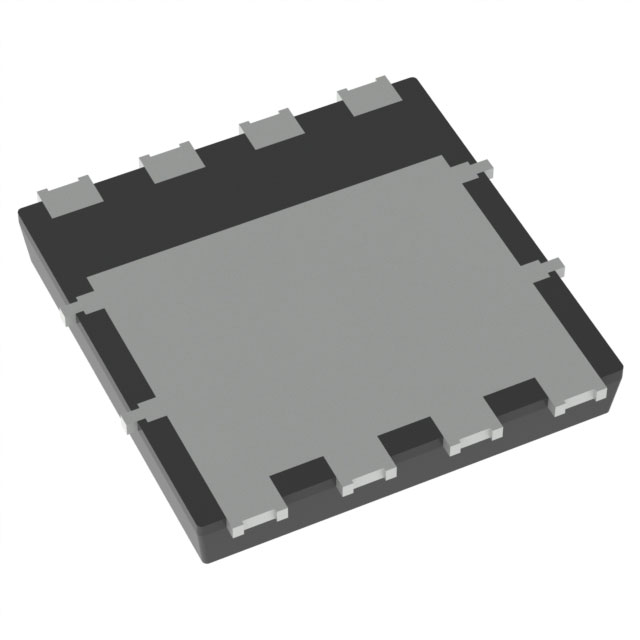

ON Semiconductor NTMTSC002N10MCTXG	20 V	Surface Mount Wettable Flank	2 mOhm	45 A 236 A	9 W 255 W	89 nC	N-Channel	100 V	8-PowerTDFN	-55 °C	175 ░C	6305 pF	MOSFET (Metal Oxide)
