BWA Series

Catalog

RF ADAPTERS - BETWEEN SERIES CONNECTORS

Part	Mating Cycles	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Body Material	Center Gender	Frequency - Max [Max]	Convert To (Adapter End)	Center Contact Plating	Conversion Type	Mounting Type	Impedance	Adapter Type	Convert From (Adapter End)	Style	Mounting Feature	Insertion Loss	Body Finish	Fastening Type	Convert To (Adapter End)	Adapter Series	Adapter Series	Features

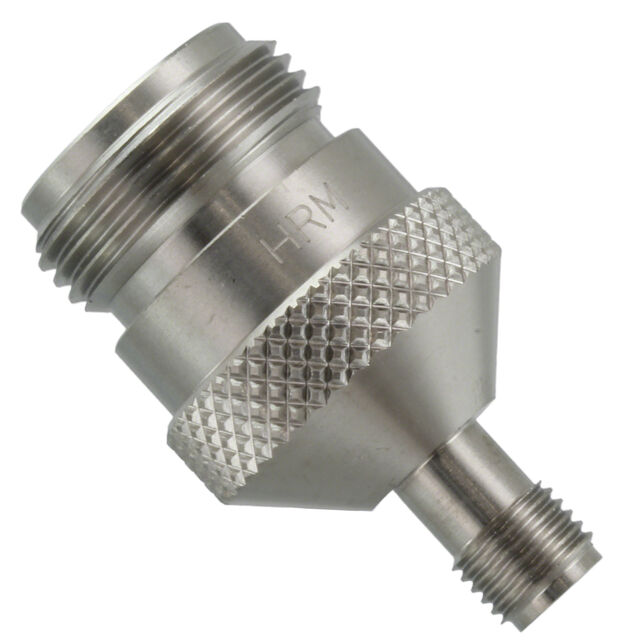

Hirose Electric Co Ltd HRM-552S	1000	Beryllium Copper	85 °C	-40 C	Polytetrafluoroethylene (PTFE)	Stainless Steel	Female to Female	12.4 GHz	SMA Jack Female Socket	Gold	Between Series	Free Hanging (In-Line)	50 Ohms	Jack to Jack	Female Socket N Jack	Straight
Hirose Electric Co Ltd HRM-557SV								18 GHz	SMA Plug Male Pin	Gold	Between Series	Panel Mount	50 Ohms	Plug to Jack	Female Socket N Jack	Straight	Flange

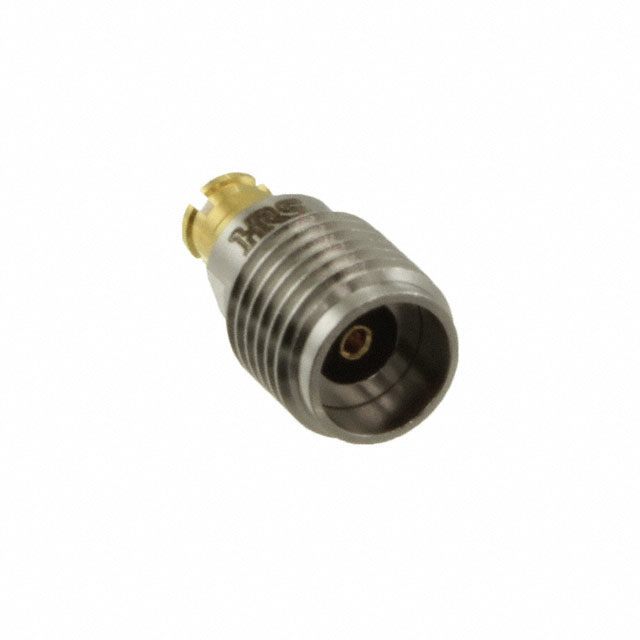

Hirose Electric Co Ltd SMPJ-HKJ	500	Beryllium Copper	125 °C	-55 C	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Female to Female	40 GHz	Jack Female Socket	Gold	Between Series	Free Hanging (In-Line)	50 Ohms	Jack to Jack	Female Socket SMP Jack	Straight		0.5 dB	Gold	Snap-On Threaded	2.92 mm	2.92 mm	SMP
Hirose Electric Co Ltd HRM-557S								12.4 GHz	SMA Plug Male Pin	Gold	Between Series	Panel Mount	50 Ohms	Plug to Jack	Female Socket N Jack	Straight	Flange
Hirose Electric Co Ltd HRM-554S(40)	1000	Beryllium Copper	125 °C	-55 C	Polytetrafluoroethylene (PTFE)	Stainless Steel		12.4 GHz	N Plug Male Pin	Gold	Between Series	Free Hanging (In-Line)	50 Ohms	Plug to Jack	Female Socket SMA Jack	Straight
Hirose Electric Co Ltd HRM-511(40)							Female to Female	12.4 GHz	N Jack Female Socket		Between Series	Panel Mount	50 Ohms	Jack to Jack	Female Socket SMA Jack	Straight	Flange
Hirose Electric Co Ltd HRM-556SV							Female to Female	18 GHz	N Jack Female Socket	Gold	Between Series	Panel Mount	50 Ohms	Jack to Jack	Female Socket SMA Jack	Straight	Flange
Hirose Electric Co Ltd SMPP(SB)-HKP							Male to Male	40 GHz	2.92mm (OS-2.9) Plug Male Pin	Gold	Between Series	Free Hanging (In-Line)	50 Ohms	Plug to Plug	SMP Plug Male Pin	Straight				Snap-On Threaded		2.92 mm	SMP	Smooth Bore

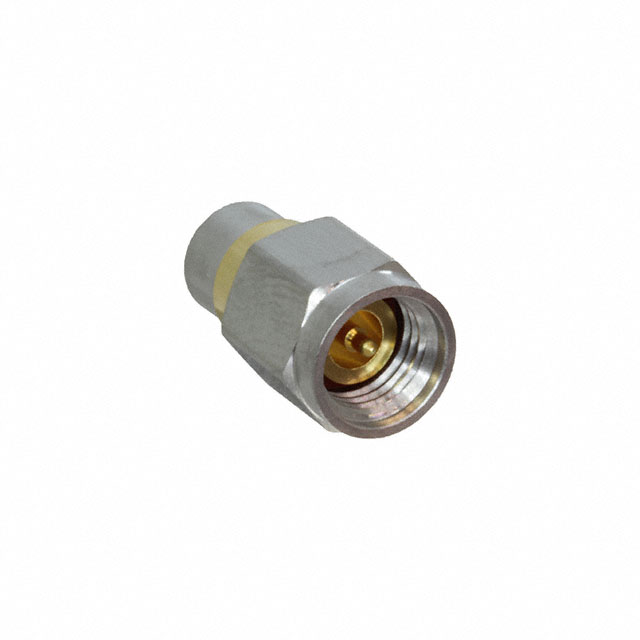

Hirose Electric Co Ltd SMPP(FD)-HKP	500	Phosphor Bronze	125 °C	-55 C	Polytetrafluoroethylene (PTFE)	Brass Stainless Steel	Male to Male	40 GHz	2.92mm (OS-2.9) Plug Male Pin	Gold	Between Series	Free Hanging (In-Line)	50 Ohms	Plug to Plug	SMP Plug Male Pin	Straight		0.5 dB	Gold Passivated	Snap-On Threaded		2.92 mm	SMP	Full Detent
