RM15WTRZ Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
STANDARD CIRCULAR CONNECTOR
| Part | Fastening Type | Shell Material | Contact Finish - Mating | Orientation | Primary Material | Shell Finish | Contact Material | Current Rating (Amps) | Ingress Protection | Voltage Rating | Mounting Feature | Color | Number of Positions | Shielding | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Insert Material | Shell Size - Insert [custom] | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

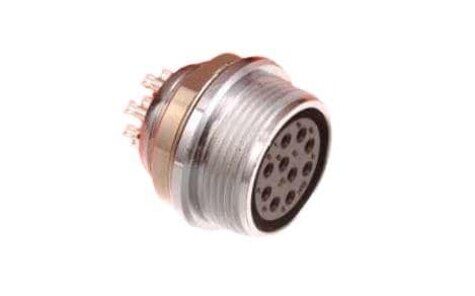

 Hirose Electric Co Ltd | Threaded | Zinc Alloy | Silver | Keyed | Metal | Chrome | Copper Alloy | 5 A | IP67/IP68 | 350 VAC 490 VDC | Bulkhead - Front Side Nut | Silver | 12 | Unshielded | UL94 V-0 | 85 °C | -25 °C | Receptacle Female Sockets | Polyphenylene Sulfide (PPS) | 15 | Panel Mount | ||
Hirose Electric Co Ltd | Threaded | Zinc Alloy | Silver | Keyed | Metal | Chrome | Copper Alloy | 10 A | IP67/IP68 | 600 VAC 840 VDC | Bulkhead - Front Side Nut | Silver | 2 | Unshielded | UL94 V-0 | 85 °C | -25 °C | Receptacle Female Sockets | Polyphenylene Sulfide (PPS) | 15 | Panel Mount | ||

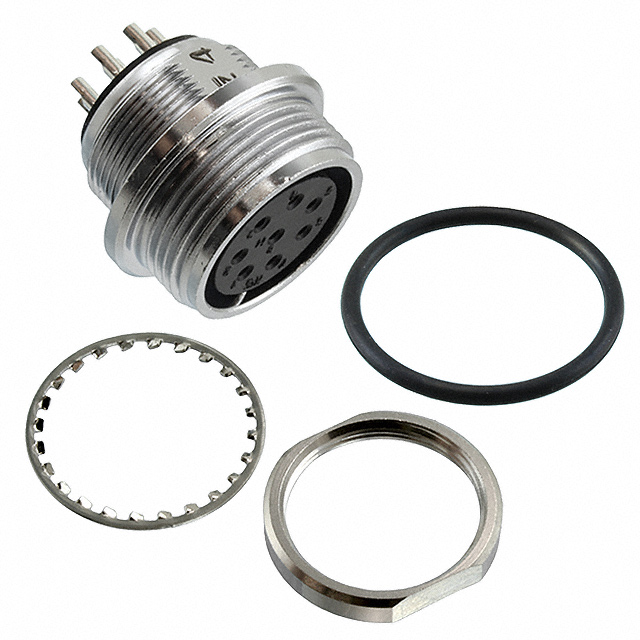

 Hirose Electric Co Ltd | Threaded | Zinc Alloy | Silver | Keyed | Metal | Chrome | Copper Alloy | 5 A | IP67/IP68 | 500 VAC 700 VDC | Bulkhead - Rear Side Nut | Silver | 8 | UL94 V-0 | 85 °C | -25 °C | Receptacle Female Sockets | Diallyl Phthalate (DAP) | 15 | Panel Mount | 5 µm | 196.9 µin | |
Hirose Electric Co Ltd | Threaded | Brass Zinc Alloy | Keyed | Metal | 10 A | IP67/IP68 | 500 VAC 700 VDC | Bulkhead - Rear Side Nut | Silver | 4 | Unshielded | UL94 V-0 | 85 °C | -25 °C | Receptacle Male Pins | 15 | Panel Mount | ||||||

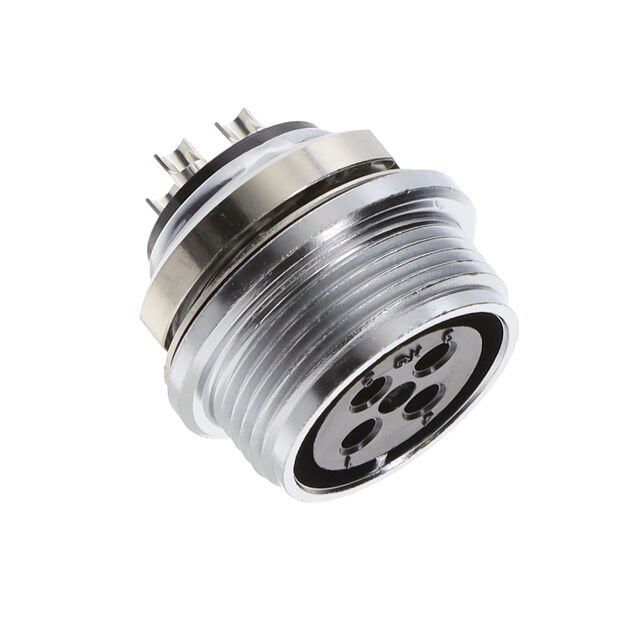

Hirose Electric Co Ltd | Threaded | Brass Zinc Alloy | Gold | Keyed | Metal | Chromate | Copper Alloy | 10 A | IP67/IP68 | 500 VAC 700 VDC | Bulkhead - Front Side Nut | Silver | 4 | Unshielded | UL94 V-0 | 85 °C | -25 °C | Receptacle Female Sockets | Polyphenylene Sulfide (PPS) | 15 | Panel Mount | 2 µm | 78.7 µin |
 Hirose Electric Co Ltd | Threaded | Brass Zinc Alloy | Silver | Keyed | Metal | Chromate | Copper Alloy | 10 A | IP67/IP68 | 500 VAC 700 VDC | Bulkhead - Front Side Nut | Silver | 4 | Unshielded | UL94 V-0 | 85 °C | -25 °C | Receptacle Female Sockets | Polyphenylene Sulfide (PPS) | 15 | Panel Mount | 2 µm | 78.7 µin |
Hirose Electric Co Ltd | Threaded | Brass Zinc Alloy | Keyed | Metal | 5 A | IP67/IP68 | 350 VAC 490 VDC | Bulkhead - Rear Side Nut | Silver | 10 | Unshielded | UL94 V-0 | 85 °C | -25 °C | Receptacle Male Pins | 15 | Panel Mount | ||||||
Hirose Electric Co Ltd | Threaded | Zinc Alloy | Silver | Keyed | Metal | Chrome | Phosphor Bronze | 10 A | IP67/IP68 | 500 VAC 700 VDC | Bulkhead - Rear Side Nut | Silver | UL94 V-0 | 85 °C | -25 °C | Receptacle Female Sockets | Diallyl Phthalate (DAP) | 15 | Panel Mount | 3 µm | 118.1 µin | ||
Hirose Electric Co Ltd | Threaded | Zinc Alloy | Gold | Keyed | Metal | Chrome | Phosphor Bronze | 10 A | IP67/IP68 | 500 VAC 700 VDC | Bulkhead - Rear Side Nut | Silver | UL94 V-0 | 85 °C | -25 °C | Receptacle Female Sockets | Diallyl Phthalate (DAP) | 15 | Panel Mount | 0.203 µm | 8 µin | ||
Hirose Electric Co Ltd | Threaded | Zinc Alloy | Gold | Keyed | Metal | Chrome | Copper Alloy | 10 A | IP67/IP68 | 600 VAC 840 VDC | Bulkhead - Rear Side Nut | Silver | 2 | UL94 V-0 | 85 °C | -25 °C | Receptacle Male Pins | Diallyl Phthalate (DAP) | 15 | Panel Mount | 0.203 µm | 8 µin |
