GT13SC Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN COAX RCPT R/A 50 OHM PCB
| Part | Voltage Rating | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Dielectric Material | Body Material | Center Contact Material | Number of Ports | Mounting Type | Impedance | Frequency - Max [Max] | Connector Style | Housing Color | Connector Type | Contact Termination | Fastening Type | Features | Accessory Type | Color | For Use With/Related Products | For Use With/Related Products | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

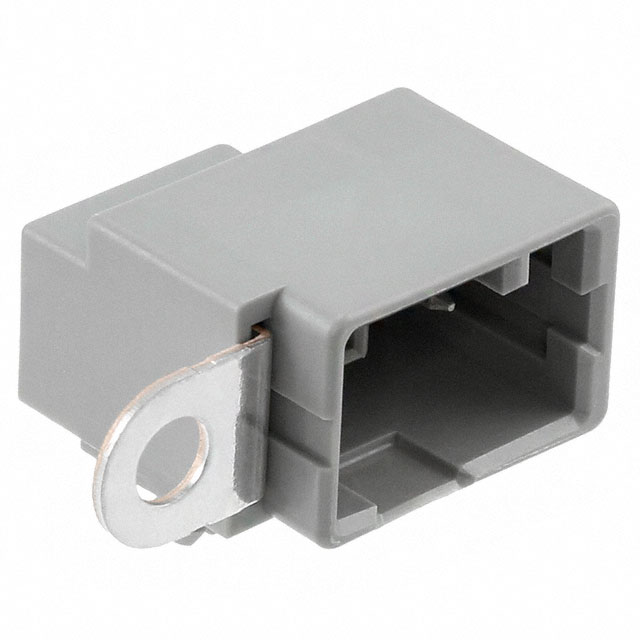

 Hirose Electric Co Ltd | 250 V | 30 | -30 ░C | 105 ░C | Tin | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Copper Alloy | 5 | Right Angle Through Hole | 50 Ohms | 1 GHz | Coaxial | Gray | Receptacle Male Pin | Solder | Push-Pull | Board Lock Mounting Flange | |||||

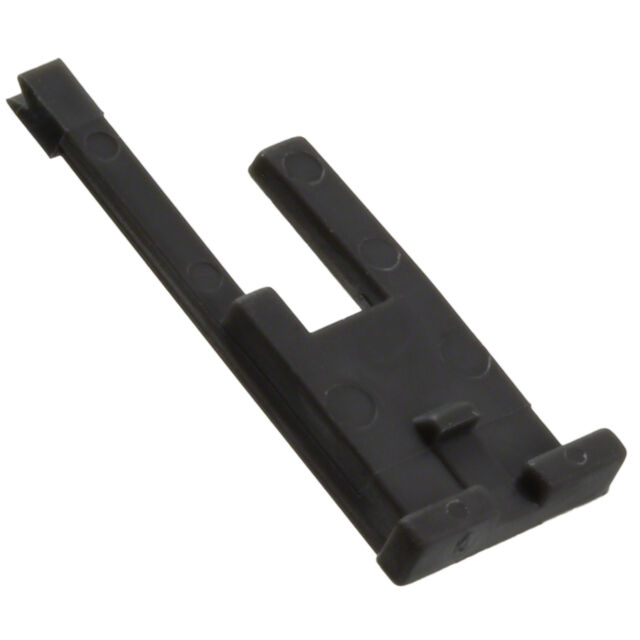

 Hirose Electric Co Ltd | Polybutylene Terephthalate (PBT) | Retainer | Gray | 5 Positions | GT13 Housings | ||||||||||||||||||
 Hirose Electric Co Ltd | 250 V | 30 | -30 ░C | 105 ░C | Tin | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Brass | 2 | Right Angle Through Hole | 50 Ohms | 1 GHz | Coaxial | Gray | Receptacle Male Pin | Solder | Push-Pull | Board Lock Mounting Flange | |||||

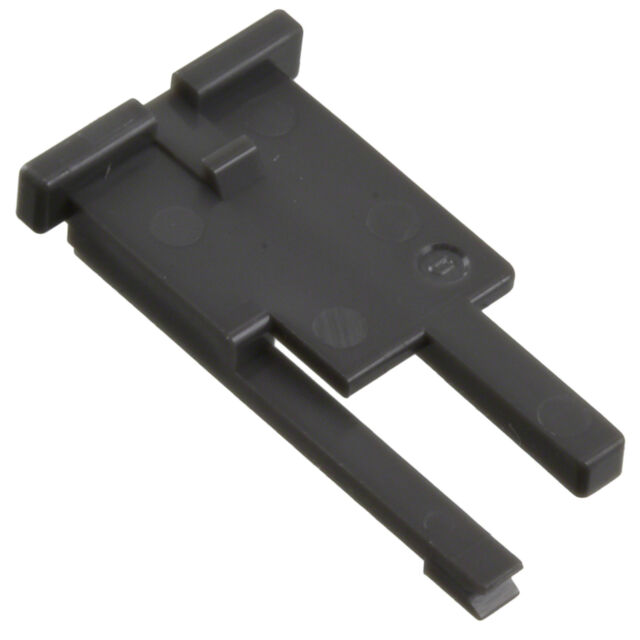

 Hirose Electric Co Ltd | Polybutylene Terephthalate (PBT) | Retainer | Gray | GT13 Housing | |||||||||||||||||||
Hirose Electric Co Ltd | 250 V | 30 | -30 ░C | 105 ░C | Tin | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Copper Alloy | 5 | Right Angle Through Hole | 50 Ohms | 1 GHz | Coaxial | Brown | Receptacle Male Pin | Solder | Push-Pull | Board Lock Keyed Mounting Flange | |||||
Hirose Electric Co Ltd | 250 V | 30 | -30 ░C | 105 ░C | Tin | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Copper Alloy | 2 | Right Angle Through Hole | 50 Ohms | 1 GHz | Coaxial | Gray | Receptacle Male Pin | Crimp | Push-Pull | Board Lock Mounting Flange | Crimp | ||||

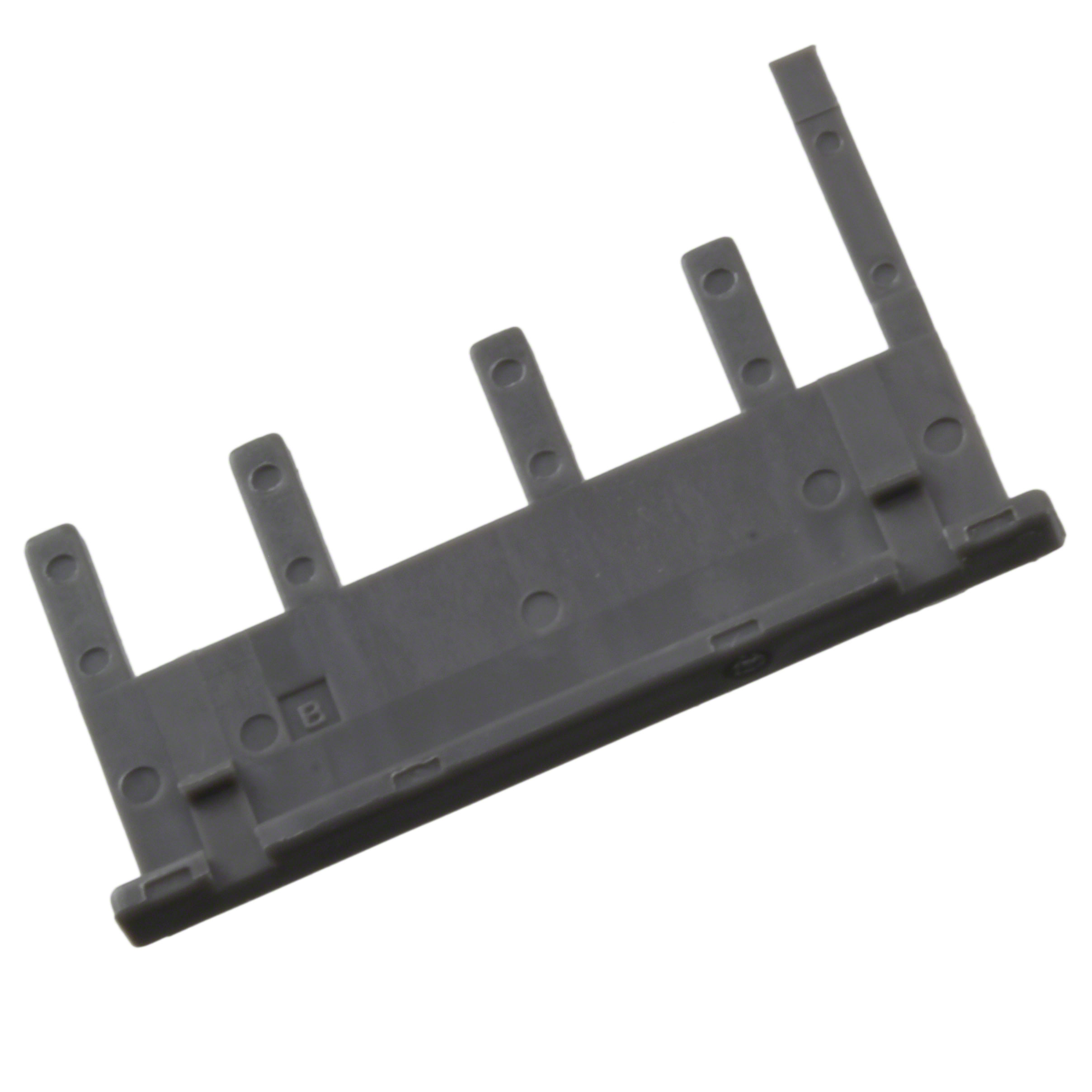

 Hirose Electric Co Ltd | Polybutylene Terephthalate (PBT) | Retainer | Gray | 5 Positions | GT13 Housings | ||||||||||||||||||
 Hirose Electric Co Ltd | Polybutylene Terephthalate (PBT) | Retainer | Gray | GT13 Housing | |||||||||||||||||||

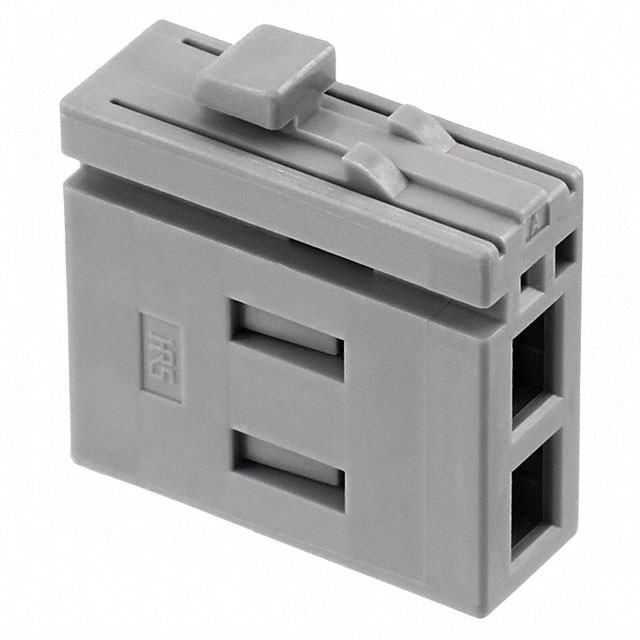

 Hirose Electric Co Ltd | Polybutylene Terephthalate (PBT) | F | 3 Positions | Housing | Gray | F Terminals | |||||||||||||||||
Hirose Electric Co Ltd | 250 V | 30 | -30 ░C | 105 ░C | Tin | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Copper Alloy | 5 | Right Angle Through Hole | 50 Ohms | 1 GHz | Coaxial | Gray | Receptacle Male Pin | Solder | Push-Pull | Board Lock |
