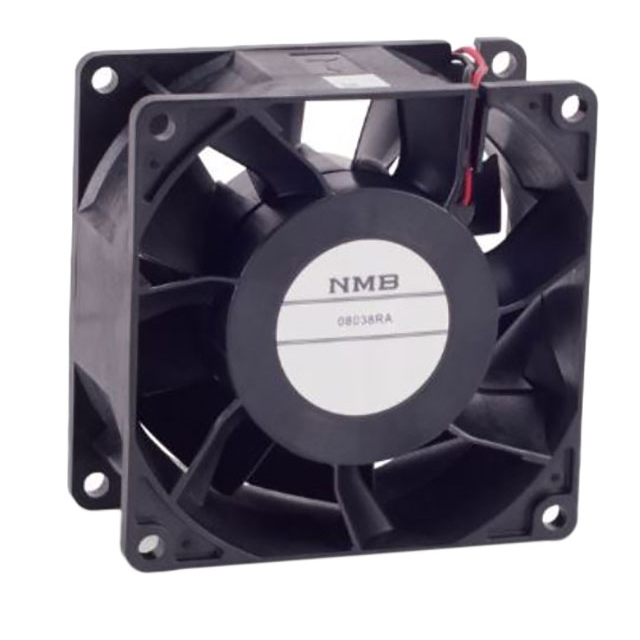

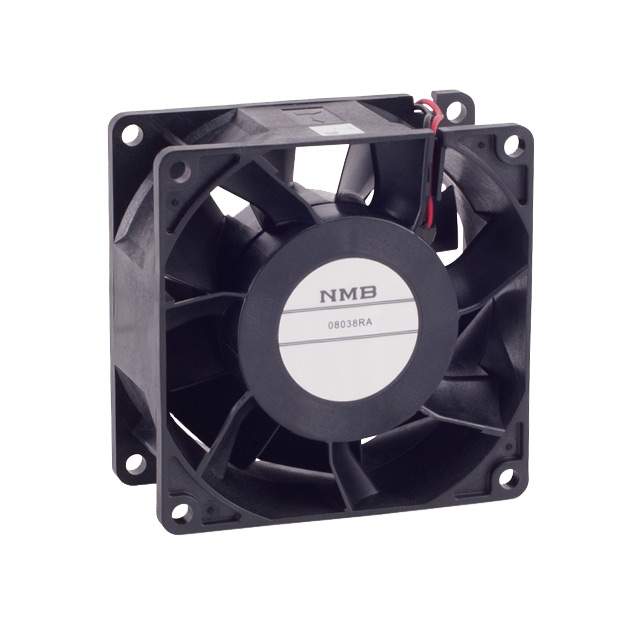

DC FANS TUBEAXIAL FAN, 80X80X38MM, 24VDC, 91.8CFM, FLANGE, BALL, WIRE, IP69K
| Part | Material - Blade | Voltage Range [Max] | Voltage Range [Min] | Lifetime @ Temp. | Material - Frame | Current Rating (Amps) | Power (Watts) | Fan Type | Size / Dimension [z] | Size / Dimension [x] | Voltage - Rated | Air Flow | Air Flow | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Bearing Type | Width [y] | Noise | Ingress Protection | RPM | Features | Static Pressure | Static Pressure | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | Plastic | 27.6 VDC | 14 | 80000 Hrs | Plastic | 600 mA | 14.4 W | Tubeaxial | 80 mm | 80 mm | 24 VDC | 2.57 m³/min | 91.8 CFM | 70 °C | -10 °C | 2 Wire Leads | Ball | 38 mm | 56 dB | IP69K - Dust Tight High Temp Water Jets Waterproof | 6500 RPM | Auto Restart | 258 Pa | 1.04 in H2O | |
 NMB TECHNOLOGIES | Plastic | 13.2 VDC | 7 V | 80000 Hrs | Plastic | 1.15 A | 13.8 W | Tubeaxial | 80 mm | 80 mm | 12 VDC | 2.57 m³/min | 91.8 CFM | 70 °C | -10 °C | 4 Wire Leads | Ball | 38 mm | 56 dB | 6500 RPM | Auto Restart PWM Control Speed Sensor (Tach) | 258 Pa | 1.04 in H2O | CE cULus VDE | |
NMB TECHNOLOGIES | Plastic | Plastic | Tubeaxial | 80 mm | 80 mm | 24 VDC | 70 °C | -10 °C | 2 Wire Leads | Ball | 38 mm | IP69K - Dust Tight High Temp Water Jets Waterproof | Auto Restart |
