MCP-27 Series
Manufacturer: Omnetics
Beta
⌘K

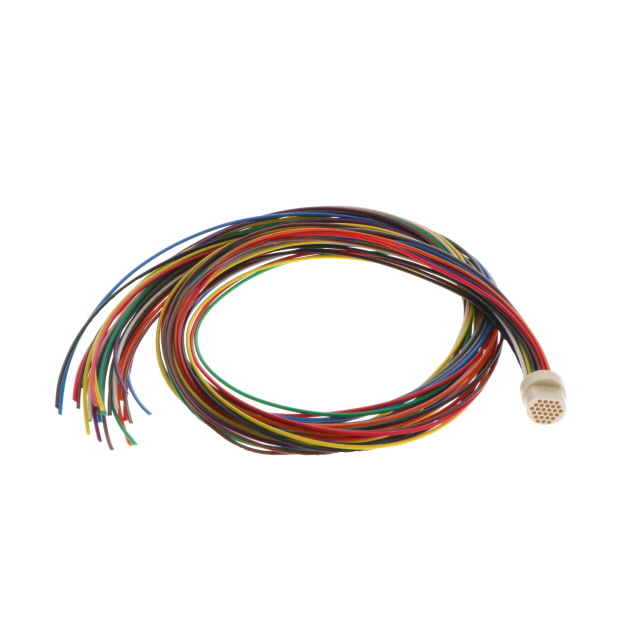

CIRC CBL 27POS PLUG TO WIRE 1.5'
| Part | Cable Material | 1st Connector Number of Positions Loaded | Assembly Configuration | 1st Connector Orientation | 1st Connector Gender | Length [x] | Length [x] | 1st Connector Mounting Type | Cable Type | Shielding | 2nd Connector Type | 1st Connector Type | Color | Usage | Orientation | Insert Material | Number of Positions | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Mounting Type | Contact Finish - Mating | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Primary Material | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omnetics | Polytetrafluoroethylene (PTFE) | All | Standard | Keyed | Male Pins | 457.2 mm | 1.5 ft | Free Hanging (In-Line) | Individual | Unshielded | Wire Leads | Plug | Multiple | Industrial Environments | |||||||||||||||

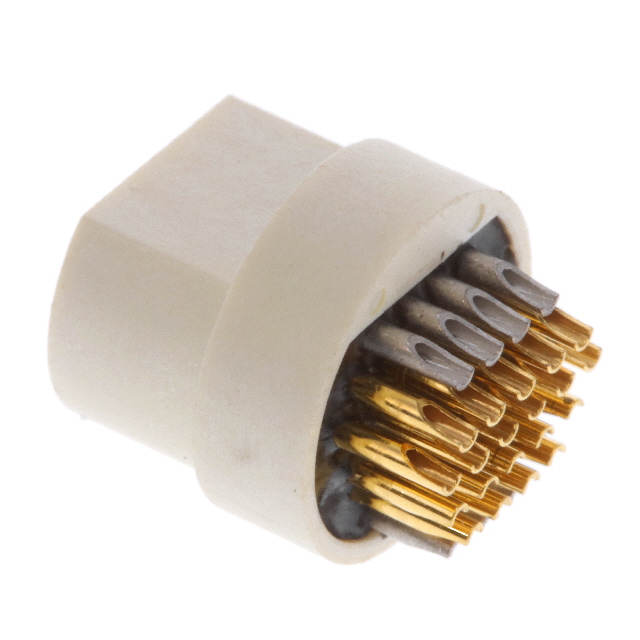

 Omnetics | Unshielded | Natural | Keyed | Liquid Crystal Polymer (LCP) | 27 | Plug Male Pins | -55 C | 125 °C | Liquid Crystal Polymer (LCP) | Free Hanging (In-Line) | Gold | Beryllium Copper | 50 µin | 1.27 µm | Push-Pull | Plastic | 3 A |
