FH55 Series

Catalog

CONN FFC FPC 0.5MM SMD

Part	Actuator Color	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Mating Cycles	Housing Color	Number of Positions [custom]	Flat Flex Type	Connector/Contact Type	Material Flammability Rating	Mounting Type	FFC, FCB Thickness	Actuator Material	Contact Material	Locking Feature	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Cable End Type	Height Above Board [z]	Height Above Board [z]	Termination	Features	Pitch	Pitch	Housing Material	Number of Positions

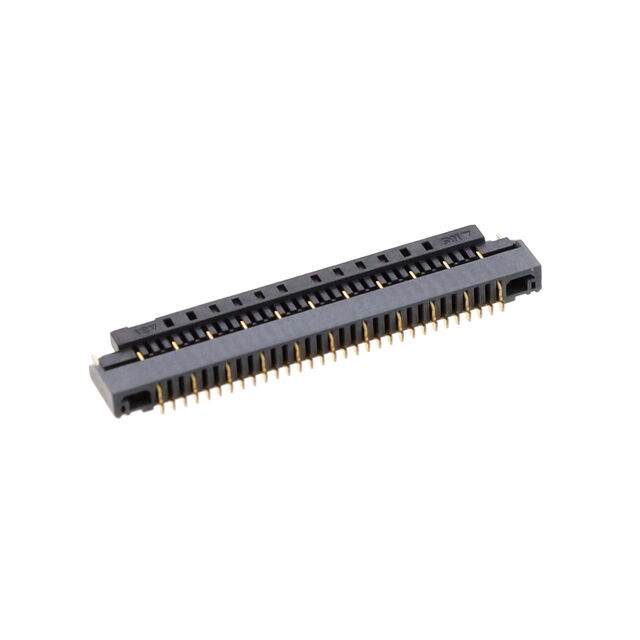

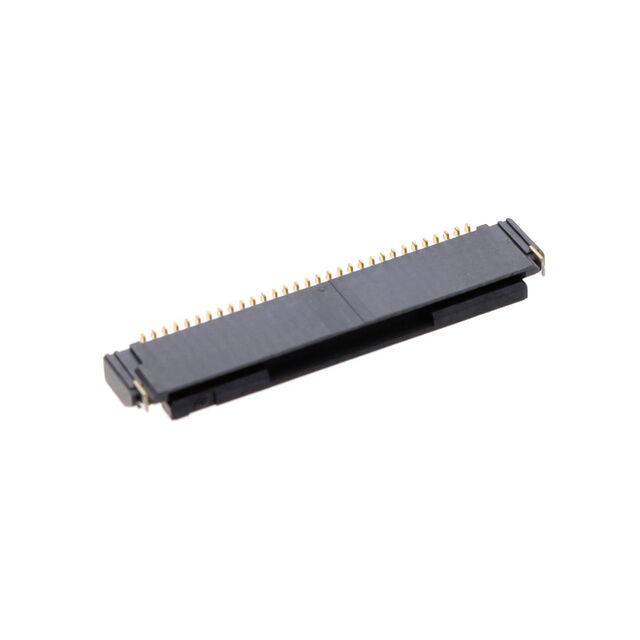

Hirose Electric Co Ltd FH55-31S-0.5SH	Black	1.25 Áin	0.03 Ám	0.5 A	20	Gray	31	FPC	Contacts Bottom	UL94 V-0	Right Angle Surface Mount	0.3 mm	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Flip Lock	Gold	-55 C	85 °C	50 V	Tabbed	0.059 in	1.5 mm	Crimp	Solder Retention Zero Insertion Force (ZIF)	0.02 "	0.5 mm	Liquid Crystal Polymer (LCP)

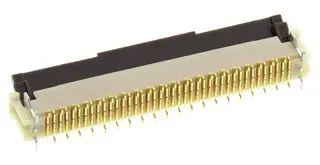

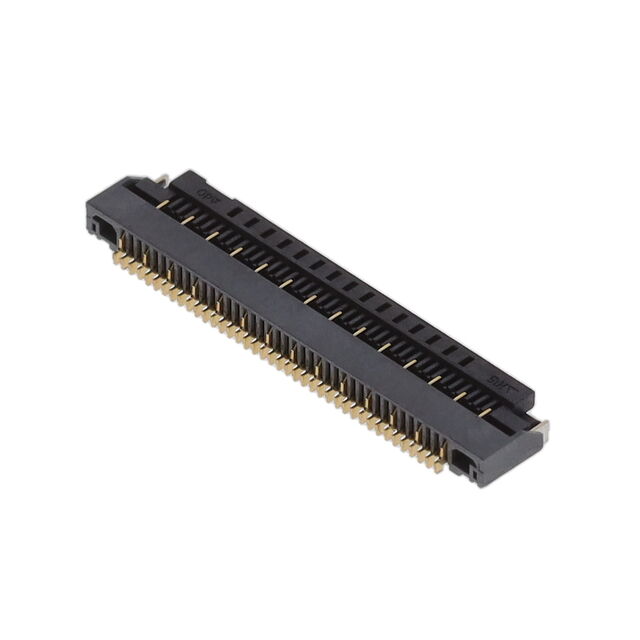

Hirose Electric Co Ltd FH55M-40S-0.4SH	Black	1.25 Áin	0.03 Ám	400 mA	20	Gray		FPC	Receptacle	UL94 V-0	Right Angle Surface Mount	0.3 mm	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Flip Lock	Gold	-55 C	85 °C	40 V	Tabbed	0.059 in	1.5 mm	Solder	Solder Retention Zero Insertion Force (ZIF)	0.016 in	0.4 mm	Liquid Crystal Polymer (LCP)	40
Hirose Electric Co Ltd FH55M-31S-0.4SH	Black	1.25 Áin	0.03 Ám	400 mA	20	Gray	31	FPC	Contacts Bottom	UL94 V-0	Right Angle Surface Mount	0.3 mm	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Flip Lock	Gold	-55 C	85 °C	40 V	Tabbed	0.059 in	1.5 mm	Solder	Solder Retention Zero Insertion Force (ZIF)	0.016 in	0.4 mm	Liquid Crystal Polymer (LCP)

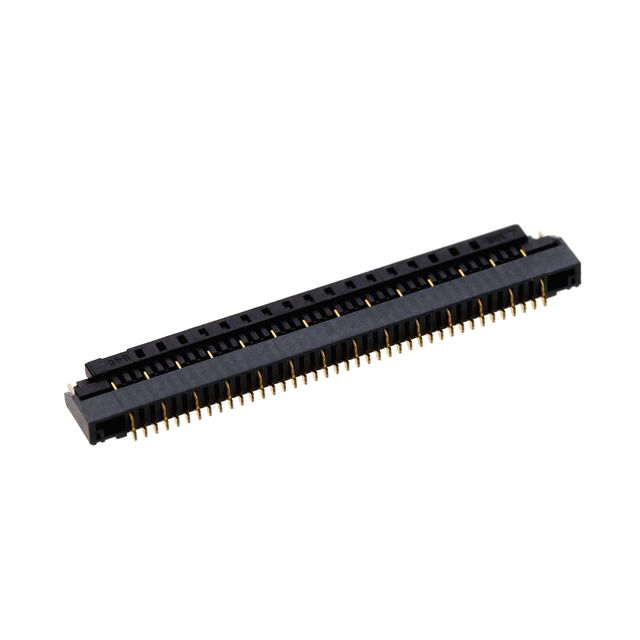

Hirose Electric Co Ltd FH55-40S-0.5SH				0.5 A	20			FPC	Contacts Bottom	UL94 V-0	Surface Mount	0.3 mm		Phosphor Bronze	Flip Lock	Gold	-55 C	85 °C	50 V	Tabbed	0.059 in	1.5 mm	Crimp	Solder Retention Zero Insertion Force (ZIF)	0.02 "	0.5 mm	Liquid Crystal Polymer (LCP)	40

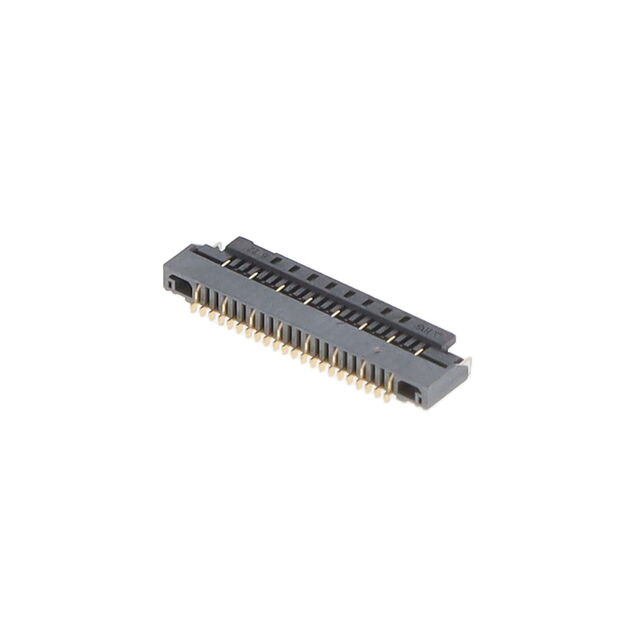

Hirose Electric Co Ltd FH55-22S-0.5SH	Black	1.25 Áin	0.03 Ám	0.5 A	20	Gray		FPC	Contacts Bottom	UL94 V-0	Right Angle Surface Mount	0.3 mm	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Flip Lock	Gold	-55 C	85 °C	50 V	Tabbed	0.059 in	1.5 mm	Solder	Solder Retention Zero Insertion Force (ZIF)	0.02 "	0.5 mm	Liquid Crystal Polymer (LCP)	22
