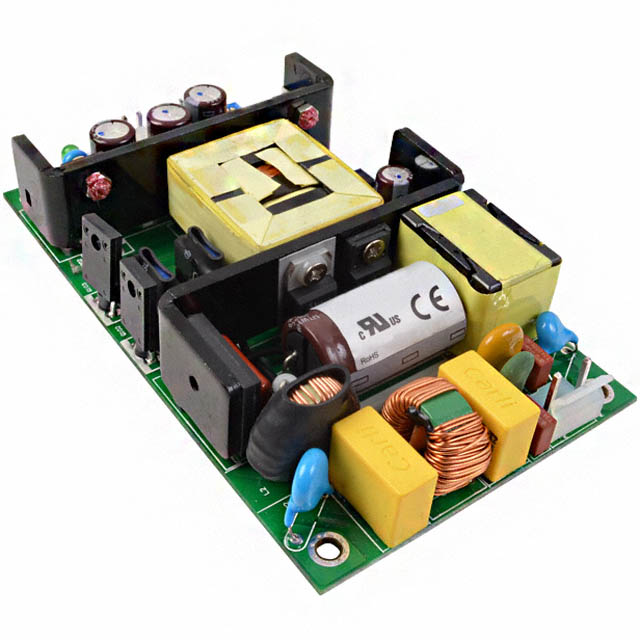

VMS-100 Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 36V 100W
| Part | Mounting Type | Voltage - Isolation | Efficiency | Current - Output 1 | Voltage - Input [Max] | Voltage - Input [Min] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Features | Power (Watts) | Number of Outputs | Applications | Minimum Load Required | Voltage - Output 1 [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Type | Standard Number | Approval Agency | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | Chassis Mount | 5656 V | 91 % | 2.8 A | 264 VAC | 90 VAC | 76.2 mm | 26.7 mm | 3 " | 127 mm | 5 " | 1.05 in | Adjustable Output PFC Remote Sense Universal Input | 100 W | 1 | Medical | 36 V | 70 °C | -25 °C | Open Frame | 55024 55032 Class A 60601-1 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4 61204-3 | CB Scheme EN FCC IEC TUV UL | ||
CUI Inc. | Chassis Mount | 5656 V | 89 % | 8.4 A | 264 VAC | 90 VAC | 76.2 mm | 26.7 mm | 3 " | 127 mm | 5 " | 1.05 in | Adjustable Output PFC Remote Sense Universal Input | 100 W | 1 | Medical | 70 °C | -25 °C | Open Frame | 55024 55032 Class A 60601-1 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4 61204-3 | CB Scheme EN FCC IEC TUV UL | 12 V | ||
CUI Inc. | Chassis Mount | 5656 V | 88 % | 11.2 A | 264 VAC | 90 VAC | 76.2 mm | 26.7 mm | 3 " | 127 mm | 5 " | 1.05 in | Adjustable Output PFC Remote Sense Universal Input | 100 W | 1 | Medical | 70 °C | -25 °C | Open Frame | 55024 55032 Class A 60601-1 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4 61204-3 | CB Scheme EN FCC IEC TUV UL | 9 V | ||
CUI Inc. | Chassis Mount | 5656 V | 89 % | 6.7 A | 264 VAC | 90 VAC | 76.2 mm | 26.7 mm | 3 " | 127 mm | 5 " | 1.05 in | Adjustable Output PFC Remote Sense Universal Input | 100 W | 1 | Medical | 70 °C | -25 °C | Open Frame | 55024 55032 Class A 60601-1 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4 61204-3 | CB Scheme EN FCC IEC TUV UL | 15 V | ||
CUI Inc. | Chassis Mount | 5656 V | 85 % | 20 A | 264 VAC | 90 VAC | 76.2 mm | 26.7 mm | 3 " | 127 mm | 5 " | 1.05 in | Adjustable Output PFC Remote Sense Universal Input | 100 W | 1 | Medical | 70 °C | -25 °C | Open Frame | 55024 55032 Class A 60601-1 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4 61204-3 | CB Scheme EN FCC IEC TUV UL | 5 V | ||
CUI Inc. | Chassis Mount | 5656 V | 91 % | 2.1 A | 264 VAC | 90 VAC | 76.2 mm | 26.7 mm | 3 " | 127 mm | 5 " | 1.05 in | Adjustable Output PFC Remote Sense Universal Input | 100 W | 1 | Medical | 70 °C | -25 °C | Open Frame | 55024 55032 Class A 60601-1 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4 61204-3 | CB Scheme EN FCC IEC TUV UL | 48 V | ||
CUI Inc. | Chassis Mount | 5656 V | 91 % | 3.6 A | 264 VAC | 90 VAC | 76.2 mm | 26.7 mm | 3 " | 127 mm | 5 " | 1.05 in | Adjustable Output PFC Remote Sense Universal Input | 100 W | 1 | Medical | 70 °C | -25 °C | Open Frame | 55024 55032 Class A 60601-1 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4 61204-3 | CB Scheme EN FCC IEC TUV UL | 28 V | ||
CUI Inc. | Chassis Mount | 5656 V | 91 % | 4.2 A | 264 VAC | 90 VAC | 76.2 mm | 26.7 mm | 3 " | 127 mm | 5 " | 1.05 in | Adjustable Output PFC Remote Sense Universal Input | 100 W | 1 | Medical | 70 °C | -25 °C | Open Frame | 55024 55032 Class A 60601-1 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4 61204-3 | EN FCC TUV UL | 24 V | ||
CUI Inc. | Chassis Mount | 5656 V | 90 % | 5.6 A | 264 VAC | 90 VAC | 76.2 mm | 26.7 mm | 3 " | 127 mm | 5 " | 1.05 in | Adjustable Output PFC Remote Sense Universal Input | 100 W | 1 | Medical | 70 °C | -25 °C | Open Frame | 55024 55032 Class A 60601-1 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4 61204-3 | EN FCC TUV UL | 18 V |
