BM20B Series

Board to Board & Mezzanine Connectors

Manufacturer: Hirose Electric Co Ltd

Catalog

Board to Board & Mezzanine Connectors

Catalog

Board to Board & Mezzanine Connectors

Part	Mounting Type	Mated Stacking Heights	Features	Contact Finish	Pitch	Pitch	Connector Type	Number of Rows [custom]	Number of Positions	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Contact Finish Thickness

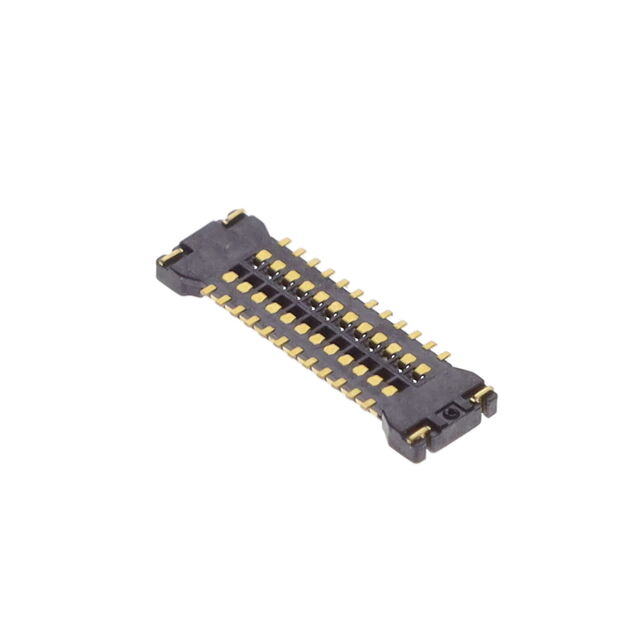

Hirose Electric Co Ltd BM20B(0.6)-24DS-0.4V(51)	Surface Mount	0.6 mm	Solder Retention	Gold	0.4 mm	0.016 in	Receptacle Center Strip Contacts	2	24	0.024 in	0.61 mm

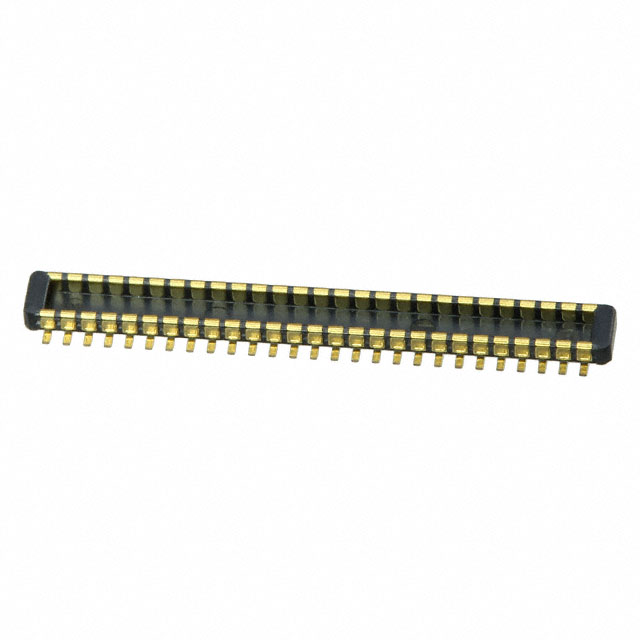

Hirose Electric Co Ltd BM20B(0.6)-50DP-0.4V(53)	Surface Mount	0.6 mm		Gold	0.4 mm	0.016 in	Header Outer Shroud Contacts	2	50	0.02 in	0.5 mm
Hirose Electric Co Ltd BM20B(0.8)-30DP-0.4V(79)
Hirose Electric Co Ltd BM20B(0.8)-20DP-0.4V(51)	Surface Mount	0.8 mm	Solder Retention	Gold	0.4 mm	0.016 in	Header Outer Shroud Contacts	2	20	0.026 "	0.65 mm
Hirose Electric Co Ltd BM20B(0.6)-60DS-0.4V(51)	Surface Mount		Solder Retention	Gold	0.4 mm	0.016 in	Receptacle Center Strip Contacts	2	60	0.024 in	0.61 mm
Hirose Electric Co Ltd BM20B(0.8)-10DP-0.4V(75)	Surface Mount	0.8 mm	Solder Retention	Gold	0.4 mm	0.016 in	Header Outer Shroud Contacts	2	10	0.026 "	0.65 mm	0.1 Ám	4 Áin

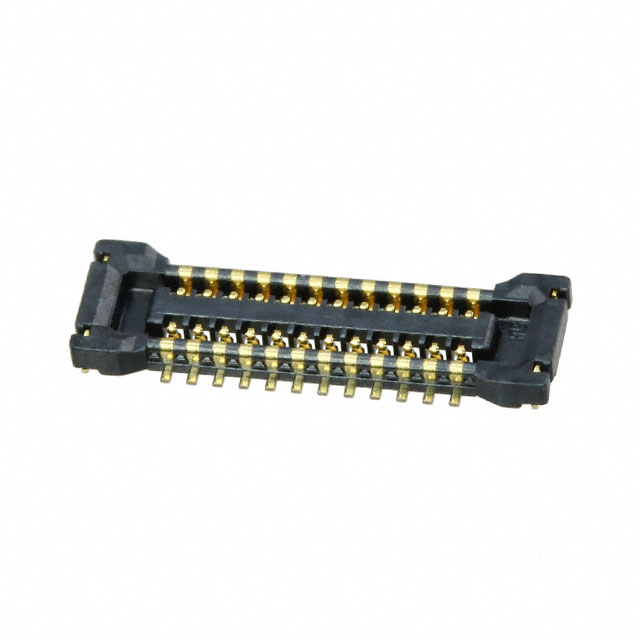

Hirose Electric Co Ltd BM20B(0.6)-24DS-0.4V(53)	Surface Mount	0.6 mm	Solder Retention	Gold	0.4 mm	0.016 in	Receptacle Center Strip Contacts	2	24	0.024 in	0.61 mm
Hirose Electric Co Ltd BM20B(0.8)-20DS-0.4V(53)	Surface Mount	0.8 mm	Solder Retention	Gold	0.4 mm	0.016 in	Receptacle Center Strip Contacts	2	20	0.031 in	0.8 mm
Hirose Electric Co Ltd BM20B(0.6)-50DP-0.4V(51)	Surface Mount	0.6 mm		Gold	0.4 mm	0.016 in	Header Outer Shroud Contacts	2	50	0.02 in	0.5 mm

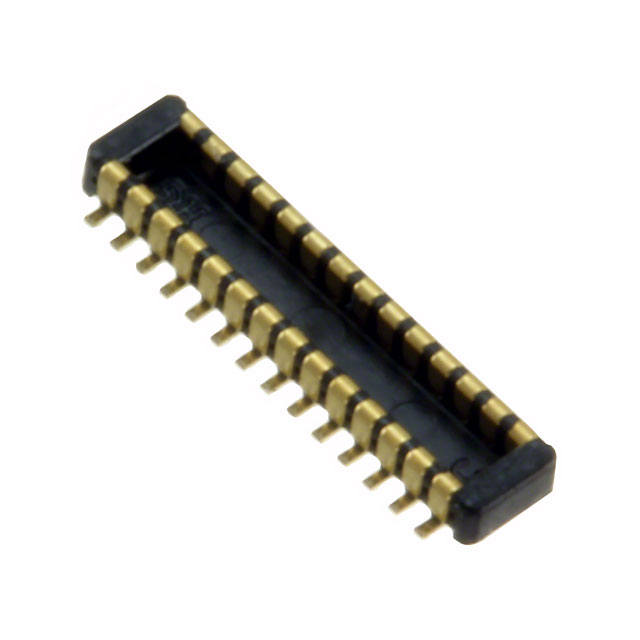

Hirose Electric Co Ltd BM20B(0.8)-24DP-0.4V(53)	Surface Mount	0.8 mm	Solder Retention	Gold	0.4 mm	0.016 in	Header Outer Shroud Contacts	2	24	0.026 "	0.65 mm
