ER8-50P Series

Catalog

CONN HDR 50POS SMD GOLD

Part	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions	Mounting Type	Features	Number of Rows [custom]	Mated Stacking Heights [Max] [z]	Mated Stacking Heights [Min] [z]	Mated Stacking Heights	Height Above Board	Height Above Board

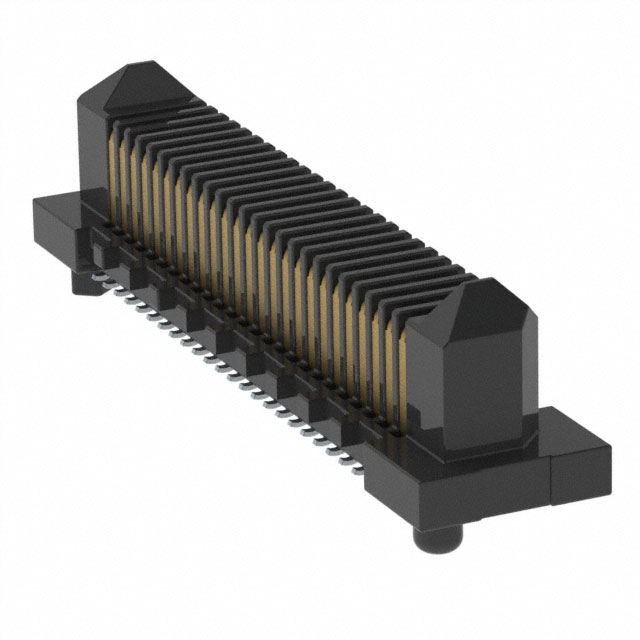

Hirose Electric Co Ltd ER8-50P-0.8SV-2H	5.95 mm	0.234 in	0.8 mm	0.031 in	Header Center Strip Contacts	30 Áin	0.76 Ám	Gold	50	Surface Mount	Board Guide	2	9 mm	7 mm

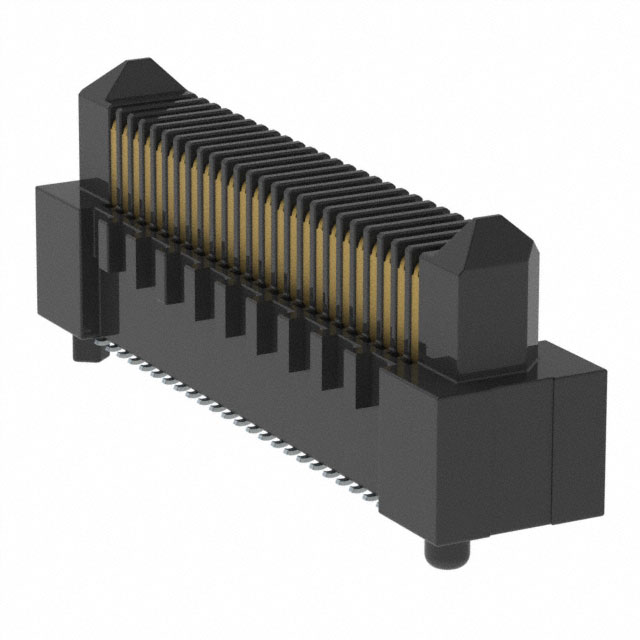

Hirose Electric Co Ltd ER8-50P-0.8SV-5H			0.8 mm	0.031 in	Header Center Strip Contacts	30 Áin	0.76 Ám	Gold	50	Surface Mount	Board Guide	2			10 mm 12 mm	8.91 mm	0.351 "
