3110MS Series

Catalog

FAN AXIAL 80X25.3MM 240VAC WIRE

Part	Current Rating (Amps)	Lifetime @ Temp.	Material - Blade	Material - Frame	Air Flow	Air Flow	Noise	Bearing Type	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Voltage - Rated	Power (Watts)	Weight	Weight	Approval Agency	Width [x]	RPM	Fan Type	Size / Dimension [z]	Size / Dimension [x]	Width [y]	Ingress Protection
NMB TECHNOLOGIES 3110MS-24W-B30-A00	45 mA	100000 Hrs	Polycarbonate (PC) Fiberglass Reinforced	Aluminum	0.672 mł/min	24 CFM	31 dB(A)	Ball	54.8 Pa	0.22 in H2O	70 °C	-10 °C	2 Wire Leads	240 VAC	6.5 W	239.95 g	0.529 lb	CE UL VDE	25.3 mm	3000 RPM	Tubeaxial	80 mm	80 mm

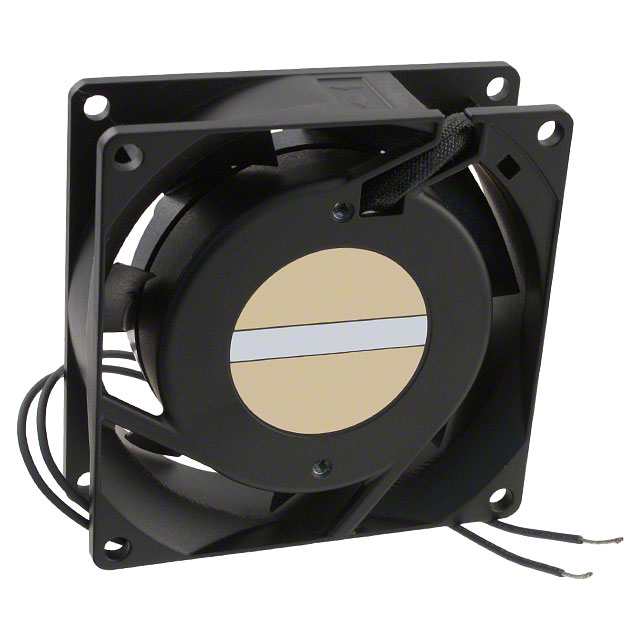

NMB TECHNOLOGIES 3110MS-23W-B30-A00	45 mA	50000 Hrs	Polycarbonate (PC) Fiberglass Reinforced	Aluminum	0.672 mł/min	24 CFM	31 dB(A)	Ball	54.8 Pa	0.22 in H2O	70 °C	-10 °C	2 Wire Leads	230 VAC	6.5 W	239.95 g	0.529 lb	CE UL VDE		3000 RPM	Tubeaxial	80 mm	80 mm	25 mm

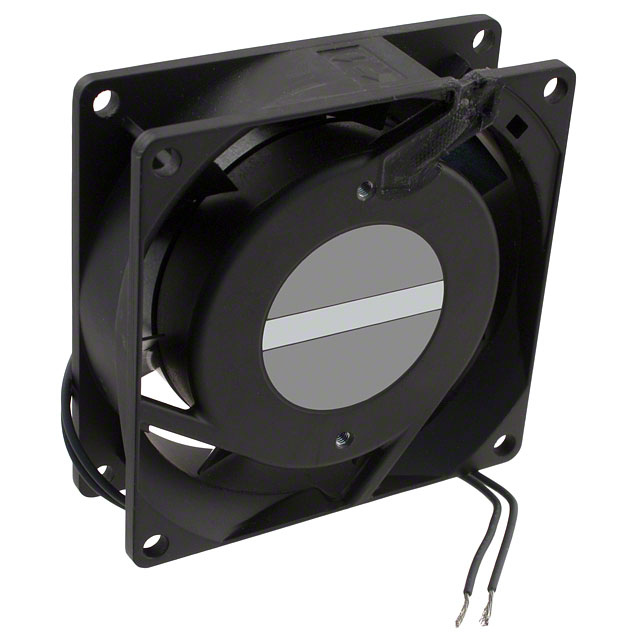

NMB TECHNOLOGIES 3110MS-12W-B30-AM0	0.09 A	50000 Hrs	Polycarbonate (PC) Fiberglass Reinforced	Aluminum	0.672 mł/min	24 CFM	31 dB(A)	Ball	54.8 Pa	0.22 in H2O	70 °C	-10 °C	2 Wire Leads	115 VAC	6.5 W	239.95 g	0.529 lb	CE UL VDE		3000 RPM	Tubeaxial	80 mm	80 mm	25 mm	IP54 - Dust Protected Water Resistant

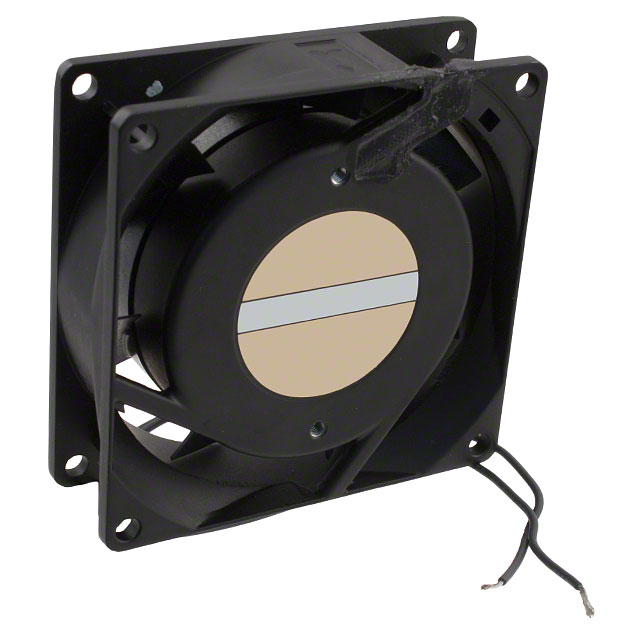

NMB TECHNOLOGIES 3110MS-23W-B30-AM0	45 mA	50000 Hrs	Polycarbonate (PC) Fiberglass Reinforced	Aluminum	0.672 mł/min	24 CFM	31 dB(A)	Ball	54.8 Pa	0.22 in H2O	70 °C	-10 °C	2 Wire Leads	230 VAC	6.5 W	239.95 g	0.529 lb	CE UL VDE		3000 RPM	Tubeaxial	80 mm	80 mm	25 mm	IP54 - Dust Protected Water Resistant

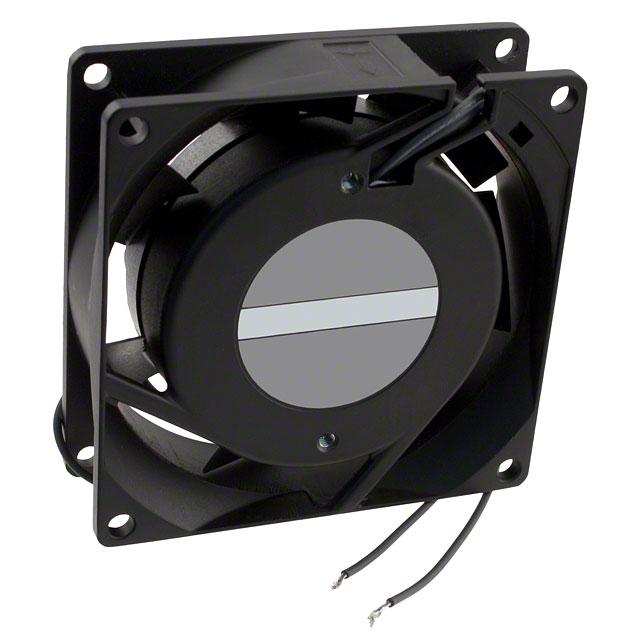

NMB TECHNOLOGIES 3110MS-12W-B30-A00	0.09 A	50000 Hrs	Polycarbonate (PC) Fiberglass Reinforced	Aluminum	0.672 mł/min	24 CFM	31 dB(A)	Ball	54.8 Pa	0.22 in H2O	70 °C	-10 °C	2 Wire Leads	115 VAC	6.5 W	239.95 g	0.529 lb	CE UL VDE		3000 RPM	Tubeaxial	80 mm	80 mm	25 mm
NMB TECHNOLOGIES 3110MS-10W-B30-B00	110 mA	100000 Hrs	Polycarbonate (PC) Fiberglass Reinforced	Aluminum	0.672 mł/min	24 CFM	31 dB(A)	Ball	54.8 Pa	0.22 in H2O	70 °C	-10 °C	2 Wire Leads	100 VAC	6.5 W	239.95 g	0.529 lb	CE UL VDE	25.3 mm	3000 RPM	Tubeaxial	80 mm	80 mm
NMB TECHNOLOGIES 3110MS-22W-B30-B00	45 mA	100000 Hrs	Polycarbonate (PC) Fiberglass Reinforced	Aluminum	0.672 mł/min	24 CFM	31 dB(A)	Ball	54.8 Pa	0.22 in H2O	70 °C	-10 °C	2 Wire Leads	220 VAC	6.5 W	239.95 g	0.529 lb	CE UL VDE	25.3 mm	3000 RPM	Tubeaxial	80 mm	80 mm
NMB TECHNOLOGIES 3110MS-20W-B30-B00	50 mA	100000 Hrs	Polycarbonate (PC) Fiberglass Reinforced	Aluminum	0.672 mł/min	24 CFM	31 dB(A)	Ball	54.8 Pa	0.22 in H2O	70 °C	-10 °C	2 Wire Leads	200 VAC	6 W	239.95 g	0.529 lb	CE UL VDE	25.3 mm	3000 RPM	Tubeaxial	80 mm	80 mm
