DF1-2 Series

Catalog

CONN SOCKET 20POS IDC 28AWG TIN

Part	Contact Finish	Wire Gauge	Number of Positions	Cable Termination	Pitch	Pitch	Features	Contact Type	Color	Mounting Type	Number of Rows	Wire Type	Connector Type	Accessory Type	Features	For Use With/Related Products	Current Rating (Amps)	Contact Material	Insulation Material	Contact Length - Mating	Contact Length - Mating	Termination	Number of Positions Loaded	Voltage Rating	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Style	Material Flammability Rating	Shrouding	Insulation Height [custom]	Insulation Height [custom]	Insulation Color	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Termination	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket	Overall Contact Length	Overall Contact Length	Insulation Height [z]	Insulation Height [z]	Note
Hirose Electric Co Ltd DF1-20S-2.5R28(05)	Tin	28 AWG	20	IDC	2.5 mm	0.098 in	Feed Through	Female Socket	Brown	Free Hanging (In-Line)	1	Discrete	Socket
Hirose Electric Co Ltd DF1-2A1.33			2											Cap (Cover)	24 AWG	DF1 Series
Hirose Electric Co Ltd DF1-2P-2.5DS(05)			2					Male Pin		Right Angle Through Hole	1		Header				3 A	Brass	Nylon Polyamide (PA)	0.177 in	4.5 mm	Solder	All	250 V	0.118 in	3 mm	Tin	39.4 µin	1 µm	85 °C	-30 ░C	Square	Board to Cable/Wire	UL94 V-0	Shrouded - 1 Wall	0.236 "	6 mm	Brown	Friction Lock	2.5 mm	0.098 in

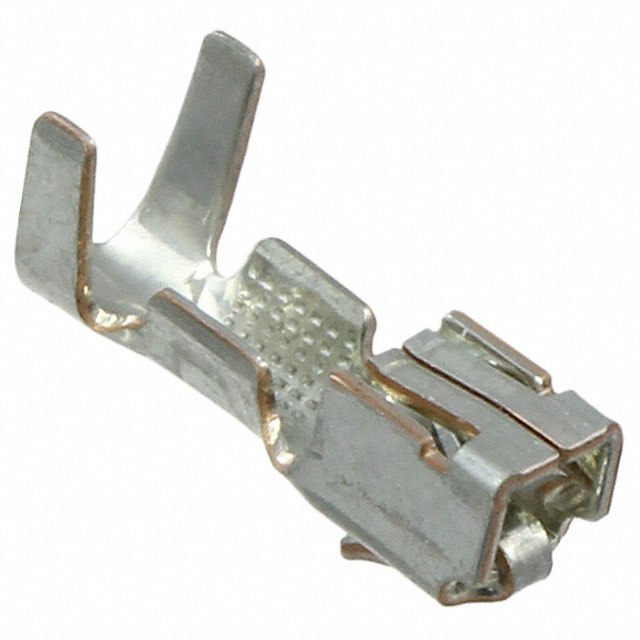

Hirose Electric Co Ltd DF1-2428SCF	Tin																																									Crimp	24 AWG	28 AWG	Socket
Hirose Electric Co Ltd DF1-20P-2.5DSA(05)			20					Male Pin		Through Hole	1		Header				3 A	Brass	Nylon Polyamide (PA)	0.177 in	4.5 mm	Solder	All	250 V	0.118 in	3 mm	Tin	39.4 µin	1 µm	85 °C	-30 ░C	Square	Board to Cable/Wire	UL94 V-0	Shrouded - 1 Wall			Brown	Friction Lock	2.5 mm	0.098 in					10 mm	0.394 in	7.5 mm	0.295 in
Hirose Electric Co Ltd DF1-20S-2.5R24(05)	Tin	24 AWG	20	IDC	2.5 mm	0.098 in	Feed Through	Female Socket	Brown	Free Hanging (In-Line)	1	Discrete	Socket

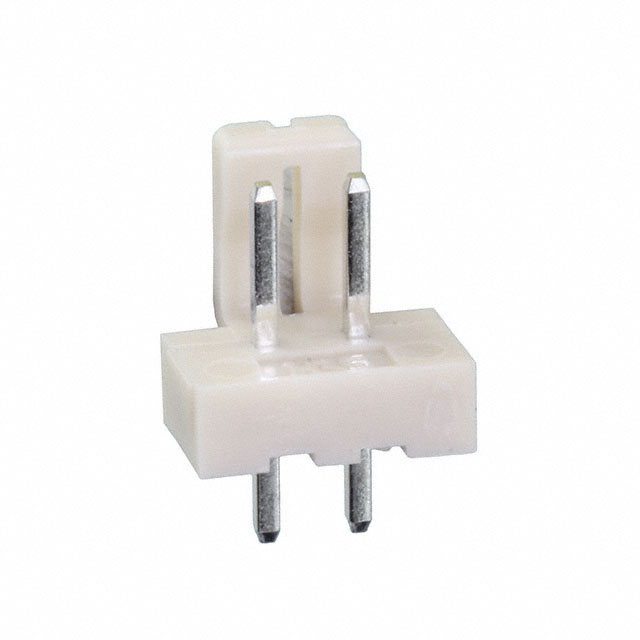

Hirose Electric Co Ltd DF1-2P-2.5DSA(05)			2					Male Pin		Through Hole	1		Header				3 A	Brass	Nylon Polyamide (PA)	0.177 in	4.5 mm	Solder	All	250 V	0.118 in	3 mm	Tin	39.4 µin	1 µm	85 °C	-30 ░C	Square	Board to Cable/Wire	UL94 V-0	Shrouded - 1 Wall			Brown	Friction Lock	2.5 mm	0.098 in					10 mm	0.394 in	7.5 mm	0.295 in
Hirose Electric Co Ltd DF1-20S-2.5C			20		2.5 mm	0.098 in		Female Socket	Brown	Free Hanging (In-Line)	1		Socket						Nylon Polyamide (PA)											85 °C	-30 ░C											Crimp								Contacts Not Included
Hirose Electric Co Ltd DF1-2S-2.5R24(05)	Tin	24 AWG	2	IDC	2.5 mm	0.098 in	Feed Through	Female Socket	Brown	Free Hanging (In-Line)	1	Discrete	Socket
Hirose Electric Co Ltd DF1-20S-2.5R26(05)	Tin	26 AWG	20	IDC	2.5 mm	0.098 in	Feed Through	Female Socket	Brown	Free Hanging (In-Line)	1	Discrete	Socket
