FL-R Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

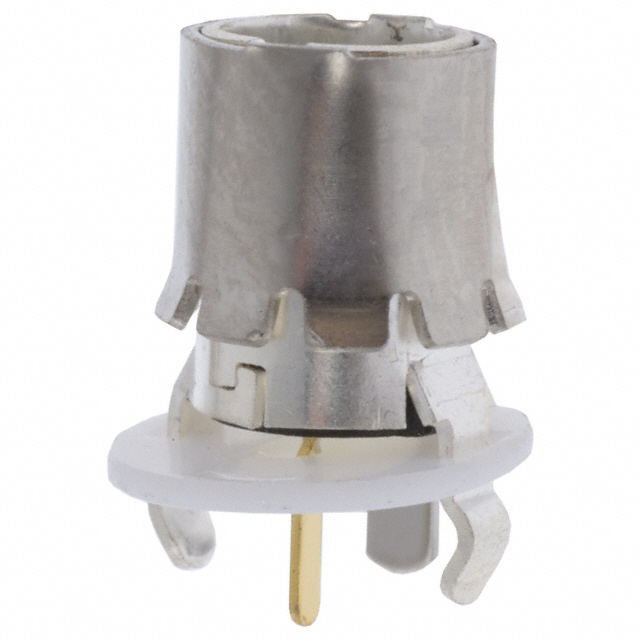

CONN RF COAX RCPT PCB STR
| Part | Mating Cycles | Body Finish | Body Material | Dielectric Material | Center Contact Plating | Frequency - Max [Max] | Contact Termination | Fastening Type | Center Contact Material | Mounting Type | Impedance | Connector Type | Housing Color | Number of Ports | Shield Termination | Connector Style | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 50 | Silver | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Gold | 1 GHz | Solder | Snap-On | Phosphor Bronze | Through Hole | 50 Ohms | Receptacle Female Socket | Silver | 1 | Press-Fit | FL | ||
 Hirose Electric Co Ltd | 50 | Nickel | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Gold | 1 GHz | Solder | Snap-On | Phosphor Bronze | Through Hole | 50 Ohms | Receptacle Female Socket | Silver | 1 | Press-Fit | FL | 85 °C | -35 °C |
Hirose Electric Co Ltd | 50 | Silver | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Gold | 1 GHz | Solder | Snap-On | Phosphor Bronze | Through Hole | 50 Ohms | Receptacle Female Socket | Silver | 1 | Press-Fit | FL | ||
 Hirose Electric Co Ltd | 50 | Nickel | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Gold | 1 GHz | Solder | Snap-On | Phosphor Bronze | Through Hole | 50 Ohms | Receptacle Female Socket | Silver | 1 | Press-Fit | FL | 85 °C | -35 °C |
Hirose Electric Co Ltd | 50 | Silver | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Gold | 1 GHz | Solder | Snap-On | Phosphor Bronze | Through Hole | 50 Ohms | Receptacle Female Socket | Silver | 1 | Press-Fit | FL |
