RM15WTPZA Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN PLUG FMALE 3P SOLDER CUP
| Part | Contact Material | Mounting Type | Ingress Protection | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Shell Size - Insert [custom] | Contact Finish - Mating | Features | Shell Material | Insert Material | Color | Voltage Rating | Current Rating (Amps) | Material Flammability Rating | Backshell Material, Plating | Shell Finish | Primary Material | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Number of Positions | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric Co Ltd | Phosphor Bronze | Free Hanging (In-Line) | IP67/IP68 | 118.1 µin | 3 µm | Threaded | 15 | Silver | Backshell Coupling Nut | Zinc Alloy | Diallyl Phthalate (DAP) | Silver | 500 VAC 700 VDC | 10 A | UL94 V-0 | Chrome Zinc Alloy | Chrome | Metal | Plug Female Sockets | 85 °C | -25 °C | Keyed | ||
Hirose Electric Co Ltd | Phosphor Bronze | Free Hanging (In-Line) | IP67/IP68 | 8 µin | 0.203 µm | Threaded | 15 | Gold | Backshell Coupling Nut | Zinc Alloy | Diallyl Phthalate (DAP) | Silver | 500 VAC 700 VDC | 10 A | UL94 V-0 | Chromate | Metal | Plug Female Sockets | 85 °C | -25 °C | Keyed | |||
 Hirose Electric Co Ltd | Copper Alloy | Free Hanging (In-Line) | IP67/IP68 | 196.9 µin | 5 µm | Threaded | 15 | Silver | Backshell Coupling Nut | Zinc Alloy | Diallyl Phthalate (DAP) | Silver | 350 VAC 490 VDC | 5 A | UL94 V-0 | Chrome Zinc Alloy | Chrome | Metal | Plug Female Sockets | 85 °C | -25 °C | Keyed | 12 | |
Hirose Electric Co Ltd | Copper Alloy | Free Hanging (In-Line) | IP67/IP68 | 78.7 µin | 2 µm | Threaded | 15 | Silver | Backshell Coupling Nut | Zinc Alloy | Diallyl Phthalate (DAP) | Silver | 600 VAC 840 VDC | 10 A | UL94 V-0 | Chrome Zinc Alloy | Chrome | Metal | Plug Male Pins | 85 °C | -25 °C | Keyed | 2 | |
Hirose Electric Co Ltd | Free Hanging (In-Line) | IP67/IP68 | Threaded | 15 | Backshell Coupling Nut | Brass Zinc Alloy | Silver | 350 VAC 490 VDC | 5 A | UL94 V-0 | Metal | Plug Male Pins | 85 °C | -25 °C | Keyed | 12 | Unshielded | |||||||
Hirose Electric Co Ltd | Copper Alloy | Free Hanging (In-Line) | IP67/IP68 | Threaded | 15 | Gold | Backshell Coupling Nut | Brass Zinc Alloy | Polyphenylene Sulfide (PPS) | Silver | 500 VAC 700 VDC | 10 A | UL94 V-0 | Chromate | Metal | Plug Female Sockets | 85 °C | -25 °C | Keyed | 4 | Unshielded | |||

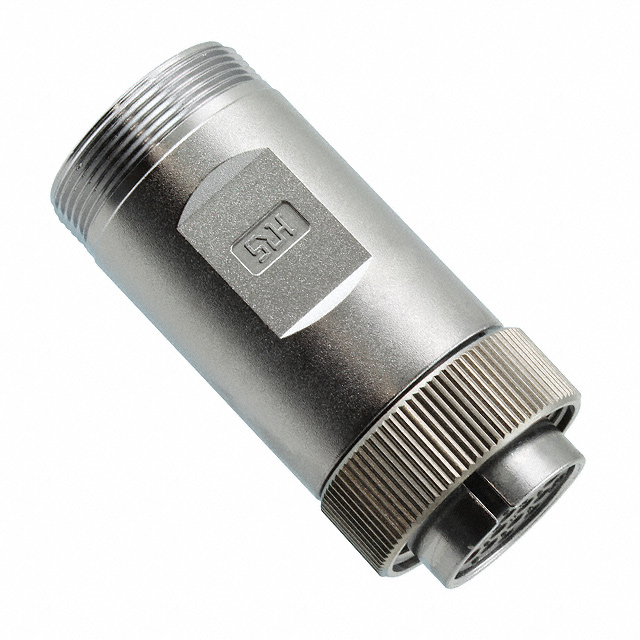

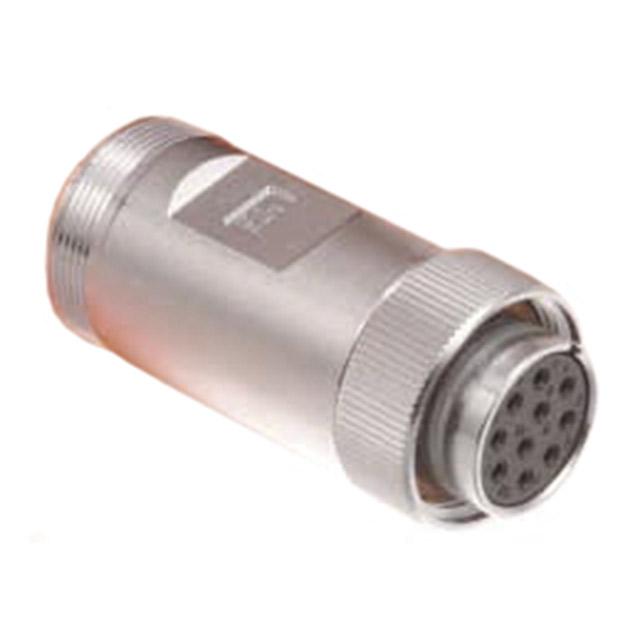

 Hirose Electric Co Ltd | Copper Alloy | Free Hanging (In-Line) | IP67/IP68 | 196.9 µin | 5 µm | Threaded | 15 | Silver | Backshell Coupling Nut | Zinc Alloy | Diallyl Phthalate (DAP) | Silver | 350 VAC 490 VDC | 5 A | UL94 V-0 | Chrome Zinc Alloy | Chrome | Metal | Plug Female Sockets | 85 °C | -25 °C | Keyed | 10 | |
Hirose Electric Co Ltd | Phosphor Bronze | Free Hanging (In-Line) | IP67/IP68 | Threaded | 15 | Gold | Backshell Coupling Nut | Zinc Alloy | Diallyl Phthalate (DAP) | Silver | 500 VAC 700 VDC | 5 A | UL94 V-0 | Chrome Zinc Alloy | Chrome | Metal | Plug Male Pins | 85 °C | -25 °C | Keyed | 8 | Unshielded | ||
 Hirose Electric Co Ltd | Phosphor Bronze | Free Hanging (In-Line) | IP67/IP68 | 8 µin | 0.203 µm | Threaded | 15 | Gold | Backshell Coupling Nut | Copper Alloy | Diallyl Phthalate (DAP) | Silver | 350 VAC 490 VDC | 5 A | UL94 V-0 | Chrome Zinc Alloy | Chrome | Metal | Plug Male Pins | 85 °C | -25 °C | Keyed | 12 | |

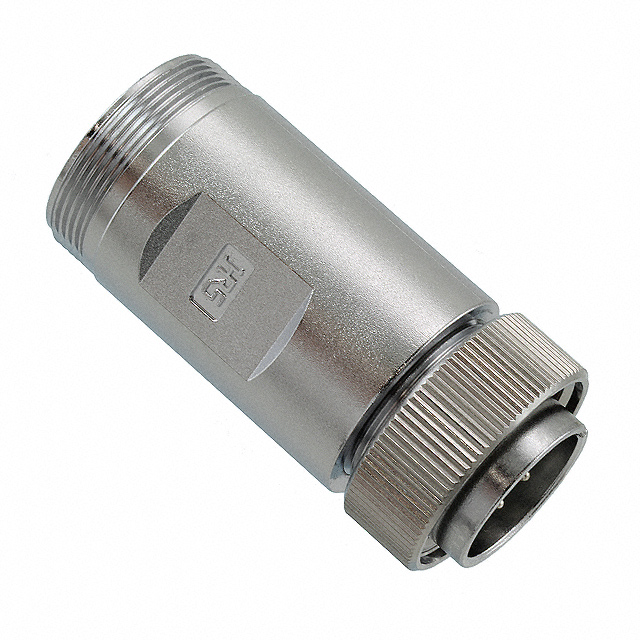

Hirose Electric Co Ltd | Phosphor Bronze | Free Hanging (In-Line) | IP67/IP68 | 8 µin | 0.203 µm | Threaded | 15 | Gold | Backshell Coupling Nut | Copper Alloy | Diallyl Phthalate (DAP) | Silver | 350 VAC 490 VDC | 5 A | UL94 V-0 | Chrome Zinc Alloy | Chrome | Metal | Plug Male Pins | 85 °C | -25 °C | Keyed | 10 |
