HCF4070 Series

Catalog

XOR GATE 4-ELEMENT 2-IN CMOS AUTOMOTIVE AEC-Q100 14-PIN SOIC T/R

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Current - Quiescent (Max) [Max]	Grade	Current - Output High, Low	Supplier Device Package	Qualification	Max Propagation Delay @ V, Max CL	Logic Type	Number of Circuits	Number of Inputs	Mounting Type	Input Logic Level - High [Max]	Input Logic Level - High [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Input Logic Level - Low [Max]	Input Logic Level - Low [Min]	Package / Case	Package / Case
STMicroelectronics HCF4070YM013TR	125 °C	-40 C	0.154 in 3.9 mm	14-SOIC	20 µA	Automotive	6.8 mA	14-SO	AEC-Q100	100 ns	XOR (Exclusive OR)	4	2	Surface Mount	11 V	3.5 V	20 V	3 V	4 V	1.5 V

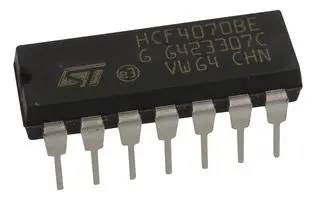

STMicroelectronics HCF4070BEY	125 °C	-55 C		14-DIP	20 µA		6.8 mA	14-DIP		100 ns	XOR (Exclusive OR)	4	2	Through Hole	11 V	3.5 V	20 V	3 V	4 V	1.5 V	0.3 in	7.62 mm
