T16-300 Series

Catalog

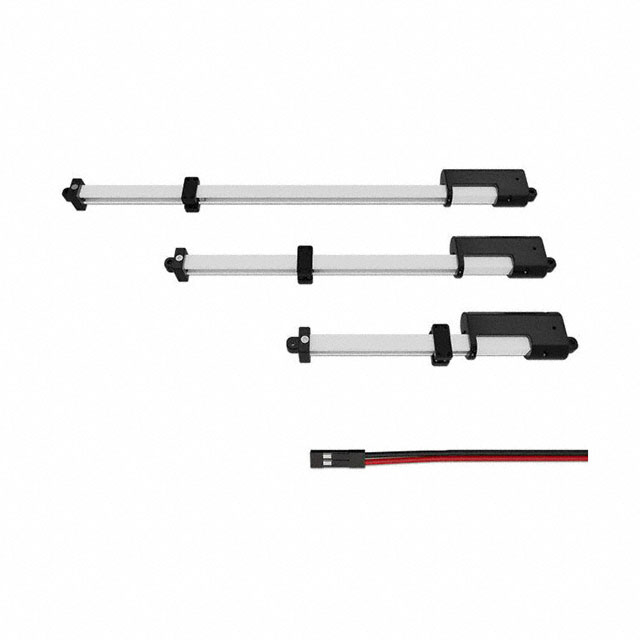

T16-S MICRO LINEAR ACTUATOR

Part	Speed	Speed	Type	Features	Motor Type	Load Force (Dynamic)	Load Force (Dynamic)	Construction	Load Force (Static)	Load Force (Static)	Accuracy	Gear Reduction Ratio	Stroke Length	Stroke Length	Duty Cycle	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Feedback Type
Actuonix Motion Devices Inc T16-300-64-12-S	18 mm/s	0.71 in/s	Linear Actuator	Limit Switches	Brushed	20.23 lbf	90 N	Ball Screw	122.4 lbf	500 N	1.2 mm	64	300 mm	11.811 in	20 %	50 °C	-10 °C	12 VDC

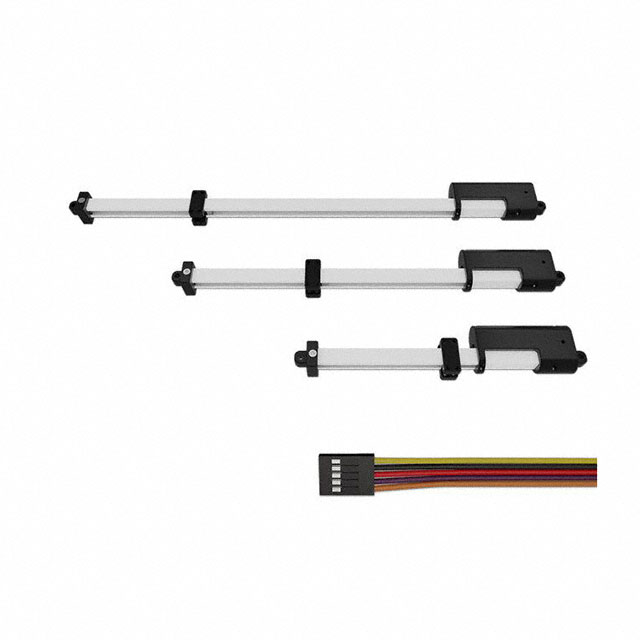

Actuonix Motion Devices Inc T16-300-64-12-P	18 mm/s	0.71 in/s	Linear Actuator		Brushed	20.23 lbf	90 N	Ball Screw	122.4 lbf	500 N	1.2 mm	64	300 mm	11.811 in	20 %	50 °C	-10 °C	12 VDC	Potentiometer
Actuonix Motion Devices Inc T16-300-22-12-S	46 mm/s	1.81 in/s	Linear Actuator	Limit Switches	Brushed	11.24 lbf	50 N	Ball Screw	122.4 lbf	500 N	1.2 mm	22	300 mm	11.811 in	20 %	50 °C	-10 °C	12 VDC
Actuonix Motion Devices Inc T16-300-256-12-P	4.8 mm/s	0.19 in/s	Linear Actuator		Brushed	67.44 lbf	300 N	Ball Screw	122.4 lbf	500 N	1.2 mm	256	300 mm	11.811 in	20 %	50 °C	-10 °C	12 VDC	Potentiometer
Actuonix Motion Devices Inc T16-300-256-12-S	4.8 mm/s	0.19 in/s	Linear Actuator	Limit Switches	Brushed	67.44 lbf	300 N	Ball Screw	122.4 lbf	500 N	1.2 mm	256	300 mm	11.811 in	20 %	50 °C	-10 °C	12 VDC
Actuonix Motion Devices Inc T16-300-22-12-P	46 mm/s	1.81 in/s	Linear Actuator		Brushed	11.24 lbf	50 N	Ball Screw	122.4 lbf	500 N	1.2 mm	22	300 mm	11.811 in	20 %	50 °C	-10 °C	12 VDC	Potentiometer
