HR30 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN PLUG MALE 6P GOLD SLDR CUP
| Part | Applications | Contact Material | Insert Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Backshell Material, Plating | Shell Size - Insert | Shell Material | Current Rating (Amps) | Color | Contact Finish - Mating | Voltage Rating | Fastening Type | Features | Orientation | Connector Type | Material Flammability Rating | Number of Positions | Mounting Type | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Primary Material | For Use With/Related Products | Accessory Type | Cable Opening [Max] | Note | Contact Type | Type | Includes | Mounting Feature | Housing Color | Shielding | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

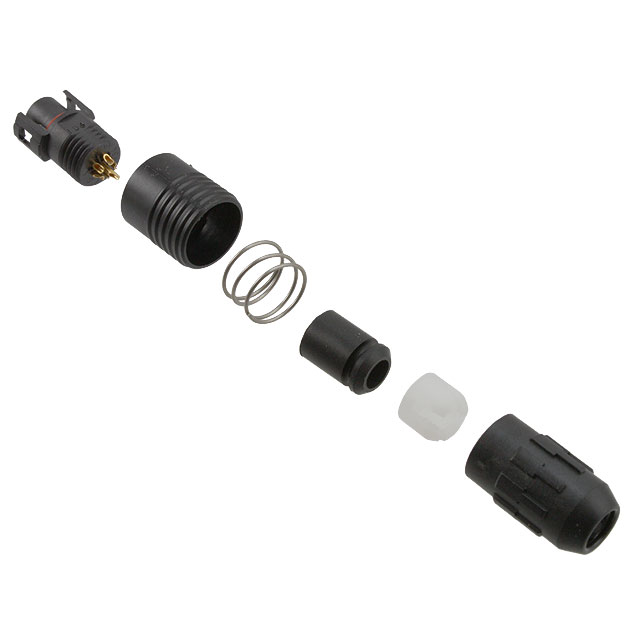

 Hirose Electric Co Ltd | Industrial Marine Medical | Brass | Polyphenylene Sulfide (PPS) | 8 µin | 0.203 µm | Polybutylene Terephthalate (PBT) | 6 | Polybutylene Terephthalate (PBT) | 2 A | Black | Gold | 100 VAC 140 VDC | Push-Pull | Backshell Strain Relief | Keyed | Plug Male Pins | UL94 V-0 | 6 | Free Hanging (In-Line) | 4.3 mm | 3.5 mm | 0.138 " | 0.169 " | 85 °C | -25 °C | IP67/IP68 | Plastic | |||||||||||

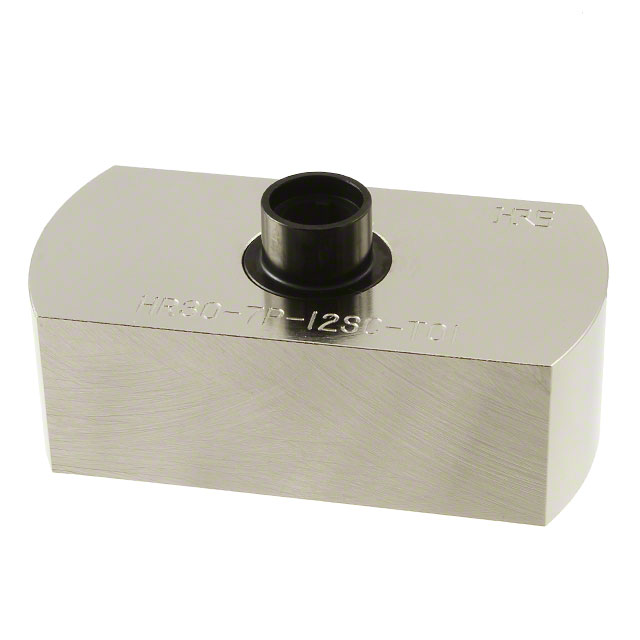

 Hirose Electric Co Ltd | Circular Connectors | Termination Fixture | ||||||||||||||||||||||||||||||||||||

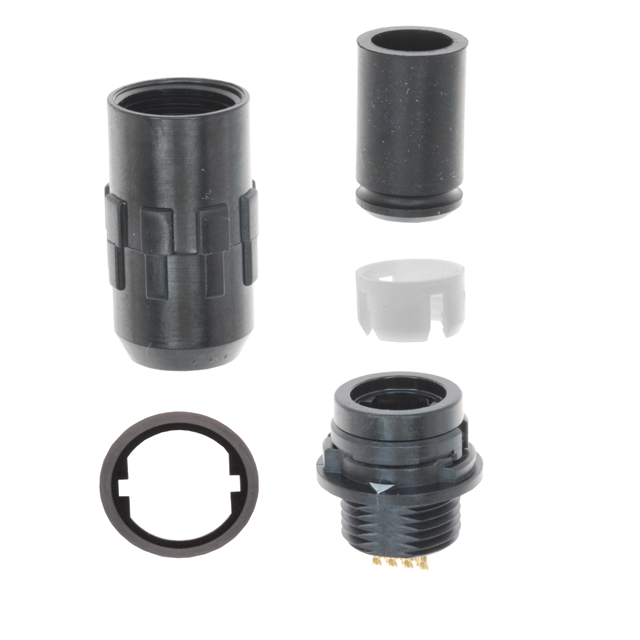

 Hirose Electric Co Ltd | Industrial Marine Medical | Copper Alloy | Polyphenylene Sulfide (PPS) | 8 µin | 0.203 µm | Polyphenylene Sulfide (PPS) | 7 | Polyphenylene Sulfide (PPS) | 2 A | Black | Gold | 30 VAC 42 VDC | Push-Pull | Backshell Strain Relief | Keyed | Jack Male Pins | UL94 V-0 | 12 | Free Hanging (In-Line) | 6.2 mm | 0.244 in | 0.276 " | 85 °C | -25 °C | IP67/IP68 | Plastic | 7 mm | |||||||||||

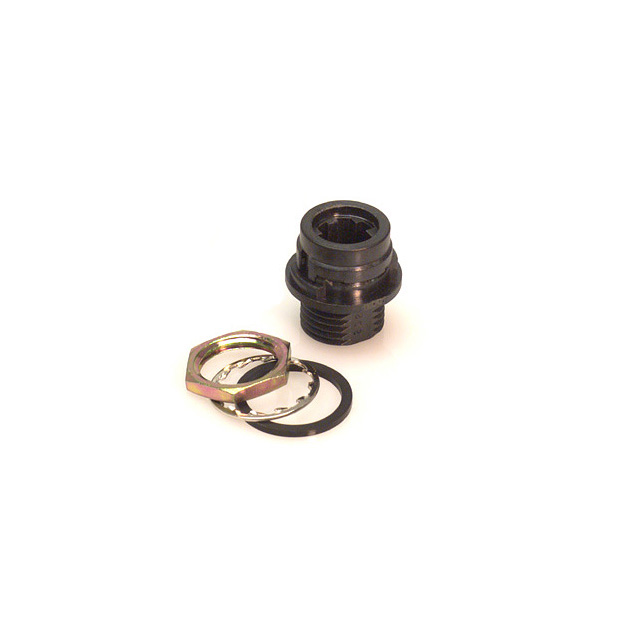

 Hirose Electric Co Ltd | Polyphenylene Sulfide (PPS) | 7 | Polyphenylene Sulfide (PPS) | Push-Pull | Keyed | Receptacle Housing | UL94 V-0 | 12 | Panel Mount | 85 °C | -25 °C | IP67/IP68 | Contacts Not Included | Crimp | For Male Pins | 1 Connector 1 Gasket 1 Lockwasher 1 Nut | Bulkhead - Rear Side Nut | Black | Unshielded | Square | ||||||||||||||||||

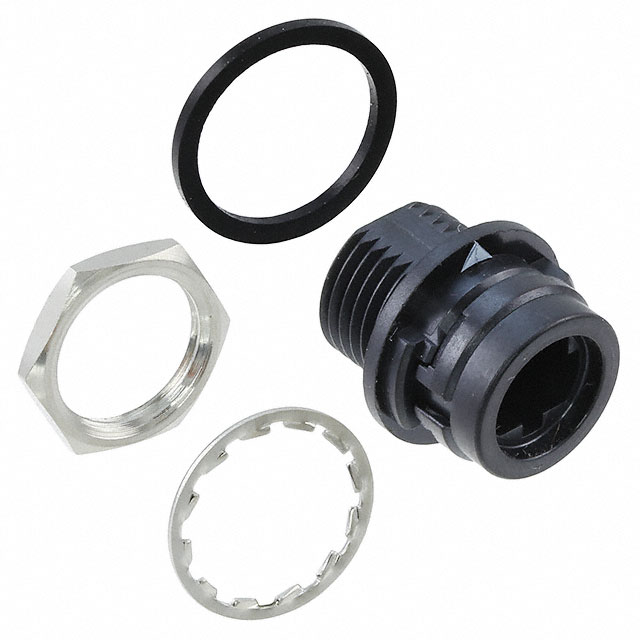

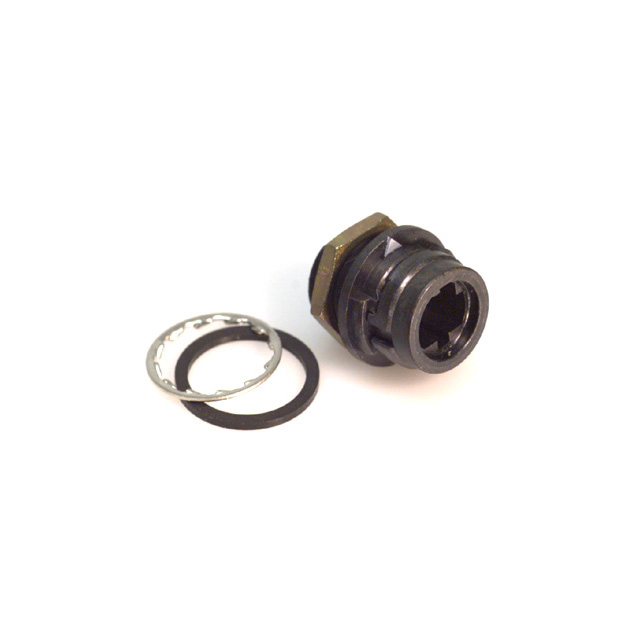

 Hirose Electric Co Ltd | Polyphenylene Sulfide (PPS) | 7 | Polyphenylene Sulfide (PPS) | Push-Pull | Keyed | Receptacle Housing | UL94 V-0 | 10 | Panel Mount | 85 °C | -25 °C | IP67/IP68 | Contacts Not Included | Crimp | For Male Pins | 1 Connector 1 Gasket 1 Lockwasher 1 Nut | Bulkhead - Rear Side Nut | Black | Unshielded | Square | ||||||||||||||||||
 Hirose Electric Co Ltd | Polyphenylene Sulfide (PPS) | 7 | Polyphenylene Sulfide (PPS) | Push-Pull | Keyed | Receptacle Housing | UL94 V-0 | 10 | Panel Mount | 85 °C | -25 °C | IP67/IP68 | Contacts Not Included | Crimp | For Male Pins | 1 Connector 1 Gasket 1 Lockwasher 1 Nut | Bulkhead - Rear Side Nut | Black | Unshielded | Square | ||||||||||||||||||
 Hirose Electric Co Ltd | ||||||||||||||||||||||||||||||||||||||
Hirose Electric Co Ltd | Polyphenylene Sulfide (PPS) | 7 | Polyphenylene Sulfide (PPS) | Push-Pull | Keyed | Receptacle Housing | UL94 V-0 | 12 | Panel Mount | 85 °C | -25 °C | IP67/IP68 | Contacts Not Included | Crimp | For Male Pins | 1 Connector 1 Gasket 1 Lockwasher 1 Nut | Bulkhead - Rear Side Nut | Black | Unshielded | Square | ||||||||||||||||||

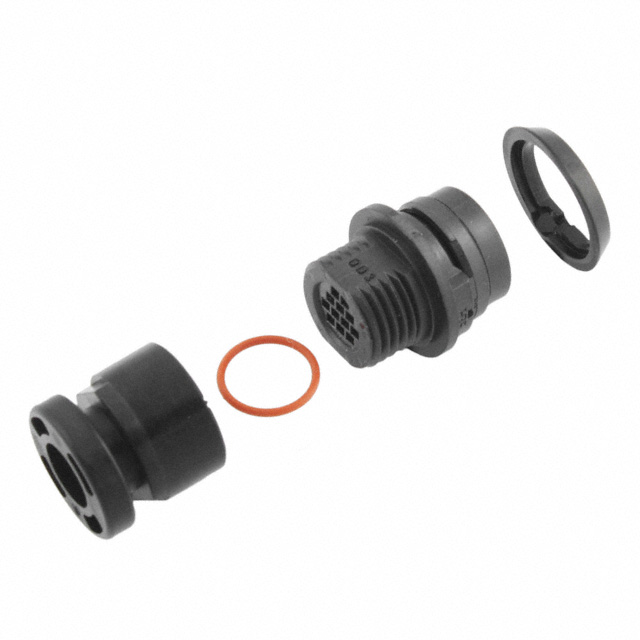

 Hirose Electric Co Ltd | Polyphenylene Sulfide (PPS) | 7 | Polyphenylene Sulfide (PPS) | Push-Pull | Backshell Strain Relief | Keyed | Jack Housing | UL94 V-0 | 12 | Free Hanging (In-Line) | 85 °C | -25 °C | IP67/IP68 | Contacts Not Included | Crimp | For Male Pins | 1 Backshell 1 Connector 1 Nut 1 O-Ring | Black | Unshielded | Square | ||||||||||||||||||

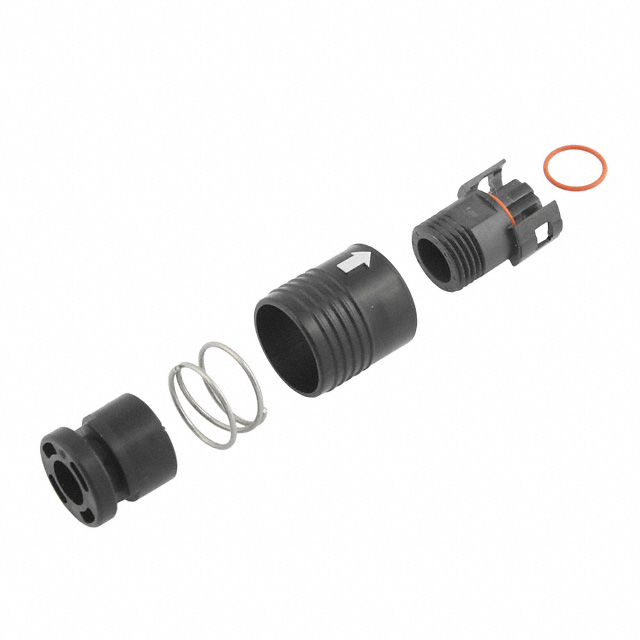

 Hirose Electric Co Ltd | Polyphenylene Sulfide (PPS) | 7 | Polyphenylene Sulfide (PPS) | Push-Pull | Backshell Strain Relief | Keyed | Plug Housing | UL94 V-0 | 12 | Free Hanging (In-Line) | 85 °C | -25 °C | IP67/IP68 | Contacts Not Included | Crimp | For Female Sockets | 1 Backshell 1 Spring 4 pcs - 2 pc Connector | Black | Unshielded | Square |
