TF29 Series

Catalog

CONN FFC 9POS 0.40MM SMD

Part	Mating Cycles	Actuator Color	Housing Color	Current Rating (Amps)	FFC, FCB Thickness	Connector/Contact Type	Locking Feature	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Mounting Type	Pitch	Pitch	Flat Flex Type	Actuator Material	Contact Material	Housing Material	Height Above Board [z]	Height Above Board [z]	Voltage Rating	Contact Finish	Material Flammability Rating	Termination	Cable End Type	Features
Hirose Electric Co Ltd TF29-9S-0.4SH(800)	20	Black	Beige	0.5 A	0.12 mm	Contacts Bottom	Backlock Rotary Lock	-55 C	85 °C	9	Right Angle Surface Mount	0.4 mm	0.016 in	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free	Phosphor Bronze	Liquid Crystal Polymer (LCP) Halogen Free	0.75 mm	0.03 in	50 V	Gold	UL94 V-0	Solder	Notched Tapered

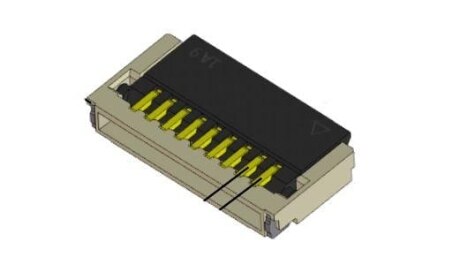

Hirose Electric Co Ltd TF29-13S-0.4SH(800)	20	Black	Beige	0.5 A	0.12 mm	Contacts Bottom	Backlock Rotary Lock	-55 C	85 °C	13	Right Angle Surface Mount	0.4 mm	0.016 in	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free	Phosphor Bronze	Liquid Crystal Polymer (LCP) Halogen Free	0.75 mm	0.03 in	50 V	Gold	UL94 V-0	Solder	Notched Tapered

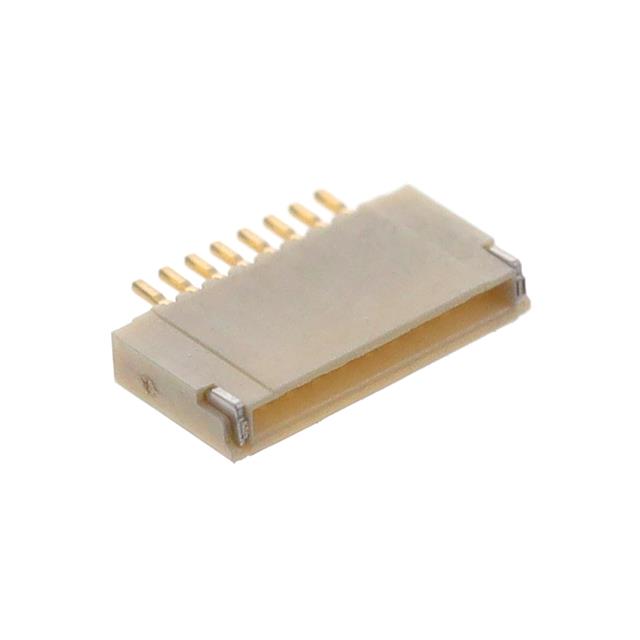

Hirose Electric Co Ltd TF29-8S-0.4SH(800)	20	Black	Beige	0.5 A	0.12 mm	Contacts Bottom	Backlock Flip Lock	-55 C	85 °C	8	Right Angle Surface Mount	0.4 mm	0.016 in	FPC	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Liquid Crystal Polymer (LCP)	0.75 mm	0.03 in	50 V	Gold	UL94 V-0	Solder	Notched	Solder Retention
