DF63 Series

Catalog

CONN HEADER R/A 3POS 3.96MM

Part	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Material	Features	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Type	Contact Finish - Post	Contact Shape	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Insulation Color	Fastening Type	Mounting Type	Contact Finish - Mating	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Style	Voltage Rating	Number of Rows	Material Flammability Rating	Termination	Insulation Material	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Note	Contact Termination	Color	Pitch	Pitch
Hirose Electric Co Ltd DF63M-3P-3.96DS(01)	All	3.96 mm	0.156 in	Brass	Board Guide Glow Wire Compliant	-55 C	105 ░C	0.354 in	9 mm	Male Pin	Tin	Square	0.138 in	3.5 mm	Varies by Wire Gauge	Black	Latch Holder	Right Angle Through Hole	Gold	Header	8 µin	0.203 µm	Shrouded - 4 Wall	Board to Cable/Wire	600 VAC	1	UL94 V-0	Solder	Polybutylene Terephthalate (PBT) Glass Filled
Hirose Electric Co Ltd DF63-4P-3.96DSA	All	3.96 mm	0.156 in	Brass	Board Guide	-55 C	105 ░C	0.394 "	10 mm	Male Pin	Tin	Square			Varies by Wire Gauge	Black	Latch Holder	Through Hole		Header			Shrouded - 4 Wall	Board to Cable/Wire	600 VAC	1	UL94 V-0	Solder	Polybutylene Terephthalate (PBT) Glass Filled	4	3.81 mm	0.15 in
Hirose Electric Co Ltd DF63M-2P-7.92DSA(01)	All	7.92 mm	0.312 in	Brass	Board Guide Glow Wire Compliant	-55 C	105 ░C	0.394 "	10 mm	Male Pin	Tin	Square	0.138 in	3.5 mm	Varies by Wire Gauge	Black	Latch Holder	Through Hole	Gold	Header	8 µin	0.203 µm	Shrouded - 4 Wall	Board to Cable/Wire	600 VAC	1	UL94 V-0	Solder	Polybutylene Terephthalate (PBT) Glass Filled	2			39.4 çin	1 çm
Hirose Electric Co Ltd DF63M-1P-3.96DS	All			Brass	Board Guide Glow Wire Compliant	-55 C	105 ░C	0.354 in	9 mm	Male Pin	Tin	Square	0.138 in	3.5 mm	Varies by Wire Gauge	Black	Latch Holder	Right Angle Through Hole		Header			Shrouded - 4 Wall	Board to Cable/Wire	600 VAC	1	UL94 V-0	Solder	Polybutylene Terephthalate (PBT) Glass Filled	1			39.4 çin	1 çm	39.4 µin	1 µm
Hirose Electric Co Ltd DF63-2P-7.92DSA(01)	All	7.92 mm	0.312 in	Brass	Board Guide	-55 C	105 ░C	0.394 "	10 mm	Male Pin	Tin	Square			Varies by Wire Gauge	Black	Latch Holder	Through Hole	Gold	Header	8 µin	0.203 µm	Shrouded - 4 Wall	Board to Cable/Wire	600 VAC	1	UL94 V-0	Solder	Polybutylene Terephthalate (PBT) Glass Filled	2	3.81 mm	0.15 in	39.4 çin	1 çm
Hirose Electric Co Ltd DF63MA-4EP-3.96C						-55 C	105 ░C			Male Pin							Latch Holder	Free Hanging (In-Line)		Plug						1			Polybutylene Terephthalate (PBT)	4							Contacts Not Included	Crimp	Black	3.96 mm	0.156 in
Hirose Electric Co Ltd DF63-3P-7.92DSA(01)	All	7.92 mm	0.312 in	Brass	Board Guide	-55 C	105 ░C	0.394 "	10 mm	Male Pin	Tin	Square			Varies by Wire Gauge	Black	Latch Holder	Through Hole	Gold	Header	8 µin	0.203 µm	Shrouded - 4 Wall	Board to Cable/Wire	600 VAC	1	UL94 V-0	Solder	Polybutylene Terephthalate (PBT) Glass Filled		3.81 mm	0.15 in	39.4 çin	1 çm
Hirose Electric Co Ltd DF63M-5P-3.96DS(01)	All	3.96 mm	0.156 in	Brass	Board Guide Glow Wire Compliant	-55 C	105 ░C	0.354 in	9 mm	Male Pin	Tin	Square	0.138 in	3.5 mm	Varies by Wire Gauge	Black	Latch Holder	Right Angle Through Hole	Gold	Header	8 µin	0.203 µm	Shrouded - 4 Wall	Board to Cable/Wire	600 VAC	1	UL94 V-0	Solder	Polybutylene Terephthalate (PBT) Glass Filled	5			39.4 çin	1 çm

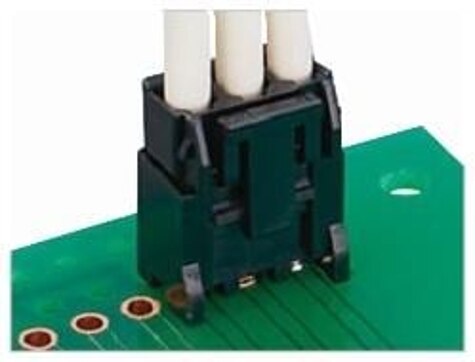

Hirose Electric Co Ltd DF63M-2P-3.96DSA(01)	All	3.96 mm	0.156 in	Brass	Board Guide Glow Wire Compliant	-55 C	105 ░C	0.394 "	10 mm	Male Pin	Tin	Square	0.138 in	3.5 mm	Varies by Wire Gauge	Black	Latch Holder	Through Hole	Gold	Header	8 µin	0.203 µm	Shrouded - 4 Wall	Board to Cable/Wire	600 VAC	1	UL94 V-0	Solder	Polybutylene Terephthalate (PBT) Glass Filled	2			39.4 çin	1 çm
Hirose Electric Co Ltd DF63R-5P-3.96DSA(01)	All	3.96 mm	0.156 in	Brass	Board Guide	-55 C	105 ░C	0.394 "	10 mm	Male Pin	Tin	Square			Varies by Wire Gauge	White	Latch Holder	Through Hole	Gold	Header	8 µin	0.203 µm	Shrouded - 4 Wall	Board to Cable/Wire	600 VAC	1	UL94 V-0	Solder	Polybutylene Terephthalate (PBT) Glass Filled	5	3.81 mm	0.15 in	39.4 çin	1 çm
