STGB5H60DF Series
Manufacturer: STMicroelectronics
Beta
⌘K

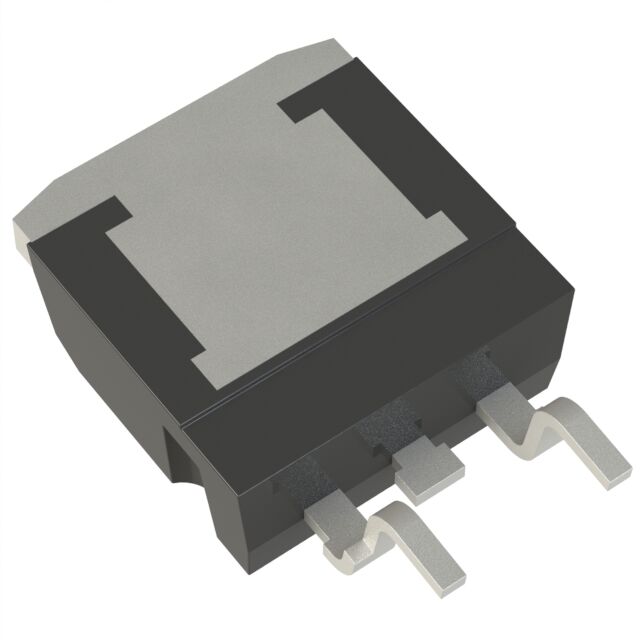

IGBTS TRENCH GATE FIELD-STOP IGBT, H SERIES 600 V, 5 A HIGH SPEED
| Part | Gate Charge | Td (on/off) @ 25°C | Vce(on) (Max) @ Vge, Ic | Power - Max [Max] | Reverse Recovery Time (trr) | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Supplier Device Package | Voltage - Collector Emitter Breakdown (Max) [Max] | Switching Energy | Current - Collector Pulsed (Icm) | Package / Case | Test Condition | IGBT Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | 43 nC | 30 ns 140 ns | 1.95 V | 88 W | 134.5 ns | 175 °C | -55 °C | Surface Mount | TO-263 (D2PAK) | 600 V | 56 µJ 78.5 µJ | 20 A | D2PAK (2 Leads + Tab) TO-263-3 TO-263AB | 5 A 15 V 47 Ohm 400 V | Trench Field Stop |
