AFT05 Series

Catalog

RF MOSFET LDMOS 7.5V SOT89A

Part	Frequency	Voltage - Rated	Supplier Device Package	Gain	Power - Output	Voltage - Test	Mounting Type	Current - Test	Package / Case	Configuration
Freescale Semiconductor - NXP AFT05MS003NT1	520 MHz	30 V	SOT-89A	20.8 dB	3 W	7.5 V	Surface Mount	100 mA	TO-243AA
Freescale Semiconductor - NXP AFT05MS031NR1	520 MHz	40 V	TO-270-2	17.7 dB	31 W	13.6 V	Surface Mount	10 mA	TO-270AA
Freescale Semiconductor - NXP AFT05MP075GNR1	520 MHz	40 V	TO-270 WB-4 Gull	18.5 dBi	70 W	12.5 V	Surface Mount	400 mA	TO-270BB	Dual
Freescale Semiconductor - NXP AFT05MS006NT1	520 MHz	30 V	PLD-1.5W	18.3 dB	6 W	7.5 V	Surface Mount	100 mA	PLD-1.5W
Freescale Semiconductor - NXP AFT05MS004NT1	520 MHz	30 V	SOT-89A	20.9 dB	4.9 W	7.5 V	Surface Mount	100 mA	TO-243AA
Freescale Semiconductor - NXP AFT05MP075NR1	520 MHz	40 V		18.5 dBi	70 W	12.5 V	Surface Mount	400 mA	TO-270AB	Dual

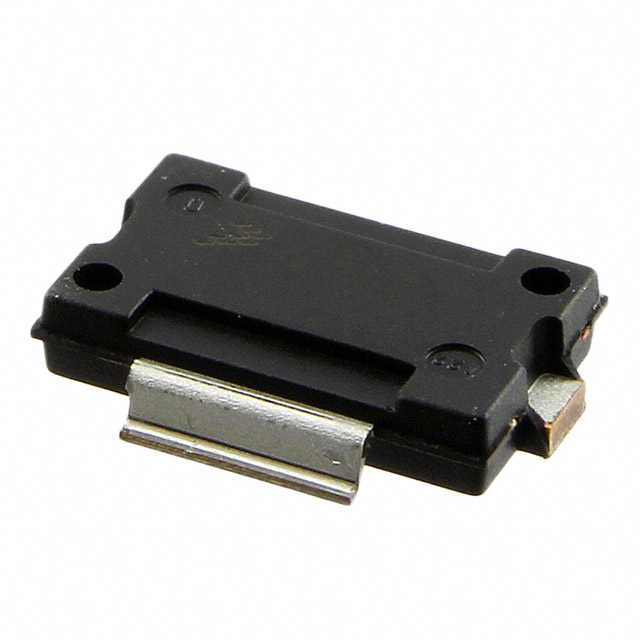

Freescale Semiconductor - NXP AFT05MS031GNR1	520 MHz	40 V	TO-270-2 GULL	17.7 dB	31 W	13.6 V	Surface Mount	10 mA	TO-270BA
