842-014 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 14POS 0.100
| Part | Material - Insulation | Termination Rows [custom] | Contact Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Number of Positions/Bay/Row | Read Out | Contact Material | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Color | Number of Positions | Termination | Card Thickness [Max] | Card Thickness [Min] | Gender | Pitch | Pitch | Termination Rows | Number of Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

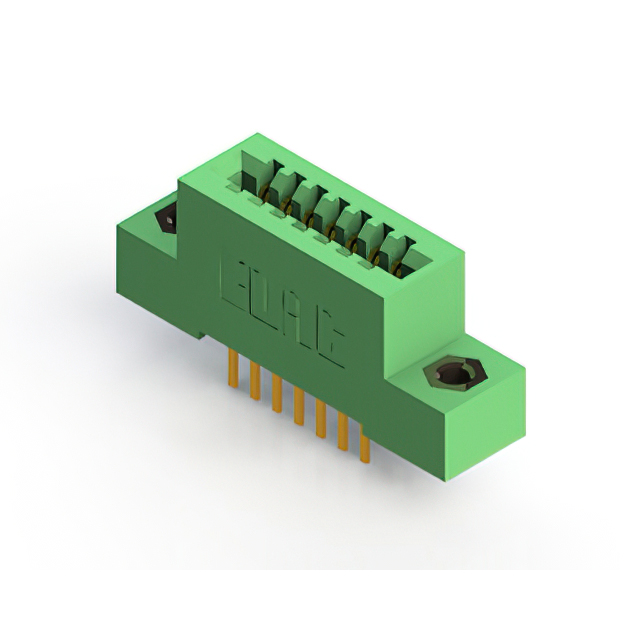

 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Cantilever | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Gold | Non Specified - Dual Edge | 125 °C | -40 C | Through Hole | 7 | Dual | Copper Alloy | 2 | 0.25 Ám | 10 Áin | Green | 14 | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 0.1 " | 2.54 mm | |||

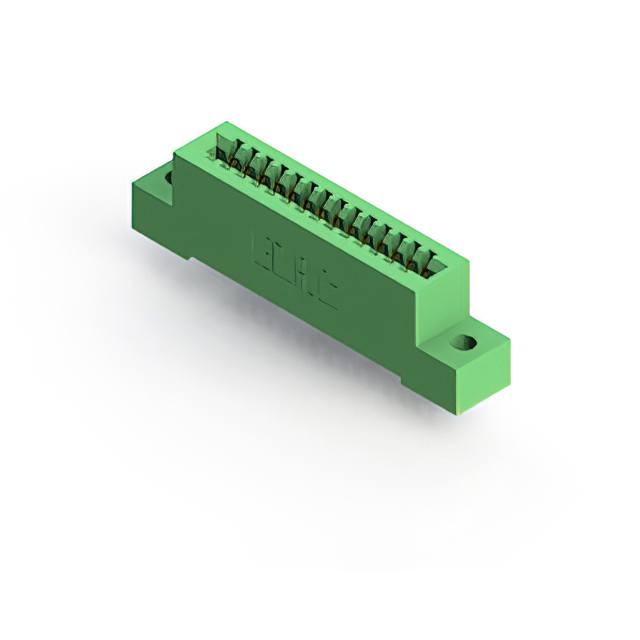

 EDAC Inc. | Diallyl Phthalate (DAP) | Cantilever | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Gold | Non Specified - Single Edge | 125 °C | -40 C | Through Hole | 14 | Single | Copper Alloy | 0.25 Ám | 10 Áin | Green | 14 | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 0.1 " | 2.54 mm | 1 | 1 | |||

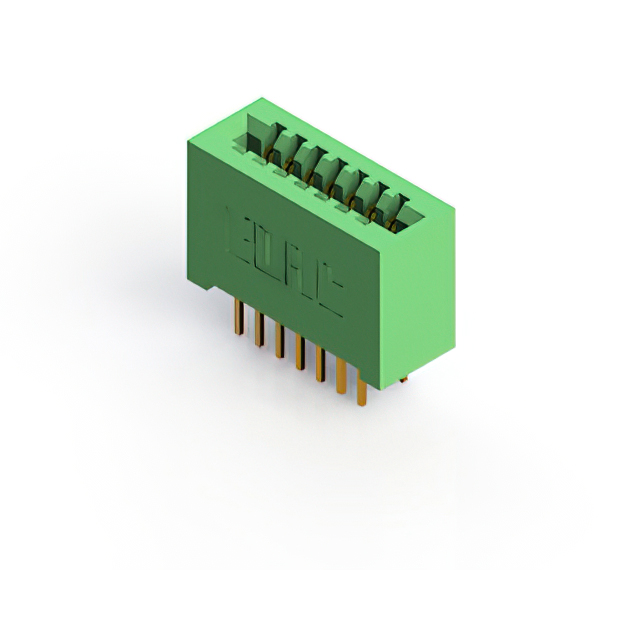

 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Cantilever | Gold | Non Specified - Dual Edge | 125 °C | -40 C | Through Hole | 7 | Dual | Copper Alloy | 2 | 0.25 Ám | 10 Áin | Green | 14 | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 0.1 " | 2.54 mm | ||||||

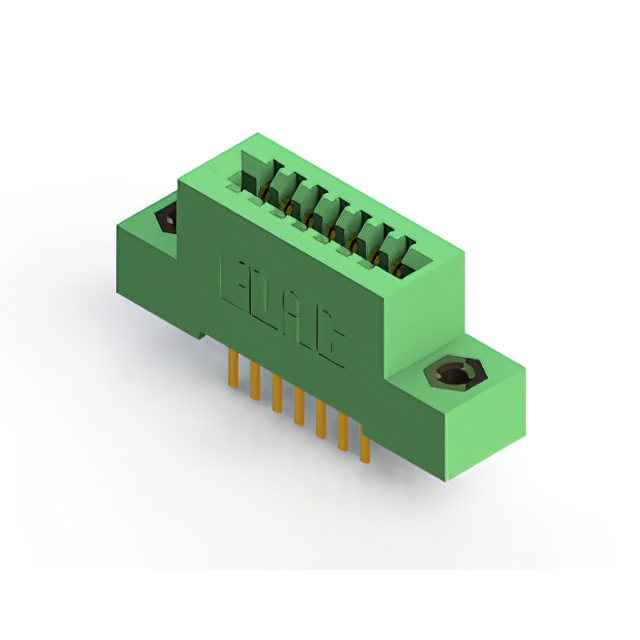

 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Cantilever | Flush Mount M3 Threaded Insert Top Opening | Gold | Non Specified - Dual Edge | 125 °C | -40 C | Through Hole | 7 | Dual | Copper Alloy | 2 | 0.25 Ám | 10 Áin | Green | 14 | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 0.1 " | 2.54 mm | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Cantilever | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Gold | Non Specified - Dual Edge | 125 °C | -40 C | Through Hole | 7 | Dual | Copper Alloy | 2 | 0.25 Ám | 10 Áin | Green | 14 | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 0.1 " | 2.54 mm | |||

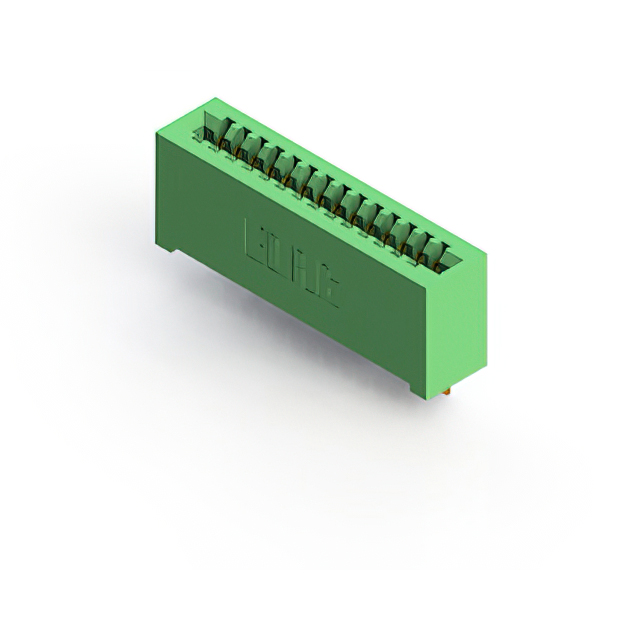

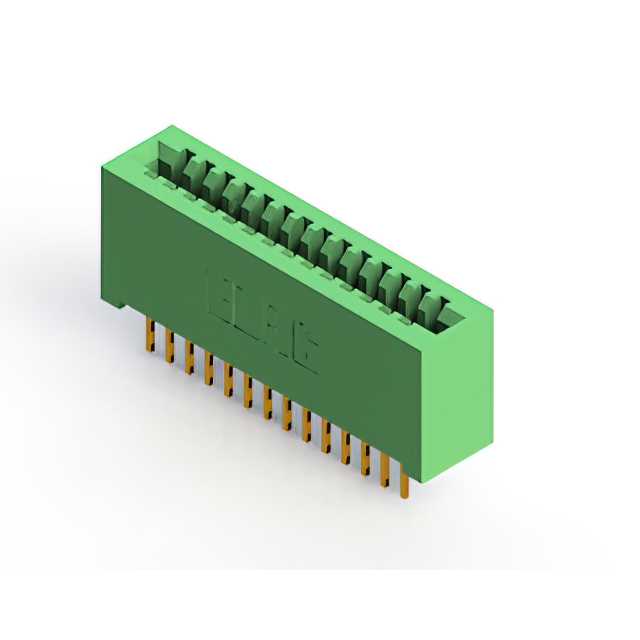

 EDAC Inc. | Diallyl Phthalate (DAP) | Cantilever | Gold | Non Specified - Single Edge | 125 °C | -40 C | Through Hole | 14 | Single | Copper Alloy | 0.25 Ám | 10 Áin | Green | 14 | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 0.1 " | 2.54 mm | 1 | 1 | ||||||

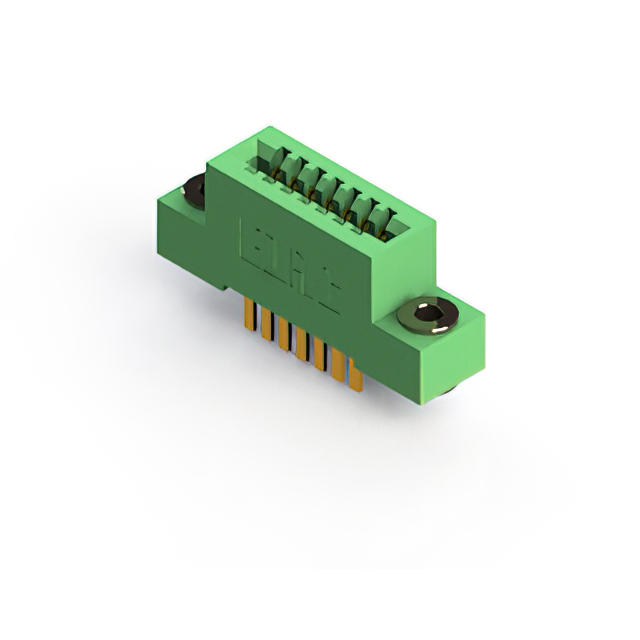

 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Non Specified - Dual Edge | 125 °C | -40 C | Through Hole | 7 | Dual | Copper Alloy | 2 | 0.25 Ám | 10 Áin | Green | 14 | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 0.1 " | 2.54 mm | |||||

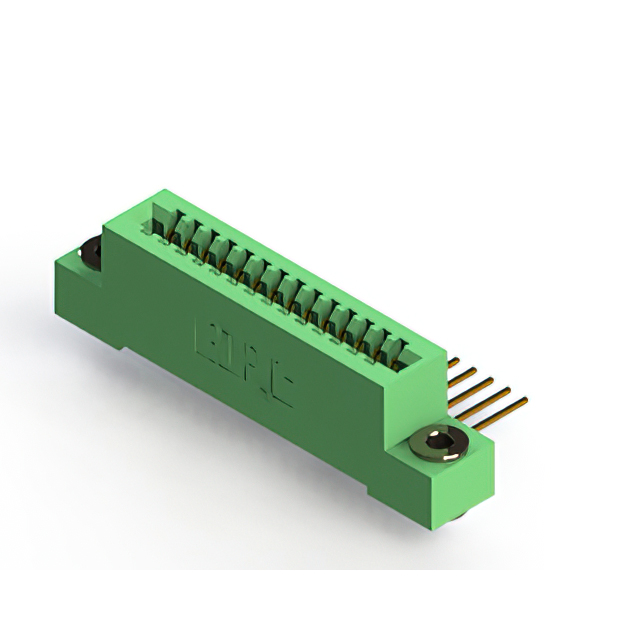

 EDAC Inc. | Diallyl Phthalate (DAP) | Cantilever | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Gold | Non Specified - Single Edge | 125 °C | -40 C | Right Angle Through Hole | 14 | Single | Copper Alloy | 0.25 Ám | 10 Áin | Green | 14 | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 0.1 " | 2.54 mm | 1 | 1 | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Cantilever | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Gold | Non Specified - Dual Edge | 125 °C | -40 C | Board Edge Straddle Mount | 7 | Dual | Copper Alloy | 2 | 0.25 Ám | 10 Áin | Green | 14 | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 0.1 " | 2.54 mm | Card Extender | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | Cantilever | Gold | Non Specified - Single Edge | 125 °C | -40 C | Right Angle Through Hole | 14 | Single | Copper Alloy | 0.25 Ám | 10 Áin | Green | 14 | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 0.1 " | 2.54 mm | 1 | 1 |
