C2543 Series

Catalog

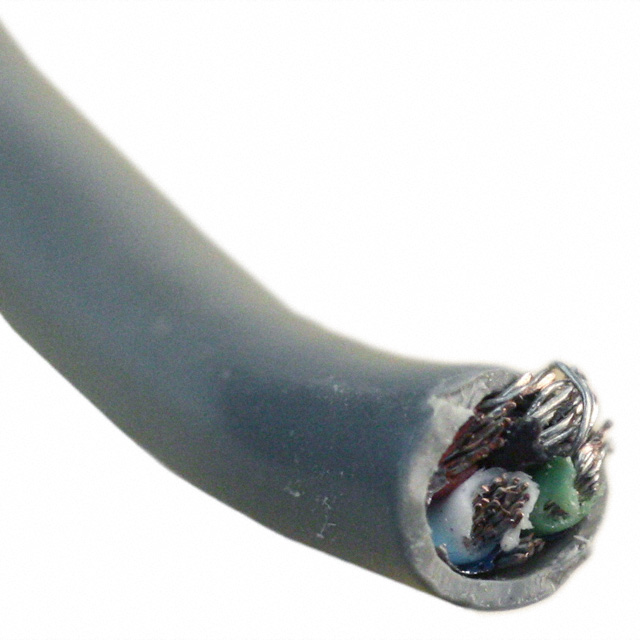

CABLE 4CON 18AWG GRAY SHLD

Part	Usage	Jacket (Insulation) Material	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Shield Type	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Wire Gauge	Shield Coverage	Number of Conductors	Shield Material	Conductor Material	Features	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Jacket Color	Length [x]	Length [x]
Prysmian Group C2543A.41.10	Communication Control	Poly-Vinyl Chloride (PVC)	Multi-Conductor	0.238 "	6.05 mm	0.813 mm	0.032 in	Poly-Vinyl Chloride (PVC)	Foil	80 °C	-20 ░C	ASTM B-33	18 AWG	100 %	4	Flexfoil®	Copper Annealed Tinned	Drain Wire	300 VDC	30 AWG	19	304.8 m	1000 ft	Gray
Prysmian Group C2543A.46.10		Poly-Vinyl Chloride (PVC)	Multi-Conductor	0.238 "	6.05 mm	0.813 mm	0.032 in	Poly-Vinyl Chloride (PVC)	Foil	80 °C	-20 ░C	ASTM B-33	18 AWG		4		Copper Annealed Tinned	Drain Wire	300 VDC	30 AWG	19			Gray
Prysmian Group C2543A.46.10		Poly-Vinyl Chloride (PVC)	Multi-Conductor	0.238 "	6.05 mm	0.813 mm	0.032 in	Poly-Vinyl Chloride (PVC)	Foil	80 °C	-20 ░C	ASTM B-33	18 AWG	100 %	4	Flexfoil®	Copper Annealed Tinned	Drain Wire	300 VDC	30 AWG	19			Gray
Prysmian Group C2543A.18.10	Communication Control	Poly-Vinyl Chloride (PVC)	Multi-Conductor	0.238 "	6.05 mm	0.813 mm	0.032 in	Poly-Vinyl Chloride (PVC)	Foil	80 °C	-20 ░C	ASTM B-33	18 AWG		4		Copper Annealed Tinned	Drain Wire	300 VDC	30 AWG	19	152.4 m	500 ft	Gray
Prysmian Group C2543A.18.10	Communication Control	Poly-Vinyl Chloride (PVC)	Multi-Conductor	0.238 "	6.05 mm	0.813 mm	0.032 in	Poly-Vinyl Chloride (PVC)	Foil	80 °C	-20 ░C	ASTM B-33	18 AWG	100 %	4	Flexfoil®	Copper Annealed Tinned	Drain Wire	300 VDC	30 AWG	19	152.4 m	500 ft	Gray
Prysmian Group C2543A.41.10	Communication Control	Poly-Vinyl Chloride (PVC)	Multi-Conductor	0.238 "	6.05 mm	0.813 mm	0.032 in	Poly-Vinyl Chloride (PVC)	Foil	80 °C	-20 ░C	ASTM B-33	18 AWG		4		Copper Annealed Tinned	Drain Wire	300 VDC	30 AWG	19	15.24 m 304.8 m	50 ft 1000 ft	Gray	100 ft	30.5 m
Prysmian Group C2543A.25.10	Communication Control	Poly-Vinyl Chloride (PVC)	Multi-Conductor	0.238 "	6.05 mm	0.813 mm	0.032 in	Poly-Vinyl Chloride (PVC)	Foil	80 °C	-20 ░C	ASTM B-33	18 AWG	100 %	4	Flexfoil®	Copper Annealed Tinned	Drain Wire	300 VDC	30 AWG	19	152.4 m	500 ft	Gray
