EMC1833 Series
EMC1833 is a 3 channel 1.62 - 3.6V temperature sensor with 1C accuracy, rate of change, alert, therm, beta comp, REC and I2C
Manufacturer: Microchip Technology
Catalog
EMC1833 is a 3 channel 1.62 - 3.6V temperature sensor with 1C accuracy, rate of change, alert, therm, beta comp, REC and I2C
Key Features
- 1.8V and 3.3V Logic Levels, Compatible with EIA/JEDEC8-7 Standard
- Rate of Temperature Change Calculation with Preemptive Alert Limits (Patent-Pending)
• dT/dt Measurement
• Programmable Duration and Gain
• Limits on Rates with Alert
- dT/dt Measurement
- Programmable Duration and Gain
- Limits on Rates with Alert
- 2 External Temperature Monitors
• ±1°C Max Accuracy, 25°C to 125°C Ta, 0°C to 127°C Td
• ±2°C Max Accuracy, -40°C to 125°C Ta, -40°C to 127°C Td
• 0.125 Resolution
• Resistance Error Correction for 100Ω
• Automatic Beta Compensation with BJT/Transistor Model Support
• Ideality Factor Configuration
• Supports up to 2.2nF Diode Filter Capacitor
• Anti-parallel Diodes for Extra Diode Support
- ±1°C Max Accuracy, 25°C to 125°C Ta, 0°C to 127°C Td
- ±2°C Max Accuracy, -40°C to 125°C Ta, -40°C to 127°C Td
- 0.125 Resolution
- Resistance Error Correction for 100Ω
- Automatic Beta Compensation with BJT/Transistor Model Support
- Ideality Factor Configuration
- Supports up to 2.2nF Diode Filter Capacitor
- Anti-parallel Diodes for Extra Diode Support
- Internal Temperature
• ±°1C Max Accuracy, -40°C to 125°C
• 0.125 Resolution
- ±°1C Max Accuracy, -40°C to 125°C
- 0.125 Resolution
- 2-Wire / I2C compatible interface
• Up to 400kHz Clock Rate
• Support Both Byte and Block Operation
• Contiguous Block for Read of All Temperatures
• Programmable or Fixed Address Options
- Up to 400kHz Clock Rate
- Support Both Byte and Block Operation
- Contiguous Block for Read of All Temperatures
- Programmable or Fixed Address Options
- Frequency Hopping Technology Eliminates Noise Sensitivity (Patented)
- ALERT (Bar) pin, Maskable
• SMBUs / I2C Compatible Interrupt
• Configurable as Comparator
- SMBUs / I2C Compatible Interrupt
- Configurable as Comparator
- THERM pin, Non-Maskable (Bar),
• Acts as Interrupt or Comparator
- Acts as Interrupt or Comparator
- Programmable temperature limits for ALERT# and THERM#
- Register Compatible with EMC141X, EMC142X, and EMC118X
- Operating Voltage:1.62V to 2.75V
- Temperature Range: -40°C to +125°C

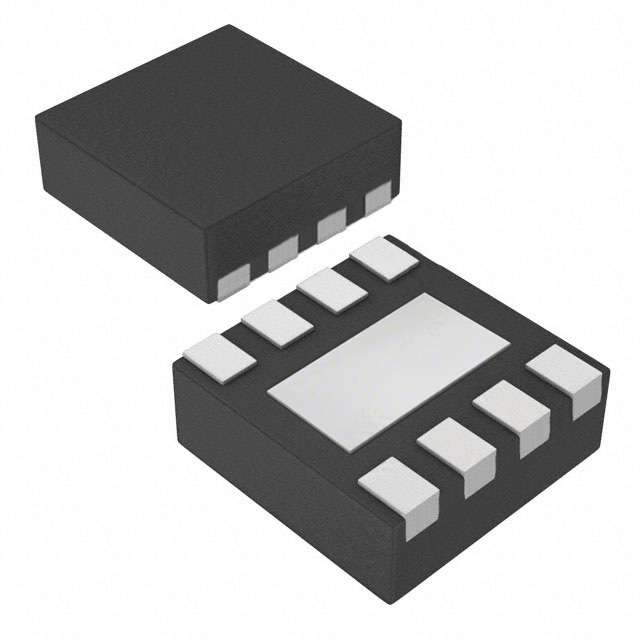

- Available in 8-Lead 2.0x2.0 mm WDFN
- Temperature Sensitive Storage
- Portable Electronics
- IOT for Low System Voltage
- Handheld Gaming
- Industrial
- Computing
- Embedded applications
Description
AI
The EMC1833 is a 1.8V, 3 channel, high accuracy, 2-Wire (I2C compatible) temperature sensor. Advanced features such as Rate of Change, Resistance Error Correction (REC), Beta Compensation (to support CPU diodes requiring the BJT/transistor model), and Ideality Configuration combine to provide a robust solution for complex environmental monitoring applications.
The EMC1833 monitors is the first device family to introduce rate of change functionality. This data, in addition to the temperature itself, facilitates a preemptive system f. This type of data can help customer better regulate
their applications to
control temperature.
Resistance Error Correction automatically eliminates the temperature error caused by series resistance allowing greater flexibility in routing thermal diodes. Beta Compensation eliminates temperature errors caused by low, variable beta transistors common in today's fine geometry processors. This frees the user from providing unique sensor configurations for each temperature monitoring application. These advanced features plus ±1° measurement accuracy provide a low-cost, highly flexible and accurate solution for critical temperature monitoring applications.
