SPC5 Series

Adapter board

Catalog

Adapter board

Part	Supplied Contents	Embedded	Type	Utilized IC / Part	Secondary Attributes	Function	Contents	For Use With/Related Products	Accessory Type	Operating System	Applications	License - User Details	License Length	Media Delivery Type	License Length

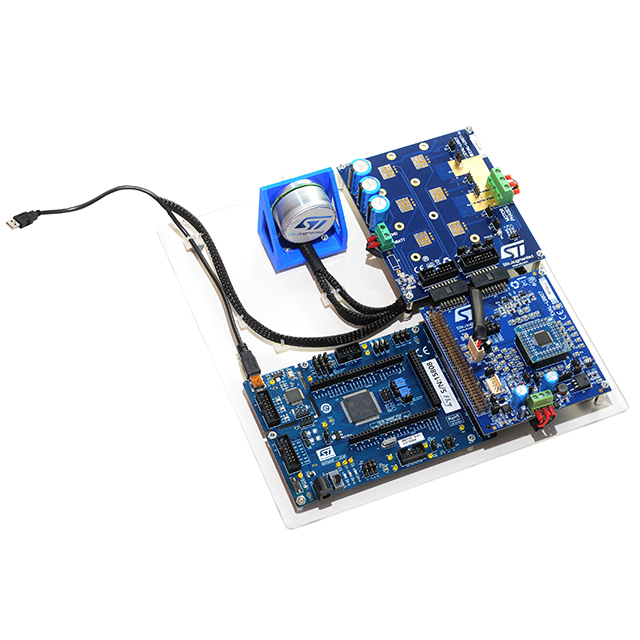

STMicroelectronics SPC5-MCTK-01	Accessories Board(s) Cable(s)	32-Bit MCU	Power Management	L9907 SPC560P	Graphical User Interface (GUI)	Motor Controller/Driver	Accessories Board(s) Cable(s)

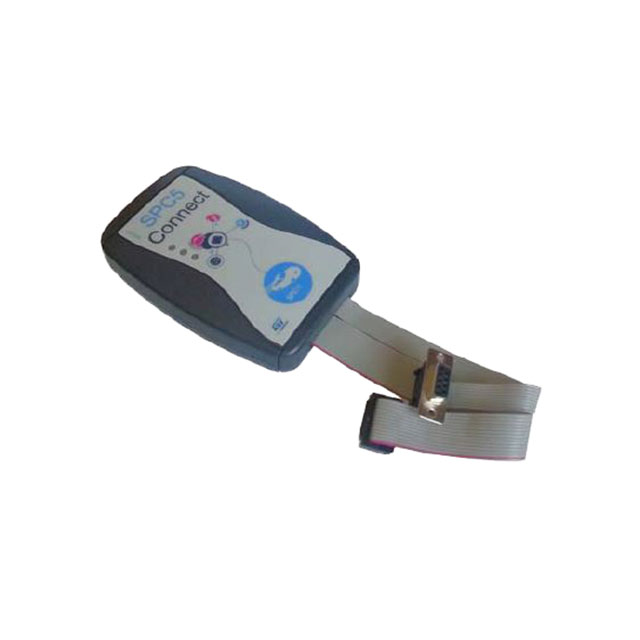

STMicroelectronics SPC5-CONNECT				SPC56				SPC56	Interface Board

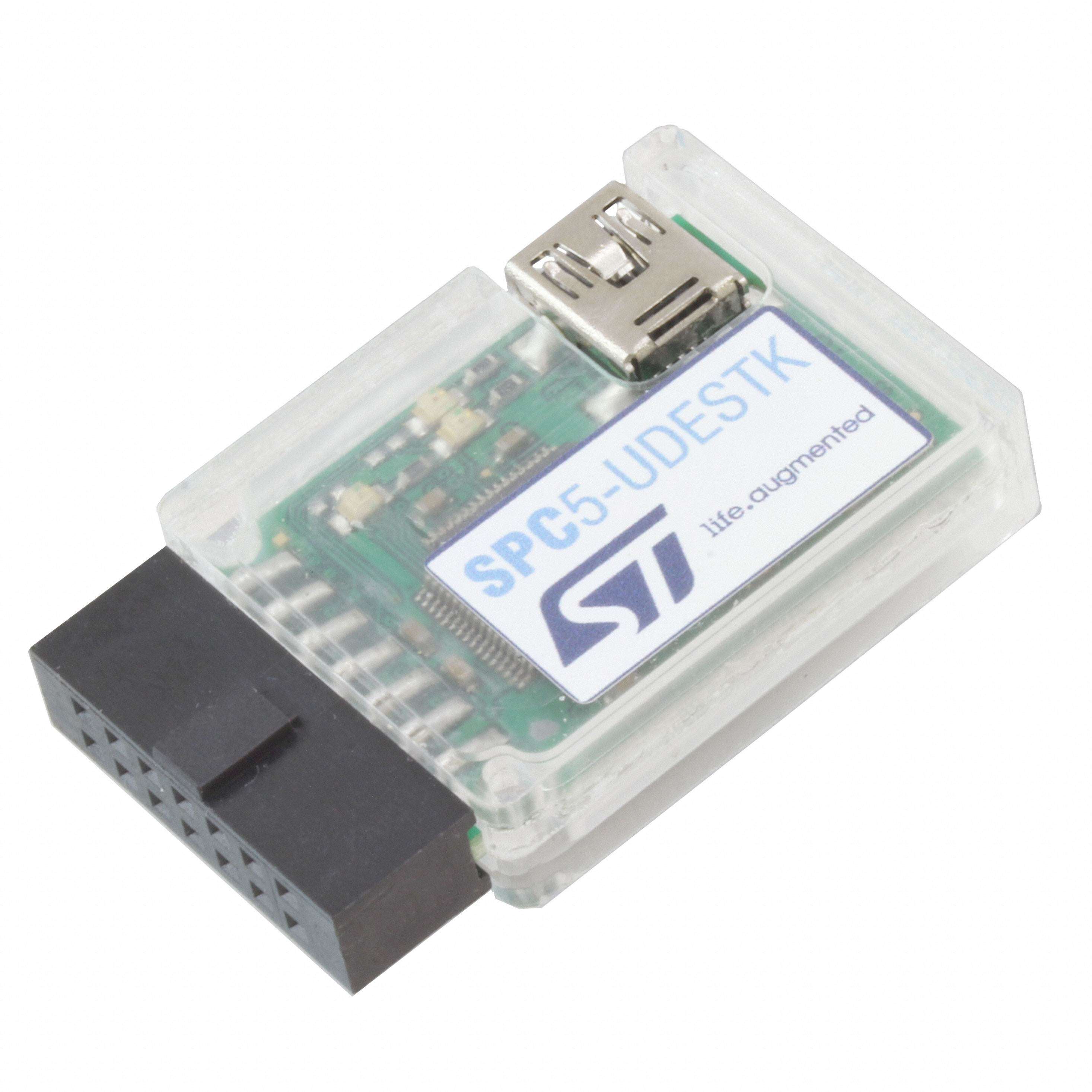

STMicroelectronics SPC5-UDESTK-PLUS			Debugger	SPC5			Board(s)	SPC5
STMicroelectronics SPC5-UDEDEBG-TL			License	SPC5				SPC5		7 8 Vista Windows XP	Programming	Unlimited Connections	1 Year	Electronically Delivered
STMicroelectronics SPC5-UDEDEBG			License	SPC5				SPC5		7 8 Vista Windows XP	Programming	Unlimited Connections			Perpetual
STMicroelectronics SPC5-EV-ADIS				SPC560B-DIS				SPC560B-DIS	Adapter Board

Catalog

Adapter board

Description

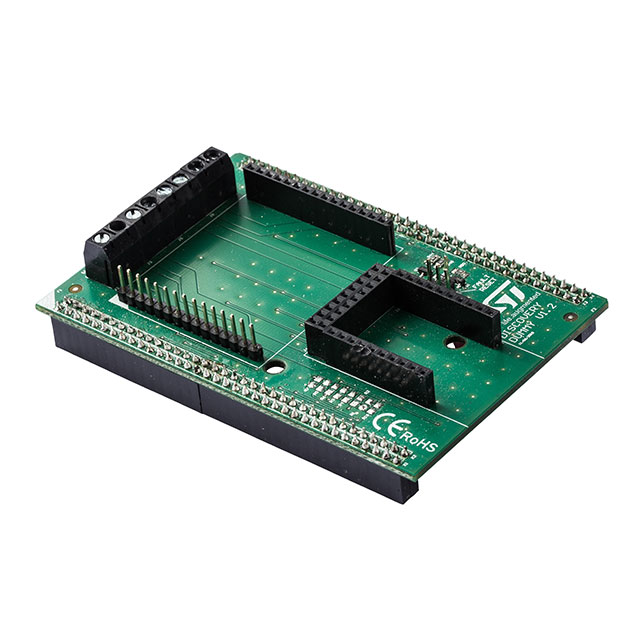

The SPC5-EV-ADIS adapter board extends the range of Automotive Discovery Ecosystem enabling the connection of M0-7 high side driver and H-bridge easy boards (EV-xxxx) to SPC560B-DIS control board. Easy board functionality is controlled through a dedicated Graphic user interface connected to control board with USB cable. Control board requires a dedicated application firmware.
