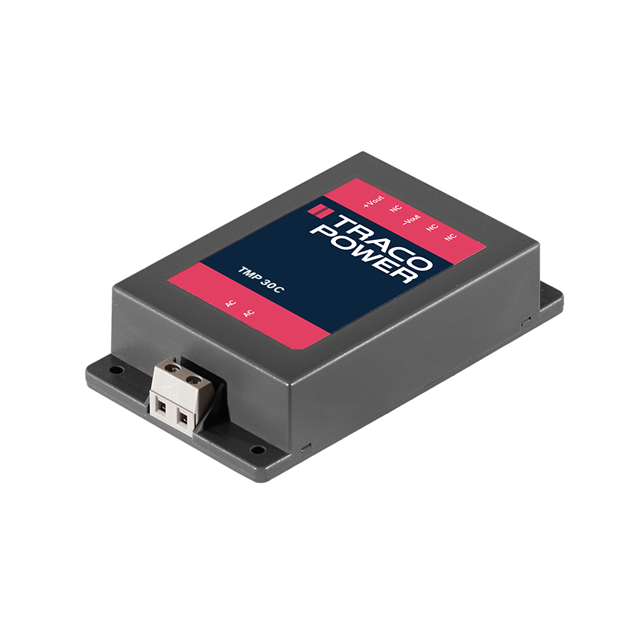

TMP 30512 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC POWER SUPPLY TRIPLE-OUT 5V/12V/-12V 3A/0.6A/0.6A 30W 7-PIN
| Part | Minimum Load Required | Voltage - Output 2 | Voltage - Isolation | Voltage - Output 1 | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Output 3 | Approval Agency | Efficiency | Voltage - Input [Min] | Voltage - Input [Max] | Applications | Type | Mounting Type | Current - Output 1 | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output 2 | Power (Watts) | Current - Output 3 | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 12 V | 3000 V | 5 V | 25.7 mm | 2.51 " | 112 mm | 1.01 " | 4.41 " | 63.8 mm | -12 V | CB CE cULus cURus | 76 % | 85 VAC 120 VDC | 264 VAC 370 VDC | Industrial ITE (Commercial) | Enclosed | Chassis Mount | 3 A | 3 | 70 °C | -25 °C | 600 mA | 29 W | 600 mA | Adjustable Output Universal Input |
