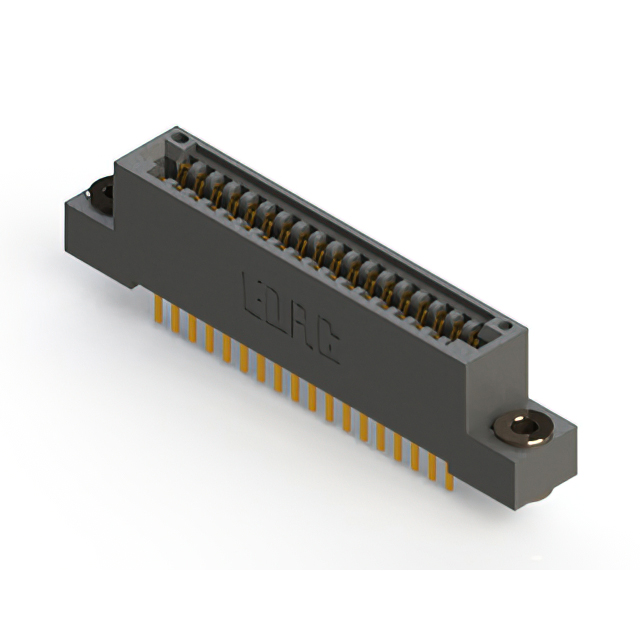

895-036 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 36POS 0.100
| Part | Material - Insulation | Termination Rows [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Contact Finish Thickness | Contact Finish Thickness | Read Out | Color | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Number of Rows [custom] | Termination | Contact Finish | Contact Type | Number of Positions/Bay/Row [custom] | Number of Positions | Mounting Type | Card Type | Flange Feature [diameter] | Flange Feature [diameter] | Pitch | Pitch | Features | Termination Rows | Number of Rows | Flange Feature | Number of Positions/Bay/Row |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | 125 °C | -40 C | Female | 0.25 Ám | 10 Áin | Dual | Black | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Solder | Gold | Cantilever | 18 | 36 | Board Edge Straddle Mount | Non Specified - Dual Edge | 0.156 " | 3.96 mm | 0.1 " | 2.54 mm | Card Extender | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 125 °C | -40 C | Female | 0.25 Ám | 10 Áin | Single | Black | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Gold | Cantilever | 36 | Through Hole | Non Specified - Single Edge | 0.1 " | 2.54 mm | 1 | 1 | Flush Mount M3 Threaded Insert Top Opening | 36 | ||||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 125 °C | -40 C | Female | 0.25 Ám | 10 Áin | Single | Black | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Gold | Cantilever | 36 | Right Angle Through Hole | Non Specified - Single Edge | 0.156 " | 3.96 mm | 0.1 " | 2.54 mm | 1 | 1 | 36 | |||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | 125 °C | -40 C | Female | 0.25 Ám | 10 Áin | Dual | Black | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Wire Wrap | Gold | Cantilever | 18 | 36 | Through Hole | Non Specified - Dual Edge | 0.156 " | 3.96 mm | 0.1 " | 2.54 mm | |||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 125 °C | -40 C | Female | 0.25 Ám | 10 Áin | Single | Black | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Gold | Cantilever | 36 | Through Hole | Non Specified - Single Edge | 0.1 " | 2.54 mm | 1 | 1 | 4-40 Threaded Insert Top Mount Opening | 36 | ||||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | 125 °C | -40 C | Female | 0.25 Ám | 10 Áin | Dual | Black | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Solder | Gold | Cantilever | 18 | 36 | Through Hole | Non Specified - Dual Edge | 0.116 " | 2.95 mm | 0.1 " | 2.54 mm | Floating Bobbin Flush Mount | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 125 °C | -40 C | Female | 0.25 Ám | 10 Áin | Single | Black | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Gold | Cantilever | 36 | Through Hole | Non Specified - Single Edge | 0.1 " | 2.54 mm | 1 | 1 | M3 Threaded Insert Top Mount Opening | 36 | ||||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | 125 °C | -40 C | Female | 0.25 Ám | 10 Áin | Dual | Black | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Solder | Gold | Cantilever | 18 | 36 | Through Hole | Non Specified - Dual Edge | 0.1 " | 2.54 mm | Flush Mount M3 Threaded Insert Top Opening | ||||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | 125 °C | -40 C | Female | 0.25 Ám | 10 Áin | Dual | Black | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Solder Eyelet(s) | Gold | Cantilever | 18 | 36 | Through Hole | Non Specified - Dual Edge | 0.1 " | 2.54 mm | M3 Threaded Insert Top Mount Opening | ||||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | 125 °C | -40 C | Female | 0.25 Ám | 10 Áin | Dual | Black | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Solder | Gold | Cantilever | 18 | 36 | Through Hole | Non Specified - Dual Edge | 0.128 " | 3.25 mm | 0.1 " | 2.54 mm | Flush Mount Side Opening Unthreaded |
