DF1-6 Series

Catalog

IDC PROTECTOR 6POS 26,28AWG

Part	Features [Max]	Features [Min]	Number of Positions	For Use With/Related Products	Accessory Type	Wire Type	Wire Gauge	Color	Cable Termination	Contact Type	Features	Pitch	Pitch	Mounting Type	Connector Type	Contact Finish	Number of Rows	Insulation Color	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Shrouding	Insulation Height [z]	Insulation Height [z]	Termination	Contact Material	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Fastening Type	Contact Shape	Material Flammability Rating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Style	Pitch - Mating	Pitch - Mating	Insulation Material
Hirose Electric Co Ltd DF1-6A1.05	28 AWG	26 AWG	6	DF1 Series	Cap (Cover)
Hirose Electric Co Ltd DF1-6S-2.5R26(05)			6			Discrete	28 AWG	Brown	IDC	Female Socket	Feed Through	2.5 mm	0.098 in	Free Hanging (In-Line)	Socket	Tin	1

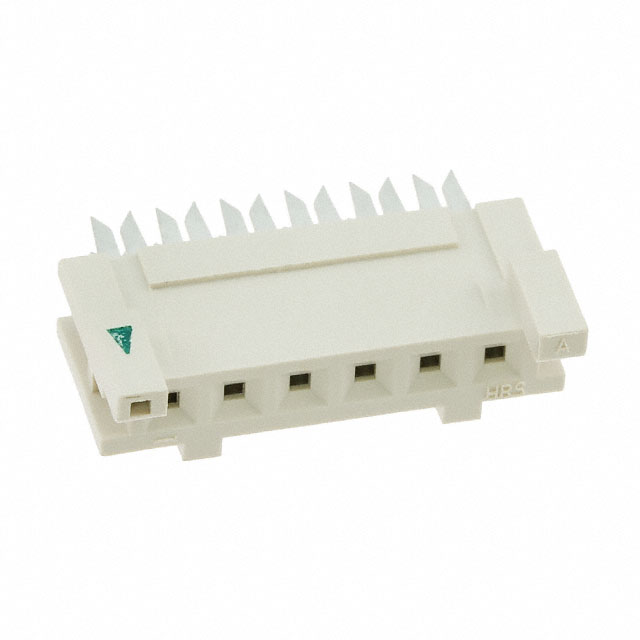

Hirose Electric Co Ltd DF1-6S-2.5R24(05)			6			Discrete	24 AWG	Brown	IDC	Female Socket	Feed Through	2.5 mm	0.098 in	Free Hanging (In-Line)	Socket	Tin	1

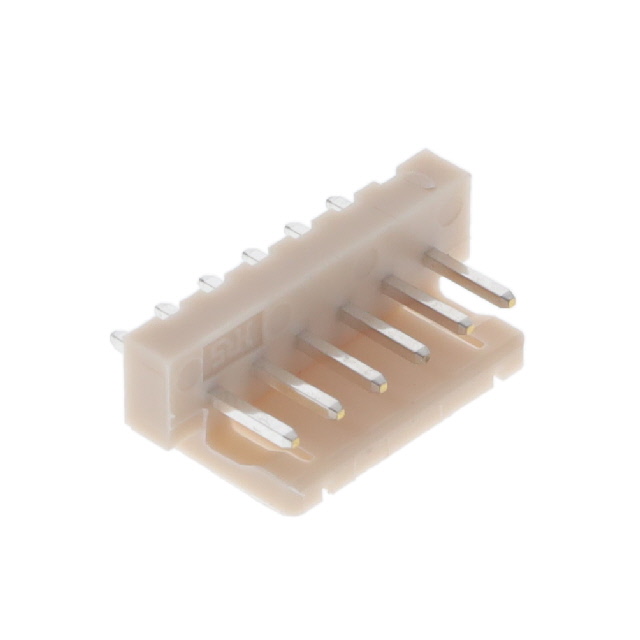

Hirose Electric Co Ltd DF1-6P-2.5DSA(05)			6							Male Pin				Through Hole	Header		1	Brown	250 V	85 °C	-30 ░C	Tin	Shrouded - 1 Wall	7.5 mm	0.295 in	Solder	Brass	All	0.118 in	3 mm	10 mm	0.394 in	3 A	0.177 in	4.5 mm	Friction Lock	Square	UL94 V-0	39.4 µin	1 µm	Board to Cable/Wire	2.5 mm	0.098 in	Nylon Polyamide (PA)
