DF7C Series

Catalog

CONN HEADER VERT 9POS 3.96MM

Part	Mated Stacking Heights	Contact Length - Mating	Contact Length - Mating [x]	Termination	Material Flammability Rating	Mounting Type	Number of Rows	Contact Material	Contact Finish - Post	Insulation Material	Number of Positions Loaded	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Style	Number of Positions	Insulation Color	Shrouding	Contact Length - Post	Contact Length - Post	Contact Type	Pitch - Mating	Pitch - Mating	Contact Shape	Connector Type

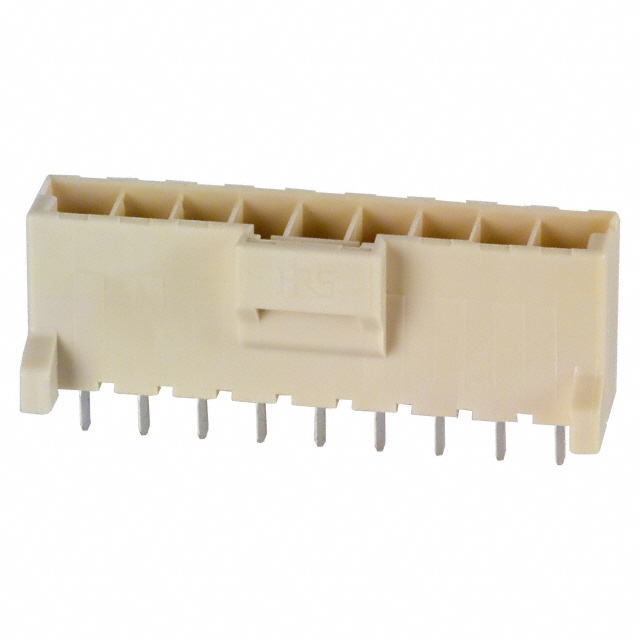

Hirose Electric Co Ltd DF7C-9P-3.96DSA(25)	21.5 mm	7 mm	0.276 in	Solder	UL94 V-0	Through Hole	1	Copper Alloy	Tin	Glass Filled Nylon Polyamide (PA)	All	0.508 in	12.9 mm	85 °C	-35 °C	Latch Holder	Board to Cable/Wire	9	Beige	Shrouded - 4 Wall	0.138 in	3.5 mm	Male Pin	3.96 mm	0.156 in	Square	Header

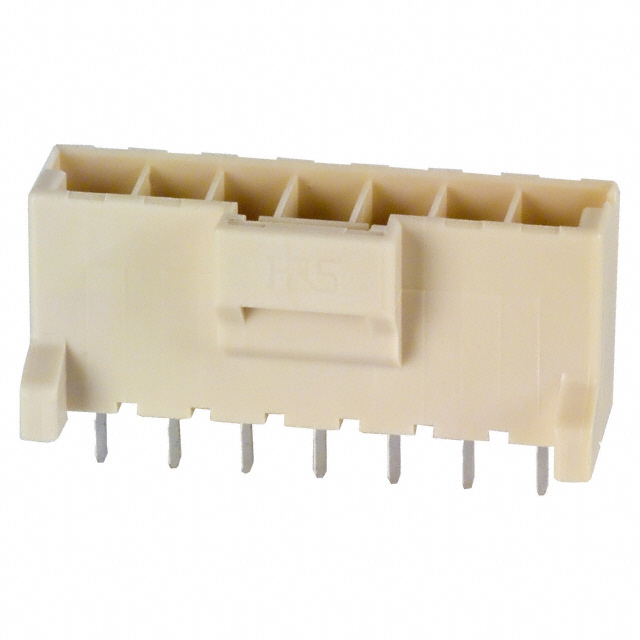

Hirose Electric Co Ltd DF7C-7P-3.96DSA(25)	21.5 mm	7 mm	0.276 in	Solder	UL94 V-0	Through Hole	1	Copper Alloy	Tin	Glass Filled Nylon Polyamide (PA)	All	0.508 in	12.9 mm	85 °C	-35 °C	Latch Holder	Board to Cable/Wire	7	Beige	Shrouded - 4 Wall	0.138 in	3.5 mm	Male Pin	3.96 mm	0.156 in	Square	Header

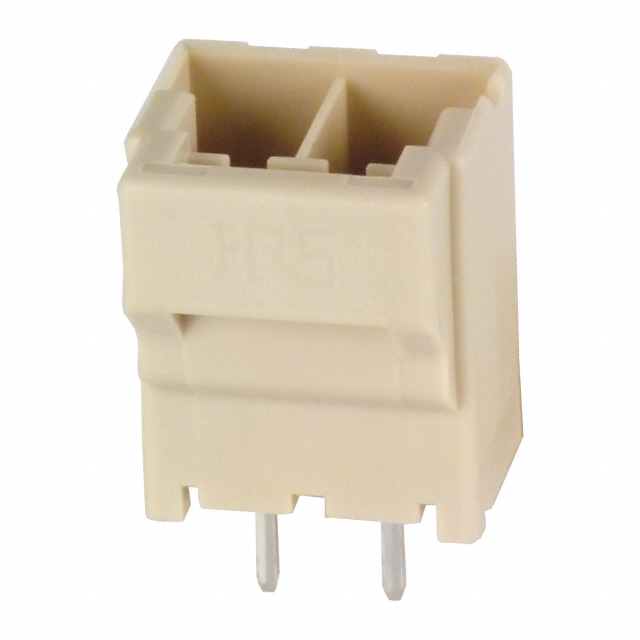

Hirose Electric Co Ltd DF7C-2P-3.96DSA(25)	21.5 mm	7 mm	0.276 in	Solder	UL94 V-0	Through Hole	1	Copper Alloy	Tin	Glass Filled Nylon Polyamide (PA)	All	0.508 in	12.9 mm	85 °C	-35 °C	Latch Holder	Board to Cable/Wire	2	Beige	Shrouded - 4 Wall	0.138 in	3.5 mm	Male Pin	3.96 mm	0.156 in	Square	Header
Hirose Electric Co Ltd DF7C-4P-3.96DSA(25)	21.5 mm	7 mm	0.276 in	Solder	UL94 V-0	Through Hole	1	Copper Alloy	Tin	Glass Filled Nylon Polyamide (PA)	All	0.508 in	12.9 mm	85 °C	-35 °C	Latch Holder	Board to Cable/Wire	4	Beige	Shrouded - 4 Wall	0.138 in	3.5 mm	Male Pin	3.96 mm	0.156 in	Square	Header

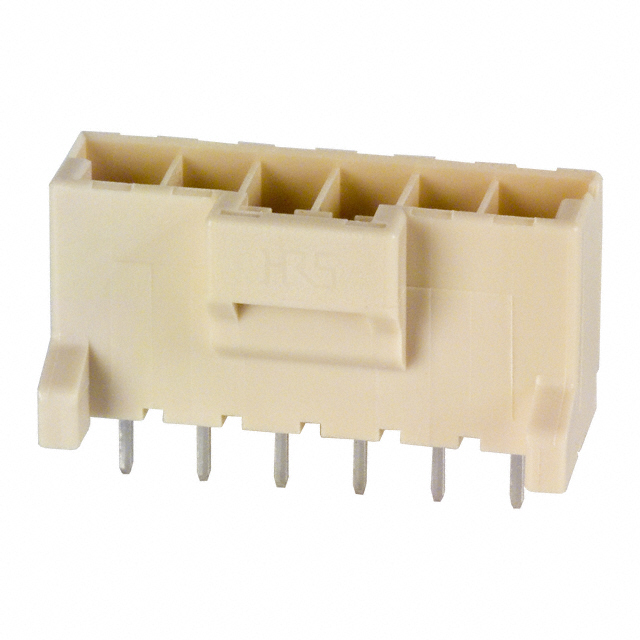

Hirose Electric Co Ltd DF7C-6P-3.96DSA(25)	21.5 mm	7 mm	0.276 in	Solder	UL94 V-0	Through Hole	1	Copper Alloy	Tin	Glass Filled Nylon Polyamide (PA)	All	0.508 in	12.9 mm	85 °C	-35 °C	Latch Holder	Board to Cable/Wire	6	Beige	Shrouded - 4 Wall	0.138 in	3.5 mm	Male Pin	3.96 mm	0.156 in	Square	Header

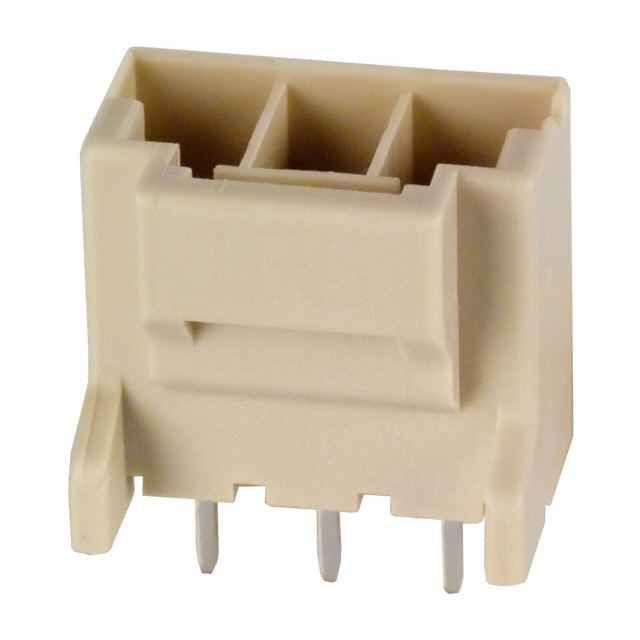

Hirose Electric Co Ltd DF7C-3P-3.96DSA(25)	21.5 mm	7 mm	0.276 in	Solder	UL94 V-0	Through Hole	1	Copper Alloy	Tin	Glass Filled Nylon Polyamide (PA)	All	0.508 in	12.9 mm	85 °C	-35 °C	Latch Holder	Board to Cable/Wire		Beige	Shrouded - 4 Wall	0.138 in	3.5 mm	Male Pin	3.96 mm	0.156 in	Square	Header
