PMDPB55 Series

Catalog

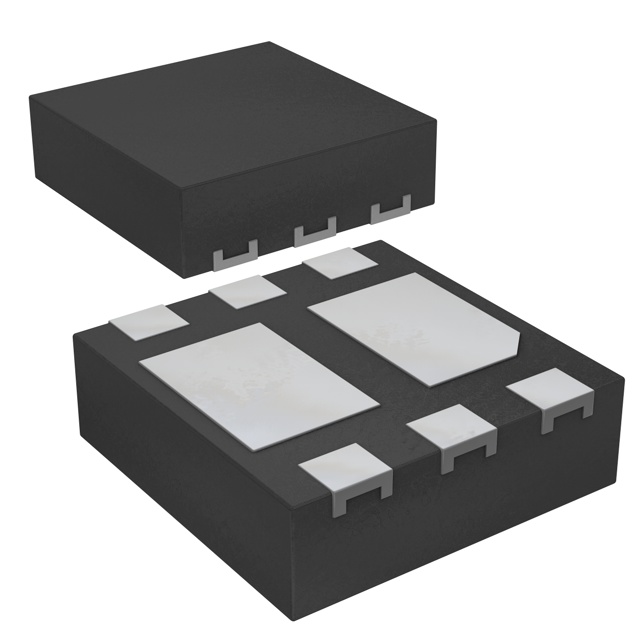

PMDPB55XP - 20 V, DUAL P-CHANNEL TRENCH MOSFET@EN-US DFN 6-PIN

Part	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Configuration	Vgs(th) (Max) @ Id	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Package / Case	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs	Rds On (Max) @ Id, Vgs	Mounting Type	FET Feature	Technology	Power - Max [Max]
Freescale Semiconductor - NXP PMDPB55XP,115	-55 °C	150 °C	6-HUSON (2x2)	2 P-Channel	900 mV	3.4 A	20 V	6-UFDFN Exposed Pad	785 pF	25 nC	70 mOhm	Surface Mount	Logic Level Gate	MOSFET (Metal Oxide)	490 mW
