ADS7043 Series

Ultra-Low-Power Ultra-Small-Size SAR ADC | 12 Bit | 1MSPS | Pseudo Differential

Catalog

Ultra-Low-Power Ultra-Small-Size SAR ADC | 12 Bit | 1MSPS | Pseudo Differential

Part	Architecture	Configuration	Data Interface	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Ratio - S/H:ADC	Number of Inputs	Number of A/D Converters	Mounting Type	Sampling Rate (Per Second)	Package / Case	Supplier Device Package	Input Type	Reference Type	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Number of Bits	Package / Case [y]	Package / Case [y]	Utilized IC / Part	Supplied Contents	Power (Typ) @ Conditions	Input Range
Texas Instruments ADS7043IRUGR	SAR	S/H-ADC	SPI	125 °C	-40 °C	1.65 V	3.6 V	1:1	1	1	Surface Mount	1 M	8-XFQFN	8-X2QFN (1.5x1.5)	Pseudo-Differential	Supply	1.65 V	3.6 V	12 bits
Texas Instruments ADS7043IDCUR	SAR	S/H-ADC	SPI	125 °C	-40 °C	1.65 V	3.6 V	1:1	1	1	Surface Mount	1 M	8-VFSOP		Pseudo-Differential	Supply	1.65 V	3.6 V	12 bits	2.3 mm	0.091 in

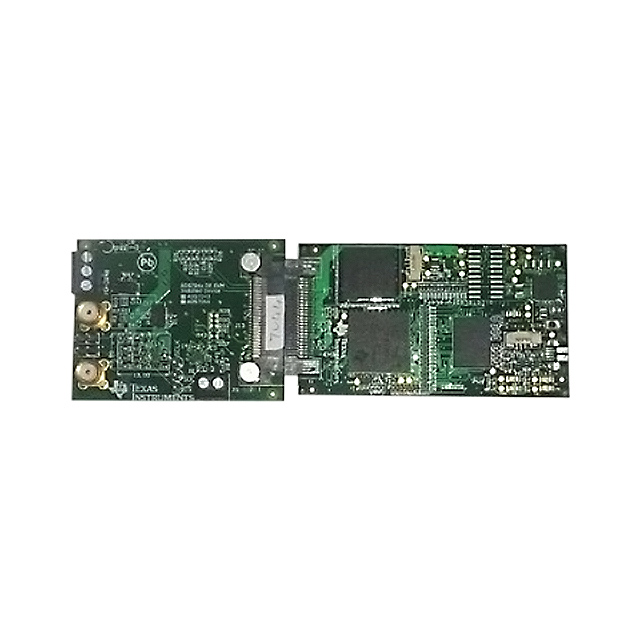

Texas Instruments ADS7043EVM-PDK			SPI							1		1 M							12 bits			ADS7043	Board(s)	0.78 mW	1.8 V

Catalog

Ultra-Low-Power Ultra-Small-Size SAR ADC | 12 Bit | 1MSPS | Pseudo Differential

Key Features

• Industry’s First SAR ADC with Nanowatt Power Consumption:243 µW at 1 MSPS with 1.8-V AVDD780 µW at 1 MSPS with 3-V AVDD78 µW at 100 kSPS with 3-V AVDDLess than 1 µW at 1 kSPS with 3-V AVDDIndustry’s Smallest SAR ADC:X2QFN-8 Package with 2.25-mm2Footprint1-MSPS Throughput with Zero Data LatencyWide Operating Range:AVDD: 1.65 V to 3.6 VDVDD: 1.65 V to 3.6 V (Independent of AVDD)Temperature Range: –40°C to 125°CExcellent Performance:12-Bit Resolution with NMC±1-LSB (Max) DNL and INL70-dB SNR with 3-V AVDD–80-dB THD with 3-V AVDDUnipolar, Pseudo Differential Input Range: –AVDD / 2 to AVDD / 2Integrated Offset CalibrationSPI™-Compatible Serial Interface: 16 MHzJESD8-7A Compliant Digital I/OIndustry’s First SAR ADC with Nanowatt Power Consumption:243 µW at 1 MSPS with 1.8-V AVDD780 µW at 1 MSPS with 3-V AVDD78 µW at 100 kSPS with 3-V AVDDLess than 1 µW at 1 kSPS with 3-V AVDDIndustry’s Smallest SAR ADC:X2QFN-8 Package with 2.25-mm2Footprint1-MSPS Throughput with Zero Data LatencyWide Operating Range:AVDD: 1.65 V to 3.6 VDVDD: 1.65 V to 3.6 V (Independent of AVDD)Temperature Range: –40°C to 125°CExcellent Performance:12-Bit Resolution with NMC±1-LSB (Max) DNL and INL70-dB SNR with 3-V AVDD–80-dB THD with 3-V AVDDUnipolar, Pseudo Differential Input Range: –AVDD / 2 to AVDD / 2Integrated Offset CalibrationSPI™-Compatible Serial Interface: 16 MHzJESD8-7A Compliant Digital I/O

Description

The ADS7043 is a 1-MSPS, analog-to-digital converter (ADC). The device supports a wide analog input voltage range (±0.825 V to ±1.8 V) and includes a capacitor-based, successive-approximation register (SAR) ADC with an inherent sample-and-hold circuit. The SPI-compatible serial interface is controlled by theCSand SCLK signals. The input signal is sampled with theCSfalling edge and SCLK is used for conversion and serial data output. The device supports a wide digital supply range (1.65 V to 3.6 V), enabling direct interface to a variety of host controllers. The device complies with the JESD8-7A standard for normal DVDD range (1.65 V to 1.95 V). The device is available in 8-pin, miniature, leaded, and X2QFN packages and is specified for operation from –40°C to 125°C. Miniature form-factor and extremely low-power consumption make this device suitable for space-constrained, battery-powered applications. The ADS7043 is a 1-MSPS, analog-to-digital converter (ADC). The device supports a wide analog input voltage range (±0.825 V to ±1.8 V) and includes a capacitor-based, successive-approximation register (SAR) ADC with an inherent sample-and-hold circuit. The SPI-compatible serial interface is controlled by theCSand SCLK signals. The input signal is sampled with theCSfalling edge and SCLK is used for conversion and serial data output. The device supports a wide digital supply range (1.65 V to 3.6 V), enabling direct interface to a variety of host controllers. The device complies with the JESD8-7A standard for normal DVDD range (1.65 V to 1.95 V). The device is available in 8-pin, miniature, leaded, and X2QFN packages and is specified for operation from –40°C to 125°C. Miniature form-factor and extremely low-power consumption make this device suitable for space-constrained, battery-powered applications.
