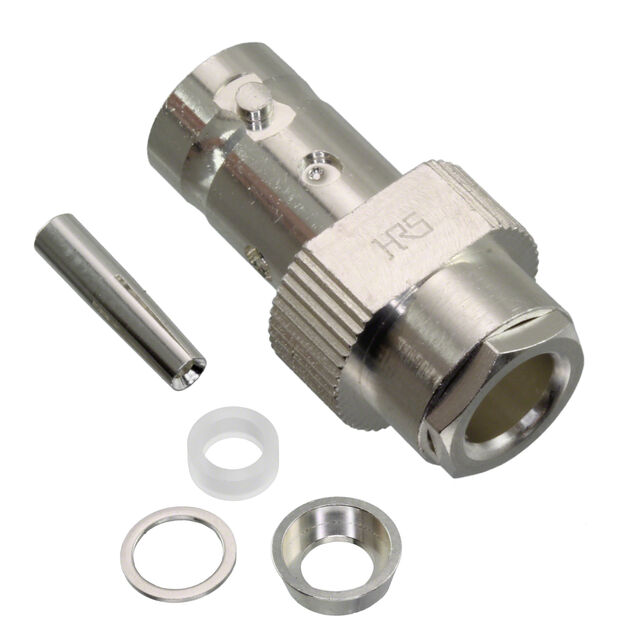

3CV-J Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN RF COAX JACK
| Part | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Mating Cycles | Dielectric Material | Center Contact Plating | Connector Type | Fastening Type | Number of Ports | Housing Color | Center Contact Material | Connector Style | Impedance | Cable Group | Shield Termination | Contact Termination | Mounting Type | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | |||||||||||||||||||
 Hirose Electric Co Ltd | Silver | -30 ░C | 60 °C | Brass | 1000 | Polytetrafluoroethylene (PTFE) | Silver | Female Socket Jack | Bayonet Lock | 1 | Silver | Beryllium Copper | BNC | 50 Ohms | 3C-2V | Clamp | Solder | Free Hanging (In-Line) | 1 GHz |
