LD49100 Series
Manufacturer: STMicroelectronics
Beta
⌘K
1 A, LOW QUIESCENT CURRENT, LOW-NOISE VOLTAGE REGULATOR WITH SOFT START - AUTOMOTIVE GRADE
| Part | Protection Features | Current - Supply (Max) [Max] | Package / Case | Supplier Device Package | Voltage - Input (Max) [Max] | Voltage - Output (Min/Fixed) | Voltage Dropout (Max) | Grade | Current - Quiescent (Iq) | PSRR [Max] | PSRR [Min] | Mounting Type | Number of Regulators | Control Features | Current - Output | Operating Temperature [Min] | Operating Temperature [Max] | Output Configuration | Qualification | Output Type | Voltage - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

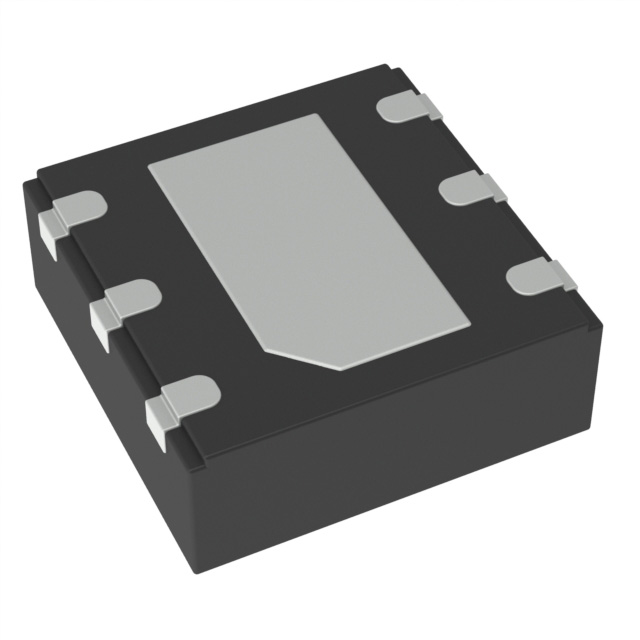

 STMicroelectronics | Over Current Over Temperature | 300 µA | 6-VDFN Exposed Pad | 6-DFN (3x3) | 5.5 V | 1.2 V | 0.4 V | Automotive | 50 çA | 65 dB | 62 dB | Surface Mount Wettable Flank | 1 | Enable | 1 A | -40 C | 125 °C | Positive | AEC-Q100 | ||
 STMicroelectronics | Over Current Over Temperature | 300 µA | 6-VDFN Exposed Pad | 6-DFN (3x3) | 5.5 V | 1.5 V | 0.4 V | Automotive | 50 çA | 65 dB | 62 dB | Surface Mount Wettable Flank | 1 | Enable Power Good | 1 A | -40 C | 125 °C | Positive | AEC-Q100 | ||
 STMicroelectronics | Over Current Over Temperature | 300 µA | 6-VDFN Exposed Pad | 6-DFN (3x3) | 5.5 V | 3.3 V | 0.4 V | Automotive | 50 çA | 65 dB | 62 dB | Surface Mount Wettable Flank | 1 | Enable | 1 A | -40 C | 125 °C | Positive | AEC-Q100 | ||
STMicroelectronics | Over Current Over Temperature | 300 µA | 6-VDFN Exposed Pad | 6-DFN (3x3) | 5.5 V | 0.8 V | 0.4 V | Automotive | 50 çA | 70 dB | 65 dB | Surface Mount Wettable Flank | 1 | Enable | 1 A | -40 C | 125 °C | Positive | AEC-Q100 | Adjustable | 4.5 V |
STMicroelectronics | Over Current Over Temperature | 300 µA | 6-VDFN Exposed Pad | 6-DFN (3x3) | 5.5 V | 1 V | 0.4 V | Automotive | 50 çA | Surface Mount Wettable Flank | 1 | Enable Power Good | 1 A | -40 C | 125 °C | Positive | AEC-Q100 | ||||
STMicroelectronics | Over Current Over Temperature | 300 µA | 6-VDFN Exposed Pad | 6-DFN (3x3) | 5.5 V | 2.5 V | 0.4 V | Automotive | 50 çA | 65 dB | 62 dB | Surface Mount Wettable Flank | 1 | Enable | 1 A | -40 C | 125 °C | Positive | AEC-Q100 | ||
STMicroelectronics | Over Current Over Temperature | 300 µA | 6-VDFN Exposed Pad | 6-DFN (3x3) | 5.5 V | 1.8 V | 0.4 V | Automotive | 50 çA | 65 dB | 62 dB | Surface Mount Wettable Flank | 1 | Enable | 1 A | -40 C | 125 °C | Positive | AEC-Q100 |
