ADL5541 Series

20 MHz to 6 GHz RF/IF Gain Block, Fixed Gain of 15 dB

Catalog

20 MHz to 6 GHz RF/IF Gain Block, Fixed Gain of 15 dB

Part	Frequency [Min]	Frequency [Max]	For Use With/Related Products	Type	Supplied Contents	Package / Case	Gain [Max]	Gain [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Noise Figure [Min]	Noise Figure [Max]	Mounting Type	Test Frequency	Current - Supply [Min]	Current - Supply [Max]	RF Type

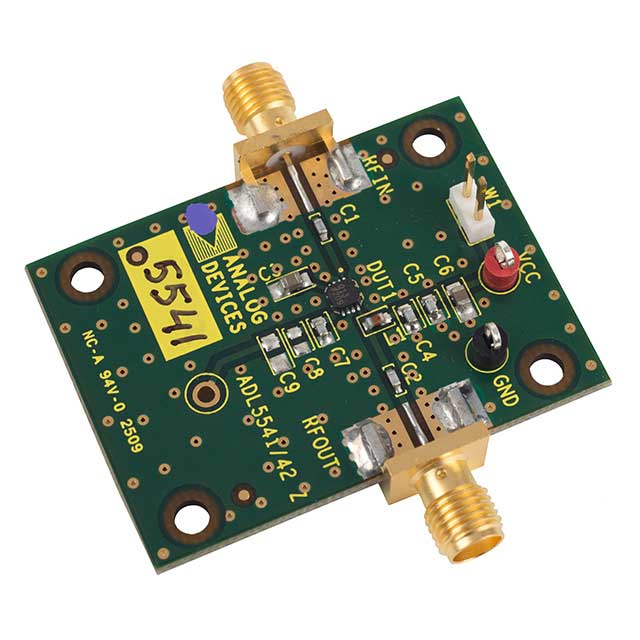

Analog Devices ADL5541-EVALZ	20 MHz	6 GHz	ADL5541	Amplifier	Board(s)
Analog Devices ADL5541ACPZ-R7	20 MHz	6 GHz				8-WFDFN Exposed Pad CSP	13.5 dB	9.1 dB	4.5 V	5.5 V	8-LFCSP (3x3)	6 dB	7 dB	Surface Mount	5.8 GHz	90 mA	100 mA	CATV Cellular

Catalog

20 MHz to 6 GHz RF/IF Gain Block, Fixed Gain of 15 dB

Key Features

• Fixed gain of 15 dB

• Operation up to 6 GHz

• Input/output internally matched to 50 Ω

• Integrated bias control circuit

• Output IP344 dBm at 500 MHz40 dBm at 900 MHz

• Output 1 dB compression: 19.7 dBm at 900 MHz

• Noise figure of 3.5 dB at 900 MHz

• Single 5 V power supply

• Small footprint 8-lead LFCSP

• Pin compatible with 20 dB gainADL5542

• 1 kV ESD (Class 1C)

Description

The ADL5541 is a broadband 15 dB linear amplifier that operates at frequencies up to 6 GHz. The device can be used in a wide variety of CATV, cellular, and instrumentation equipment.The ADL5541 provides a gain of 15 dB, which is stable over frequency, temperature, power supply, and from device to device. The device is internally matched to 50 Ω with an input return loss of 10 dB or better up to 6 GHz. Only input/output ac coupling capacitors, power supply decoupling capacitors, and an external inductor are required for operation.The ADL5541 is fabricated on an InGaP HBT process and has an ESD rating of 1 kV (Class 1C). The device is packaged in a 3 mm × 3 mm LFCSP that uses an exposed paddle for excellent thermal impedance.The ADL5541 consumes 90 mA on a single 5 V supply and is fully specified for operation from −40°C to +85°C.A fully populated RoHS-compliant evaluation board is available.The ADL5542 is a companion part that offers a gain of 20 dB in a pin-compatible package.
