AGL1000V2 Series

Ultra Low Density FPGAs

Catalog

Ultra Low Density FPGAs

Part	Package / Case	Number of Gates	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Logic Elements/Cells [custom]	Total RAM Bits
Microchip Technology AGL1000V2-FGG256	256-LBGA	1000000	177	70 °C	0 °C	Surface Mount	256-FPBGA (17x17)	1.575 V	1.14 V	24576	147456 bits

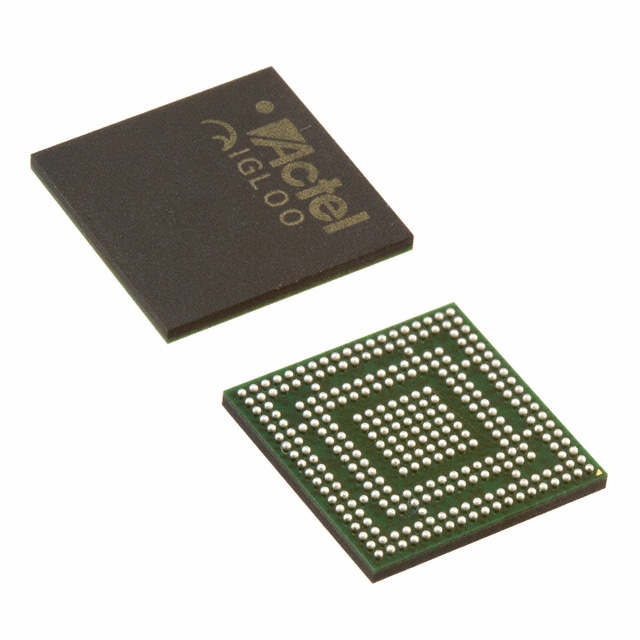

Microchip Technology AGL1000V2-CS281I	281-TFBGA CSBGA	1000000	215	85 °C	-40 °C	Surface Mount	281-CSP (10x10)	1.575 V	1.14 V	24576	147456 bits
Microchip Technology AGL1000V2-CSG281	281-TFBGA CSBGA	1000000	215	70 °C	0 °C	Surface Mount	281-CSP (10x10)	1.575 V	1.14 V	24576	147456 bits
Microchip Technology AGL1000V2-FGG484I	484-BGA	1000000	300 I/O	85 °C	-40 °C	Surface Mount	484-FPBGA (23x23)	1.575 V	1.14 V	24576	147456 bits
Microchip Technology AGL1000V2-CSG281I	281-TFBGA CSBGA	1000000	215	85 °C	-40 °C	Surface Mount	281-CSP (10x10)	1.575 V	1.14 V	24576	147456 bits
Microchip Technology AGL1000V5-FG256	256-LBGA	1000000	177	70 °C	0 °C	Surface Mount	256-FPBGA (17x17)	1.575 V	1.425 V	24576	147456 bits
Microchip Technology AGL1000V5-FGG144	144-LBGA	1000000	97	70 °C	0 °C	Surface Mount	13x13 144-FPBGA	1.575 V	1.425 V	24576	147456 bits
Microchip Technology AGL1000V5-FGG144I	144-LBGA	1000000	97	85 °C	-40 °C	Surface Mount	13x13 144-FPBGA	1.575 V	1.425 V	24576	147456 bits
Microchip Technology AGL1000V2-CS281	281-TFBGA CSBGA	1000000	215	70 °C	0 °C	Surface Mount	281-CSP (10x10)	1.575 V	1.14 V	24576	147456 bits
Microchip Technology AGL1000V5-FGG256	256-LBGA	1000000	177	70 °C	0 °C	Surface Mount	256-FPBGA (17x17)	1.575 V	1.425 V	24576	147456 bits

Catalog

Ultra Low Density FPGAs

Key Features

• * 35K logic elements

• * 504 Kbits RAM

• * 1Kb FlashROM

• * 6 PLL in CCC

• * Temperature - Commercial, Industrial

Description

IGLOO offers the lowest power FPGA, small footprint packages, reprogrammability, and an abundance of features. Key Features • Ultra-low power in Flash\*Freeze mode, as low as 191 µW • 1.5V Core voltage support • Proven Security • Protection from Overbuilding and Cloning • Exceptional Reliability
