Z0405 Series
Manufacturer: STMicroelectronics
Beta
⌘K

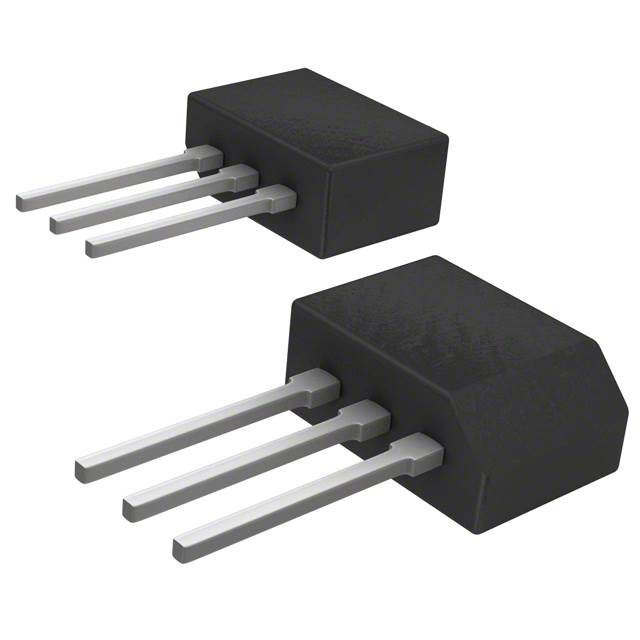

TRIAC SENS GATE 800V 4A TO202-3
| Part | Current - Hold (Ih) (Max) | Package Name | Package / Case | Voltage - Gate Trigger (Vgt) (Max) | Current - On State (It (RMS)) (Max) | Operating Temperature (Max) | Operating Temperature (Min) | Configuration | Current - Gate Trigger (Igt) (Max) | Mounting Type | Current - Non Rep. Surge Frequencies | Current - Non Rep. Surge Type | Current - Non Rep. Surge (Itsm) | Voltage - Off State | Triac Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | 5 mA | TO-202-3 | TO-202 No Tab | 1.3 V | 4 A | 125 °C | -40 °C | Single | 5 mA | Through Hole | 50Hz 60Hz | Itsm | 20 A 21 A | 800 V | Logic - Sensitive Gate |
STMicroelectronics | 5 mA | TO-202-3 | TO-202 No Tab | 1.3 V | 4 A | 125 °C | -40 °C | Single | 5 mA | Through Hole | 50Hz 60Hz | Itsm | 20 A 21 A | 800 V | Logic - Sensitive Gate |
 STMicroelectronics | 5 mA | TO-202 | TO-202 Long Tab | 1.3 V | 4 A | 125 °C | -40 °C | Single | 5 mA | Through Hole | 50Hz 60Hz | Itsm | 20 A 21 A | 600 V | Logic - Sensitive Gate |
