BXRA-30 Series

Manufacturer: BRIDGELUX

Catalog

LED COB RS WARM WHT SQU 3000K

Part	Current - Max [Max]	Luminous Flux @ Current/Temperature	Temperature - Test	Size / Dimension [x]	Size / Dimension [y]	Configuration	Color	Type	CCT (K)	CCT (K)	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Viewing Angle	Current - Test	Lens Type	Height [z]	Voltage - Forward (Vf) (Typ)
BRIDGELUX BXRA-30G7000-J-03	3.5 A	6800 lm	25 °C	45.6 mm	2 in	Square	Warm White	Chip On Board (COB)	3-Step MacAdam Ellipse	3000 K	90	83 lm/W	120 °	2.8 A	Domed	3 mm

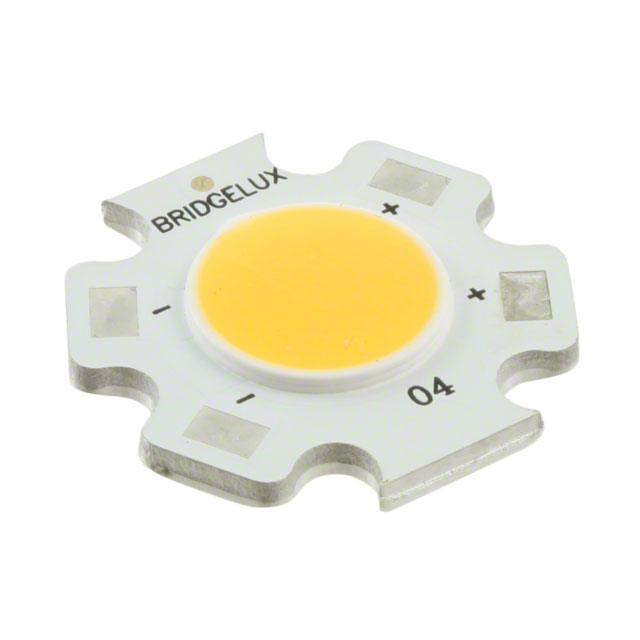

BRIDGELUX BXRA-30G0740-A-00	350 mA	780 lm	25 °C	19.9 mm	19.9 mm	Starboard	Warm White	Chip On Board (COB)		3000 K	90	82 lm/W	120 °	350 mA	Domed	3 mm	27.3 V

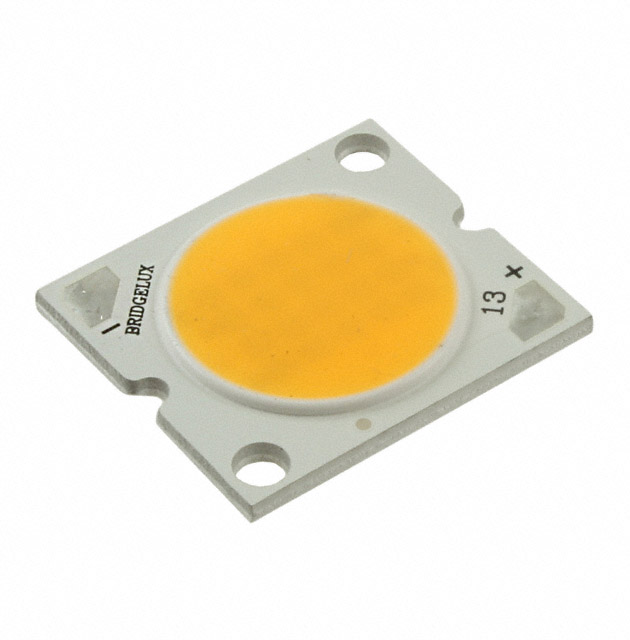

BRIDGELUX BXRA-30E1200-B-00	750 mA	1475 lm	25 °C	22.8 mm	25.8 mm	Rectangle	Warm White	Chip On Board (COB)		3000 K	80	100 lm/W	120 °	500 mA	Domed	3 mm
BRIDGELUX BXRA-30E4000-H-03	2.8 A	5040 lm	25 °C	45.6 mm	2 in	Square	Warm White	Chip On Board (COB)	3-Step MacAdam Ellipse	3000 K	80	102 lm/W	120 °	2.1 A	Domed	3 mm	23.4 V
BRIDGELUX BXRA-30G4000-H-00	2.8 A	4260 lm	25 °C	45.6 mm	2 in	Square	Warm White	Chip On Board (COB)		3000 K	90	86 lm/W	120 °	2.1 A	Domed	3 mm	23.5 V
BRIDGELUX BXRA-30G2000-B-00	750 mA	2000 lm	25 °C	22.8 mm	25.8 mm	Rectangle	Warm White	Chip On Board (COB)		3000 K	90	77 lm/W	120 °		Domed	3 mm	37 V

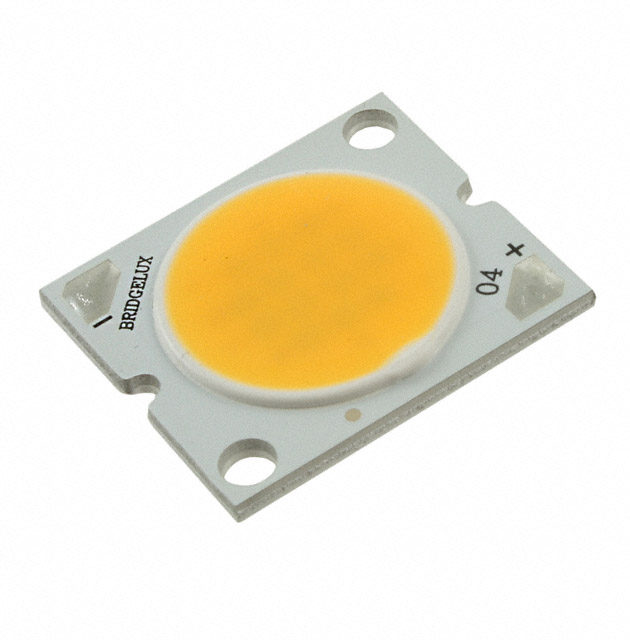

BRIDGELUX BXRA-30G0800-B-00	750 mA	890 lm	25 °C	22.8 mm	25.8 mm	Rectangle	Warm White	Chip On Board (COB)		3000 K	90	86 lm/W	120 °	500 mA	Domed	3 mm	20.7 V
BRIDGELUX BXRA-30E2000-B-00	750 mA	2400 lm	25 °C	22.8 mm	25.8 mm	Rectangle	Warm White	Chip On Board (COB)		3000 K	80	93 lm/W	120 °		Domed	3 mm	37 V
BRIDGELUX BXRA-30E0800-B-03	750 mA	1010 lm	25 °C	22.8 mm	25.8 mm	Rectangle	Warm White	Chip On Board (COB)	3-Step MacAdam Ellipse	3000 K	80	98 lm/W	120 °	500 mA	Domed	3 mm	20.7 V
BRIDGELUX BXRA-30G0800-B-03	750 mA	890 lm	25 °C	22.8 mm	25.8 mm	Rectangle	Warm White	Chip On Board (COB)	3-Step MacAdam Ellipse	3000 K	90	86 lm/W	120 °	500 mA	Domed	3 mm	20.7 V
