LDK220 Series

200 mA low quiescent current and low noise LDO

Catalog

200 mA low quiescent current and low noise LDO

Part	Output Configuration	Protection Features	Voltage - Output (Min/Fixed)	Package / Case	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply (Max) [Max]	Current - Output	Voltage - Input (Max) [Max]	Number of Regulators	Current - Quiescent (Iq)	Mounting Type	PSRR [Max]	PSRR [Min]	Control Features	Voltage Dropout (Max) [Max]	Output Type	Voltage - Output (Min/Fixed) [Min]

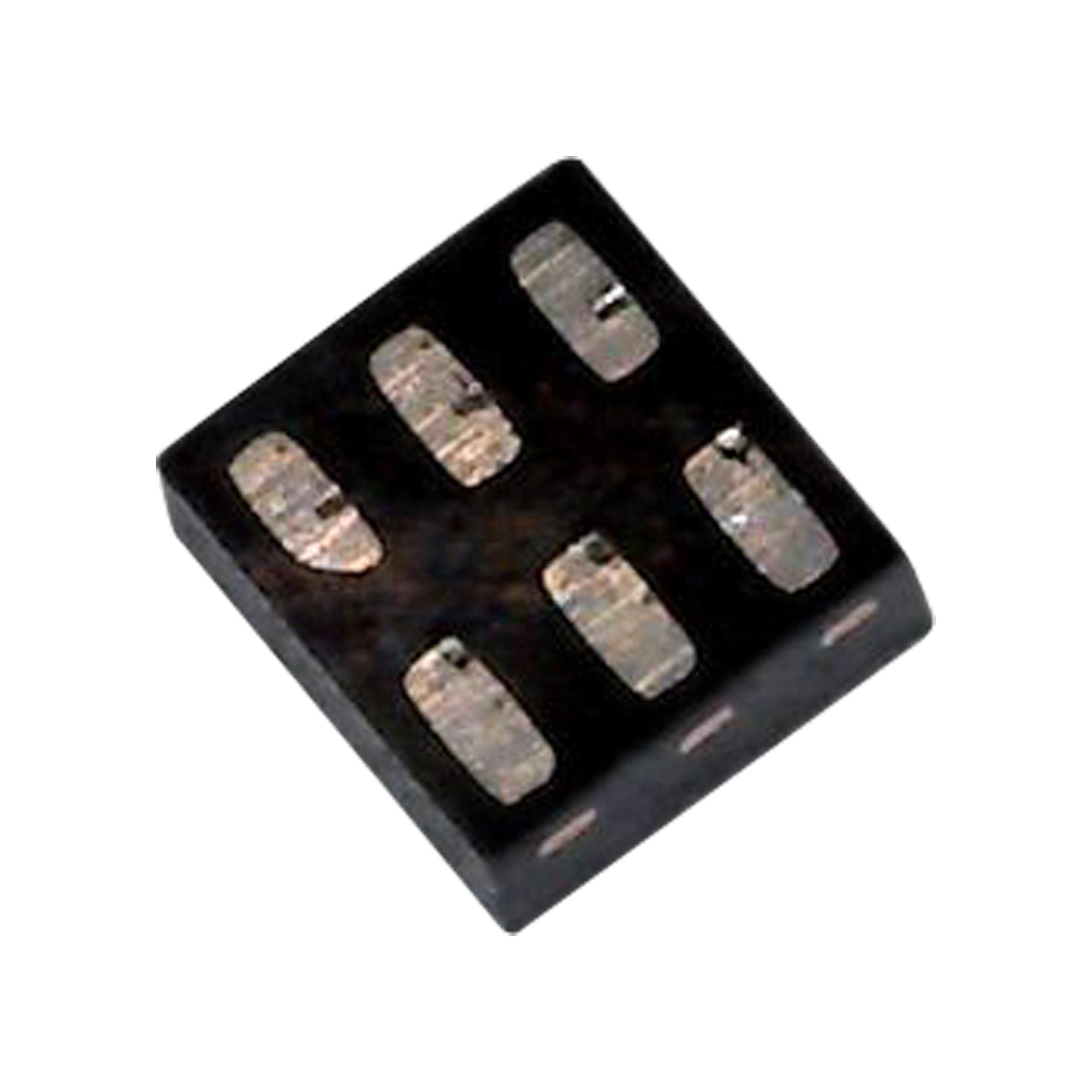

STMicroelectronics LDK220PU33R	Positive	Over Current Over Temperature	3.3 V	6-XFDFN	6-DFN	1.2	1.3	125 °C	-40 C	100 çA	0.2 A	13.2 V	1	90 çA	Surface Mount	55 dB	50 dB	Enable	0.35 V
STMicroelectronics LDK220M30R	Positive	Over Current Over Temperature	3 V	SC-74A SOT-753	SOT-23-5			125 °C	-40 C	100 çA	0.2 A	13.2 V	1	90 çA	Surface Mount	55 dB	50 dB	Enable	0.35 V
STMicroelectronics LDK220M40R	Positive	Over Current Over Temperature	4 V	SC-74A SOT-753	SOT-23-5			125 °C	-40 C	100 çA	0.2 A	13.2 V	1	90 çA	Surface Mount	55 dB	50 dB	Enable	0.35 V
STMicroelectronics LDK220C27R	Positive	Over Current Over Temperature	2.7 V	5-TSSOP SC-70-5 SOT-353	SOT-323-5			125 °C	-40 C	100 çA	0.2 A	13.2 V	1	90 çA	Surface Mount	55 dB	50 dB	Enable	0.35 V
STMicroelectronics LDK220M27R	Positive	Over Current Over Temperature	2.7 V	SC-74A SOT-753	SOT-23-5			125 °C	-40 C	100 çA	0.2 A	13.2 V	1	90 çA	Surface Mount	55 dB	50 dB	Enable	0.35 V
STMicroelectronics LDK220M33R	Positive	Over Current Over Temperature	3.3 V	SC-74A SOT-753	SOT-23-5			125 °C	-40 C	100 çA	0.2 A	13.2 V	1	90 çA	Surface Mount	55 dB	50 dB	Enable	0.35 V
STMicroelectronics LDK220PU-R	Positive	Over Current Over Temperature		6-XFDFN	6-DFN	1.2	1.3	125 °C	-40 C	100 çA	0.2 A	13.2 V	1	90 çA	Surface Mount	60 dB	45 dB	Enable	0.35 V	Adjustable
STMicroelectronics LDK220M35R	Positive	Over Current Over Temperature Short Circuit		SC-74A SOT-753	SOT-23-5			125 °C	-40 C	100 çA	0.2 A	13.2 V	1	90 çA	Surface Mount	55 dB	50 dB	Current Limit Enable			3.5 V
STMicroelectronics LDK220U32R	Positive	Over Current Over Temperature	3.2 V	TO-243AA				125 °C	-40 C	100 çA	0.2 A	13.2 V	1	90 çA	Surface Mount	55 dB	50 dB	Enable
STMicroelectronics LDK220PU40R	Positive	Over Current Over Temperature	4 V	6-XFDFN	6-DFN	1.2	1.3	125 °C	-40 C	100 çA	0.2 A	13.2 V	1	90 çA	Surface Mount	55 dB	50 dB	Enable	0.35 V

Catalog

200 mA low quiescent current and low noise LDO

Description

The LDK220 is a low drop voltage regulator, which provides a maximum output current of 200 mA from an input voltage in the range of 2.5 V to 13.2 V, with a typical dropout voltage of 100 mV. A ceramic capacitor stabilizes it on the output. The very low drop voltage, low quiescent current and low noise make it suitable for battery-powered applications. The enable logic control function puts the LDK220 in shutdown mode allowing a total current consumption lower than 1 µA. The device also includes a short-circuit constant current limiting and thermal protection.
