AD9653 Series
Manufacturer: Analog Devices
Beta
⌘K
IC ADC 16BIT PIPELINED 48LFCSP
| Part | Configuration | Mounting Type | Package / Case | Supplier Device Package | Sampling Rate (Per Second) | Data Interface | Ratio - S/H:ADC | Features | Number of Bits | Architecture | Number of Inputs | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Voltage - Supply, Digital [Min] | Voltage - Supply, Digital [Max] | Input Type | Reference Type | Number of A/D Converters | Utilized IC / Part | Input Range | Power (Typ) @ Conditions | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | S/H-ADC | Surface Mount | 48-WFQFN Exposed Pad CSP | 48-LFCSP 7x7 | 125 M | LVDS - Serial | 1:1 | Simultaneous Sampling | 16 | Pipelined | 4 | 85 °C | -40 °C | 1.9 V | 1.7 V | 1.7 V | 1.9 V | Differential | External Internal | 4 | ||||

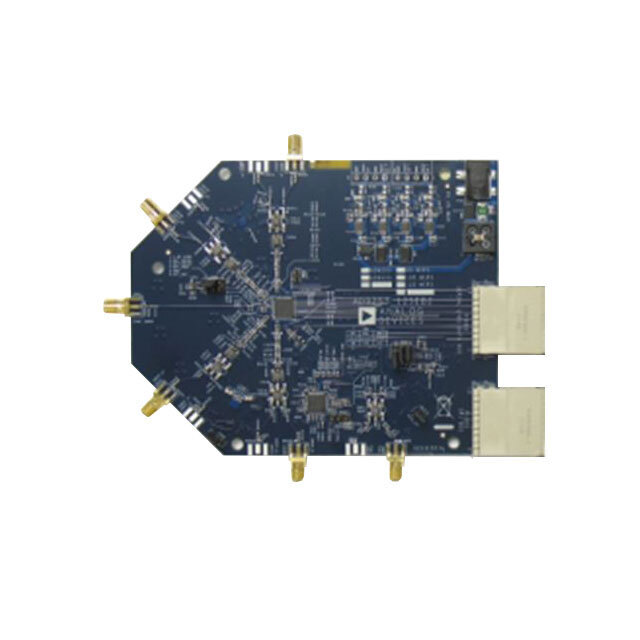

 Analog Devices | 125 M | LVDS Serial SPI | 16 | 4 | AD9653 | 2 Vpp | 673 mW | Board(s) |
