RDAD Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

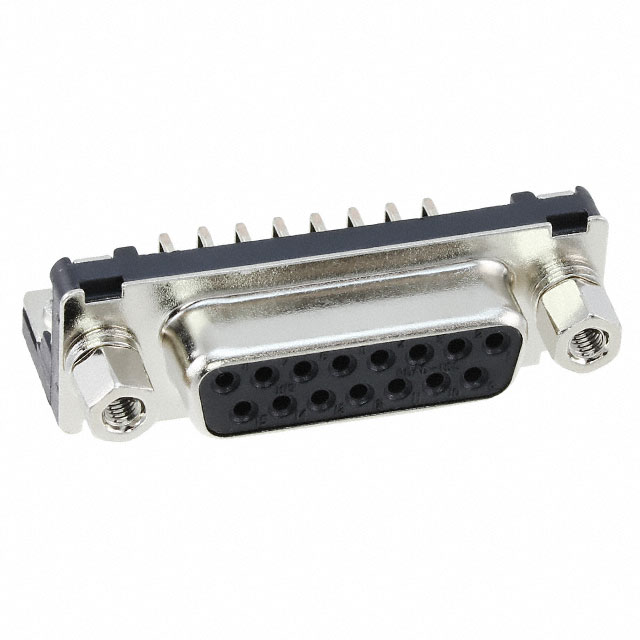

CONN D-SUB RCPT 15POS R/A SLDR
| Part | Contact Material | Dielectric Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Mounting Type | Material Flammability Rating | Termination | Shell Material, Finish | Connector Type | Shell Size, Connector Layout | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Connector Style | Number of Rows [custom] | Contact Finish | Current Rating (Amps) | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Black | -55 C | 85 °C | 350 VDC | Panel Mount Right Angle Through Hole | UL94 V-0 | Solder | Nickel Plated Steel | Receptacle Female Sockets | 2 | 15 | 0.203 çm | 8 µin | Signal | D-Sub | 2 | Gold | 3 A | |
 Hirose Electric Co Ltd | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Black | -55 C | 85 °C | 350 VDC | Panel Mount Right Angle Through Hole | UL94 V-0 | Solder | Nickel Plated Steel | Receptacle Female Sockets | 2 | 15 | 0.203 çm | 8 µin | Signal | D-Sub | 2 | Gold | 3 A | Housing/Shell (M2.6) |
