DF65 Series

Catalog

CONN HEADER SMD 4POS 1.7MM

Part	Contact Material	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Finish - Post	Mounting Type	Contact Shape	Material Flammability Rating	Insulation Color	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Features	Fastening Type	Number of Rows	Style	Contact Type	Number of Positions	Insulation Material	Termination	Connector Type	Current Rating (Amps)	Voltage Rating	Contact Finish - Mating	Note	Color	Contact Termination	Pitch	Pitch	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Type	Contact Finish Thickness	Contact Finish Thickness

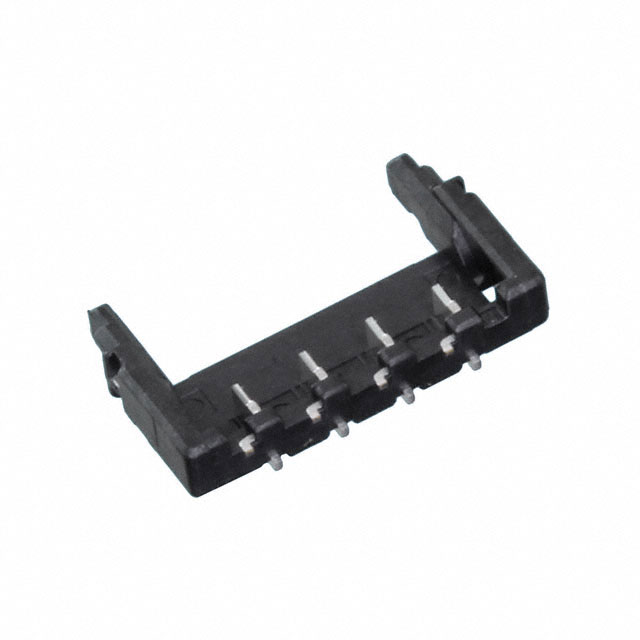

Hirose Electric Co Ltd DF65-4P-1.7V(21)	Brass	1.65 mm	0.065 in	-40 C	105 ░C	Shrouded - 3 Wall	Tin	Surface Mount	Rectangular	UL94 V-0	Black	All	0.067 in	1.7 mm	Solder Retention	Latch Lock	1	Board to Cable/Wire	Male Blade	4	Liquid Crystal Polymer (LCP)	Solder	Header
Hirose Electric Co Ltd DF65-5P-1.7V(78)	Copper	1.65 mm	0.065 in	-40 C	105 ░C	Shrouded - 3 Wall		Surface Mount	Square	UL94 V-0	Black	All	0.067 in	1.7 mm		Push-Pull	1	Board to Board Cable	Male Pin	5	Liquid Crystal Polymer (LCP)	Solder	Header	Varies by Wire Gauge	50 VAC	Gold

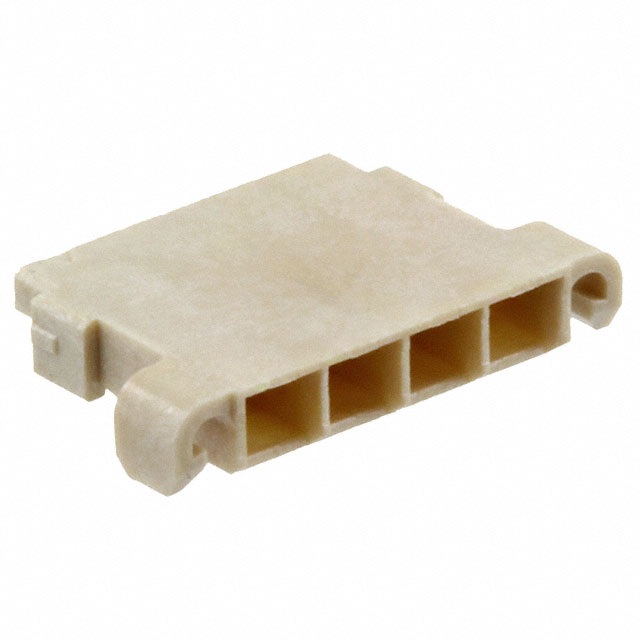

Hirose Electric Co Ltd DF65-4S-1.7C				-40 C	105 ░C			Free Hanging (In-Line)								Latch Lock	1		Female Blade Socket	4	Liquid Crystal Polymer (LCP)		Receptacle				Contacts Not Included	Beige	Crimp	0.067 in	1.7 mm

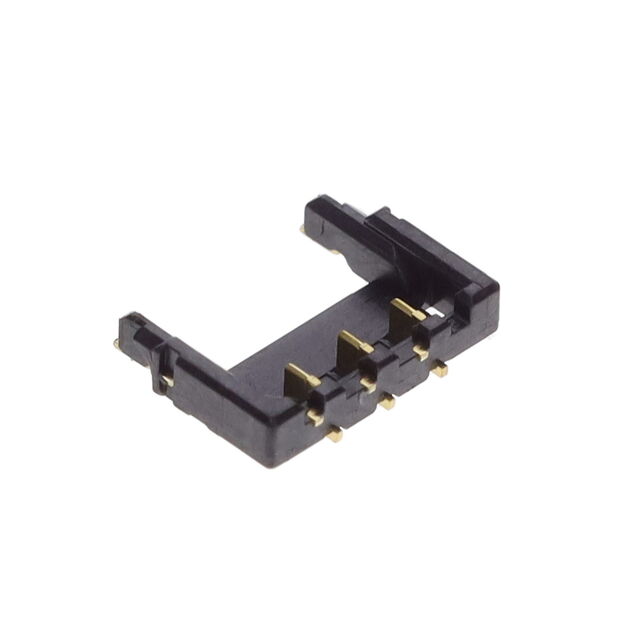

Hirose Electric Co Ltd DF65-3P-1.7V(78)	Copper	1.65 mm	0.065 in	-40 C	105 ░C	Shrouded - 3 Wall		Surface Mount	Square	UL94 V-0	Black	All	0.067 in	1.7 mm		Push-Pull	1	Board to Board Cable	Male Pin		Liquid Crystal Polymer (LCP)	Solder	Header	Varies by Wire Gauge	50 VAC	Gold
Hirose Electric Co Ltd DF65-6P-1.7V(78)	Copper	1.65 mm	0.065 in	-40 C	105 ░C	Shrouded - 3 Wall		Surface Mount	Square	UL94 V-0	Black	All	0.067 in	1.7 mm		Push-Pull	1	Board to Board Cable	Male Pin	6	Liquid Crystal Polymer (LCP)	Solder	Header	Varies by Wire Gauge	50 VAC	Gold

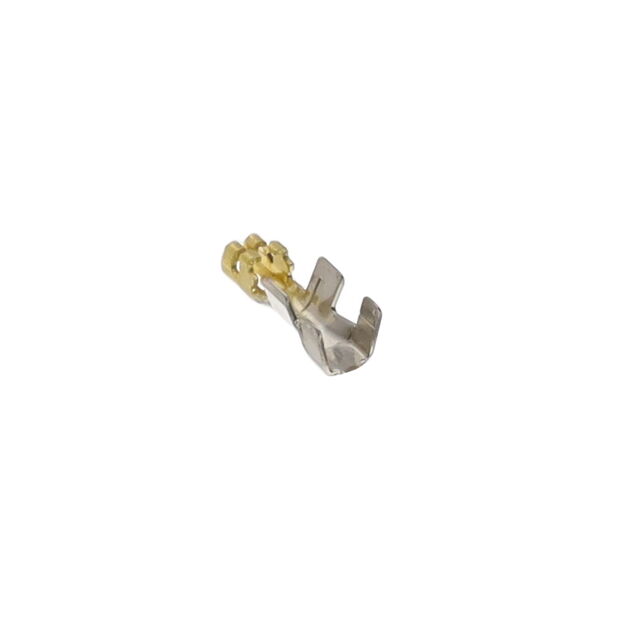

Hirose Electric Co Ltd DF65-2428SCFA(07)																													Crimp			Socket	24 AWG	28 AWG	Gold	Stamped	0.25 Ám	10 Áin

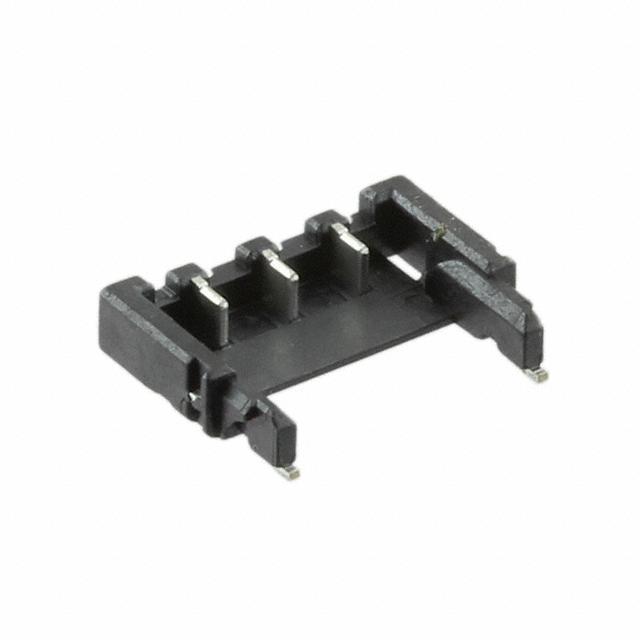

Hirose Electric Co Ltd DF65-3P-1.7V(21)	Brass	1.65 mm	0.065 in	-40 C	105 ░C	Shrouded - 3 Wall	Tin	Surface Mount	Rectangular	UL94 V-0	Black	All	0.067 in	1.7 mm	Solder Retention	Latch Lock	1	Board to Cable/Wire	Male Blade		Liquid Crystal Polymer (LCP)	Solder	Header

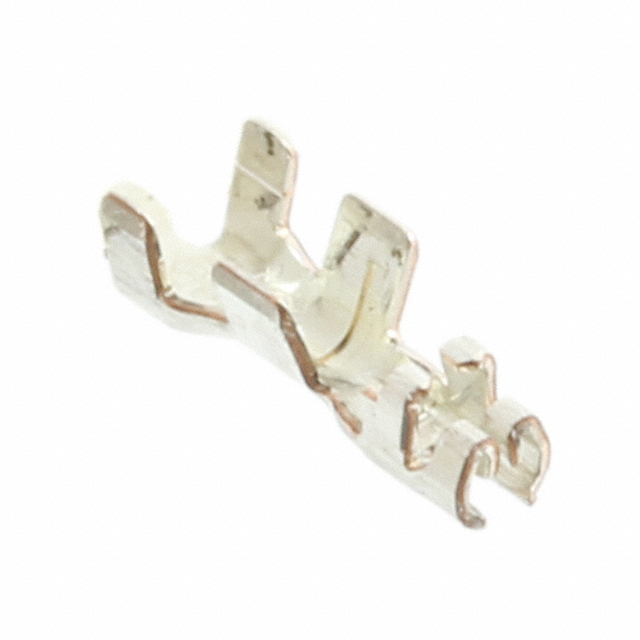

Hirose Electric Co Ltd DF65-2428SCF																													Crimp			Female Blade Sockets	24 AWG	28 AWG	Tin
Hirose Electric Co Ltd DF65-7P-1.7V(78)	Copper	1.65 mm	0.065 in	-40 C	105 ░C	Shrouded - 3 Wall		Surface Mount	Square	UL94 V-0	Black	All	0.067 in	1.7 mm		Push-Pull	1	Board to Board Cable	Male Pin	7	Liquid Crystal Polymer (LCP)	Solder	Header	Varies by Wire Gauge	50 VAC	Gold
