09232VA Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K

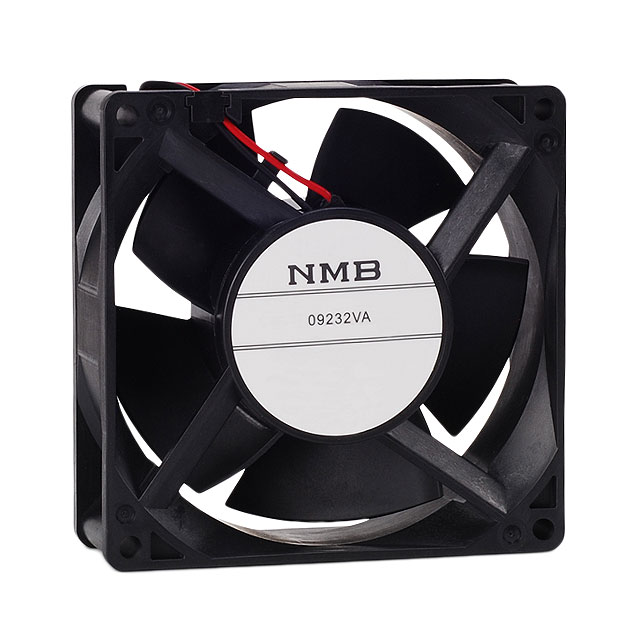

DC AXIAL FAN, 24 V, SQUARE, 92 MM, 32 MM, BALL BEARING, 105.94 CFM
| Part | Voltage Range [Max] | Voltage Range [Min] | Material - Blade | Current Rating (Amps) | Material - Frame | Air Flow | Air Flow | Operating Temperature [Max] | Operating Temperature [Min] | RPM | Noise | Static Pressure | Static Pressure | Size / Dimension [y] | Size / Dimension [x] | Width [y] | Fan Type | Voltage - Rated | Ingress Protection | Weight | Weight | Power (Watts) | Termination | Bearing Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 26.4 VDC | 18 VDC | Plastic | 0.5 A | Plastic | 105.9 CFM | 2.97 m³/min | 70 °C | -10 °C | 7000 RPM | 59 dB(A) | 274 Pa | 1.1 in H2O | 92 mm | 92 mm | 32 mm | Tubeaxial | 24 VDC | IP69K - Dust Tight High Temp Water Jets Waterproof | 219.99 g | 0.485 lb | 12 W | 2 Wire Leads | Ball |
