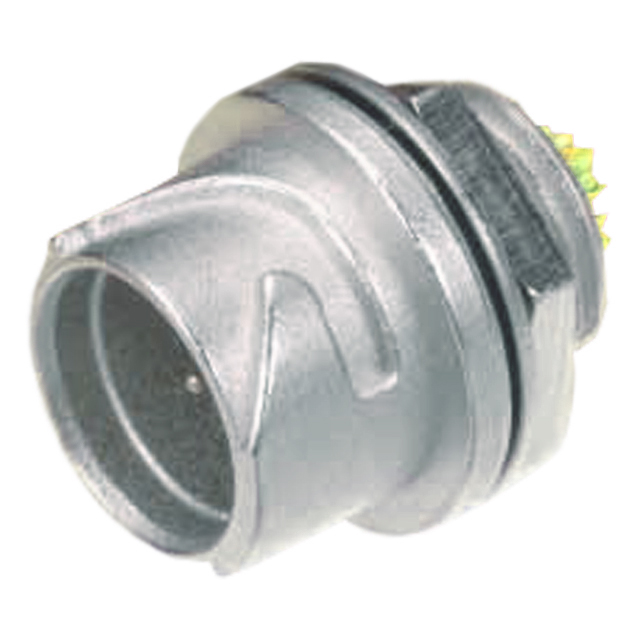

LF07WBR Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN RCPT MALE 6P GOLD SLDR CUP
| Part | Shell Finish | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Contact Material | Orientation | Insert Material | Material Flammability Rating | Contact Finish - Mating | Mounting Feature | Fastening Type | Primary Material | Voltage Rating | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Shell Material | Shell Size - Insert | Connector Type | Mounting Type | Color | Number of Positions | Material | Accessory Type | For Use With/Related Products | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

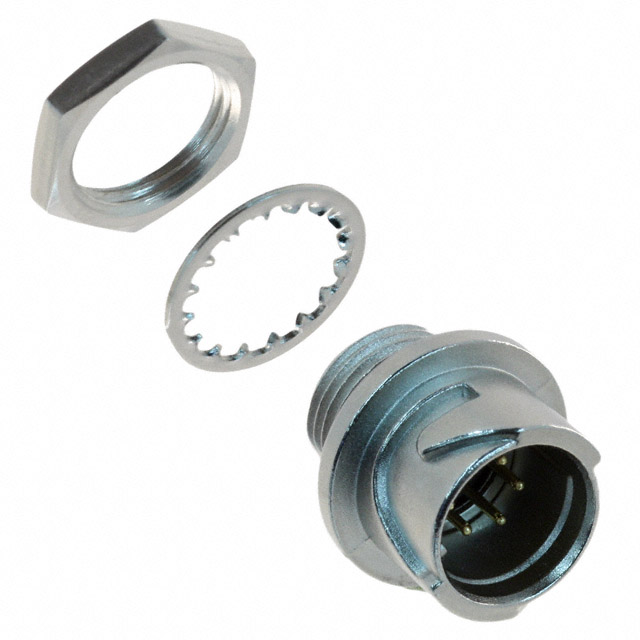

 Hirose Electric Co Ltd | Nickel | 8 µin | 0.203 µm | 2 A | Copper Alloy | Keyed | Polyphenylene Sulfide (PPS) | UL94 V-0 | Gold | Bulkhead - Rear Side Nut | Bayonet Lock | Metal | 30 VAC 42 VDC | IP67/IP68 | 85 °C | -25 °C | Industrial Telecommunications | Zinc Alloy | 7 | Receptacle Male Pins | Panel Mount | Silver | 6 | ||||
 Hirose Electric Co Ltd | Nickel | 8 µin | 0.203 µm | 5 A | Copper Alloy | Keyed | Polyphenylene Sulfide (PPS) | UL94 V-0 | Gold | Bulkhead - Rear Side Nut | Bayonet Lock | Metal | 125 VAC 175 VDC | IP67/IP68 | 85 °C | -25 °C | Industrial Telecommunications | Zinc Alloy | 7 | Receptacle Male Pins | Panel Mount | Silver | |||||

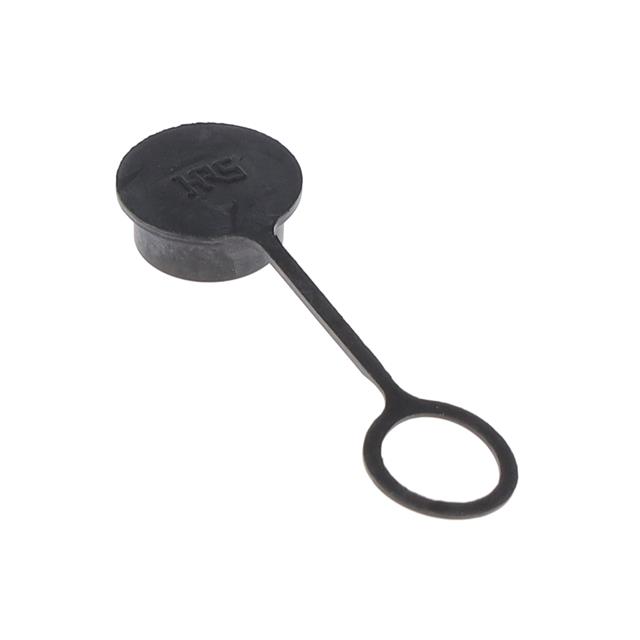

 Hirose Electric Co Ltd | 7 | Black | Rubber | Cap (Cover) | LF Series Receptacle | Dust Tight Waterproof | |||||||||||||||||||||

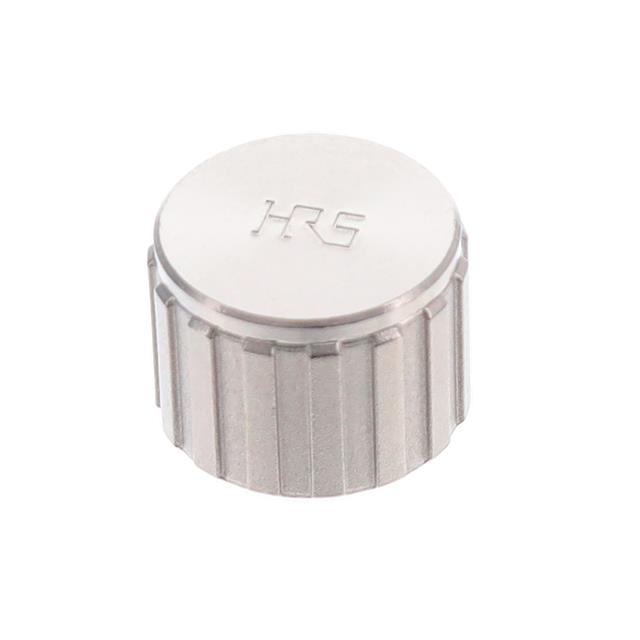

 Hirose Electric Co Ltd | 7 | Silver | Zinc Alloy | Cap (Cover) | LF Series Receptacle | Dust Tight Waterproof | |||||||||||||||||||||

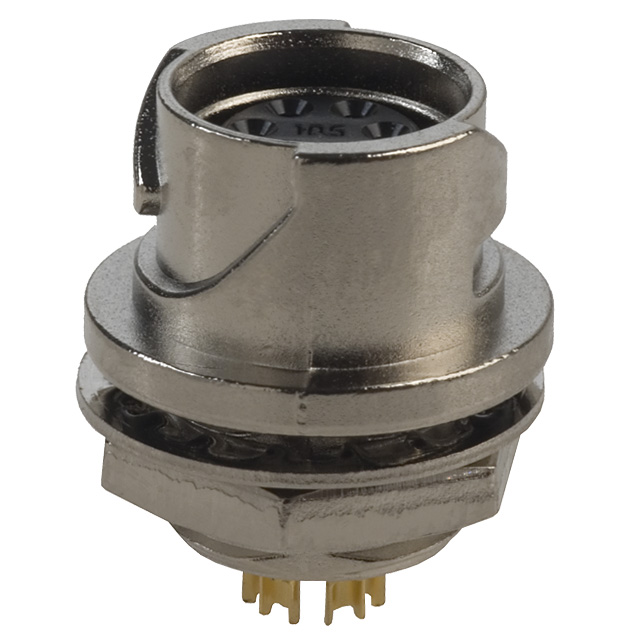

 Hirose Electric Co Ltd | Nickel | 8 µin | 0.203 µm | 2 A | Phosphor Bronze | Keyed | Polyphenylene Sulfide (PPS) | UL94 V-0 | Gold | Bulkhead - Rear Side Nut | Bayonet Lock | Metal | 30 VAC 42 VDC | IP67/IP68 | 85 °C | -25 °C | Industrial Telecommunications | Zinc Alloy | 7 | Receptacle Female Sockets | Panel Mount | Silver | 6 |
