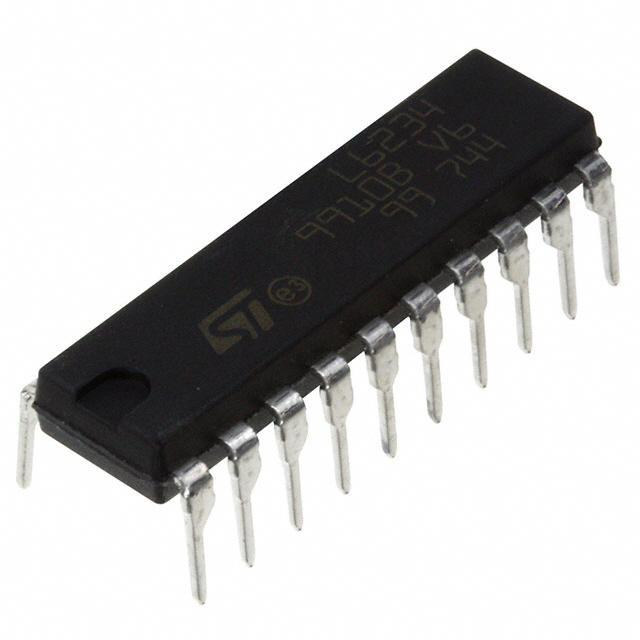

L6234 Series

Catalog

IC MOTOR DRIVER 7V-52V 20POWERSO

Part	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output	Voltage - Load [Min]	Voltage - Load [Max]	Interface	Output Configuration	Package / Case	Technology	Mounting Type	Motor Type - AC, DC	Supplier Device Package	Function	Voltage - Supply [Max]	Voltage - Supply [Min]
STMicroelectronics L6234PD013TR	General Purpose	-40 C	125 °C	4 A	7 V	52 V	Parallel	Half Bridge (3)	20-SOIC (0.433" 11.00mm Width) Exposed Pad	BiCDMOS	Surface Mount	Brushless DC (BLDC)	PowerSO-20	Driver - Fully Integrated Control and Power Stage	52 V	7 V
STMicroelectronics L6234	General Purpose	-40 C	125 °C	2.8 A	7 V	52 V	Parallel	Half Bridge (3)	20-DIP (0.300" 7.62mm)	BiCDMOS	Through Hole	Brushless DC (BLDC)	20-PowerDIP	Driver - Fully Integrated Control and Power Stage	52 V	7 V
STMicroelectronics L6234PD	General Purpose	-40 C	125 °C	4 A	7 V	52 V	Parallel	Half Bridge (3)	20-SOIC (0.433" 11.00mm Width) Exposed Pad	BiCDMOS	Surface Mount	Brushless DC (BLDC)	PowerSO-20	Driver - Fully Integrated Control and Power Stage	52 V	7 V
