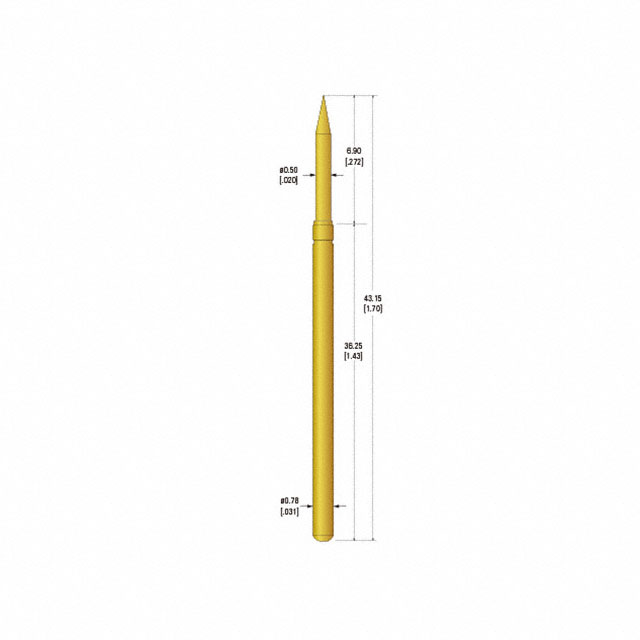

TOP050 Series

Catalog

ICT SPRING CONTACT TEST PROBE

Part	Material - Tip [custom]	Current Rating (Amps)	Material - Body	Length - Overall [x]	Length - Overall [x]	Length - Tip	Length - Tip	Tip Type [diameter]	Tip Type [diameter]	Tip Type	Tip Type [diameter]
Chip Shine / CSRF TOP050H05/200G	Beryllium Copper Gold Plated Steel	3 A	Phosphor Copper Gold Plated	1.7 in	43.15 mm	6.9 mm	0.272 in	0.02 in	0.5 mm	Spring Tip - Crown Head
Chip Shine / CSRF TOP050I05/100G	Beryllium Copper Gold Plated Steel	3 A	Phosphor Copper Gold Plated	1.7 in	43.15 mm	6.9 mm	0.272 in	0.02 in	0.5 mm	Spring Tip - Serrated Head
Chip Shine / CSRF TOP050I064/200G	Beryllium Copper Gold Plated Steel	3 A	Phosphor Copper Gold Plated	1.7 in	43.15 mm	6.9 mm	0.272 in		0.025 in	Spring Tip - Serrated Head	0.64 mm
Chip Shine / CSRF TOP050I05/200G	Beryllium Copper Gold Plated Steel	3 A	Phosphor Copper Gold Plated	1.7 in	43.15 mm	6.9 mm	0.272 in	0.02 in	0.5 mm	Spring Tip - Serrated Head
Chip Shine / CSRF TOP050A05/100G	Beryllium Copper Gold Plated Steel	3 A	Phosphor Copper Gold Plated	1.7 in	43.15 mm	6.9 mm	0.272 in	0.02 in	0.5 mm	Spring Tip - Pyramid Head
Chip Shine / CSRF TOP050I064/100G	Beryllium Copper Gold Plated Steel	3 A	Phosphor Copper Gold Plated	1.7 in	43.15 mm	6.9 mm	0.272 in		0.025 in	Spring Tip - Serrated Head	0.64 mm
Chip Shine / CSRF TOP050W05/200G	Beryllium Copper Gold Plated Steel	3 A	Phosphor Copper Gold Plated	1.7 in	43.15 mm	6.9 mm	0.272 in	0.02 in	0.5 mm	Spring Tip - Dagger Head
