HIF3CD Series

Catalog

CONN HEADER VERT 10POS 2.54MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Contact Length - Mating	Contact Length - Mating	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Insulation Height [z]	Overall Contact Length	Overall Contact Length	Features	Insulation Material	Voltage Rating	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Finish - Mating	Contact Type	Number of Positions	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Shrouding	Mounting Type	Style	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Material	Number of Rows [custom]	Connector Type	Material Flammability Rating	Termination	Current Rating (Amps)

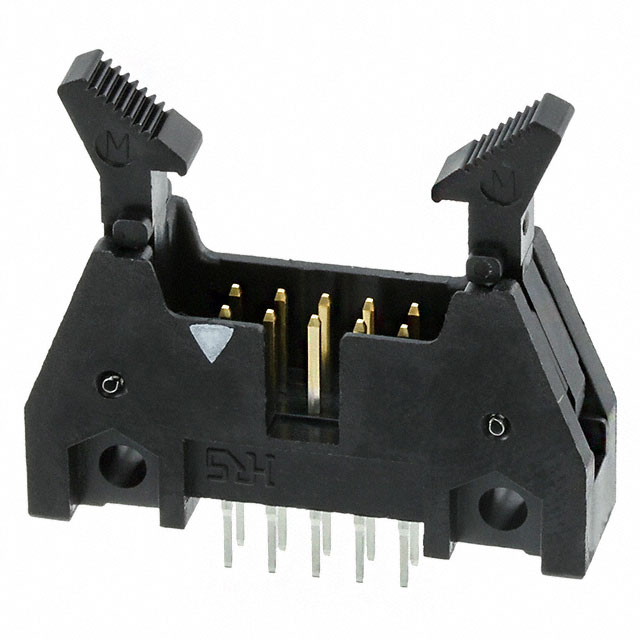

Hirose Electric Co Ltd HIF3CD-10PA-2.54DSA(71)	78.7 µin	2 µm	6 mm	0.236 in	Square	0.1 in	2.54 mm	0.701 in	17.8 mm	16.7 mm	0.657 in	Keying Slot	Polybutylene Terephthalate (PBT)	200 V	0.1 "	2.54 mm	Black	Gold	Male Pin	10	Latch Lock/Eject Hooks	8 µin	0.203 µm	Tin	0.13 "	3.3 mm	Shrouded - 4 Wall	Through Hole	Board to Cable/Wire	-55 C	85 °C	All	Brass	2	Header	UL94 V-0	Solder
Hirose Electric Co Ltd HIF3CD-10PA-2.54DSA(63)	78.7 µin	2 µm			Square	0.1 in	2.54 mm	0.701 in	17.8 mm			Keying Slot	Polybutylene Terephthalate (PBT)	200 V	0.1 "	2.54 mm	Black	Gold	Male Pin	10	Latch Lock/Eject Hooks	8 µin	0.203 µm	Tin	0.13 "	3.3 mm	Shrouded - 4 Wall	Through Hole	Board to Cable/Wire	-55 C	85 °C	All	Brass	2	Header	UL94 V-0	Solder	Varies by Wire Gauge
