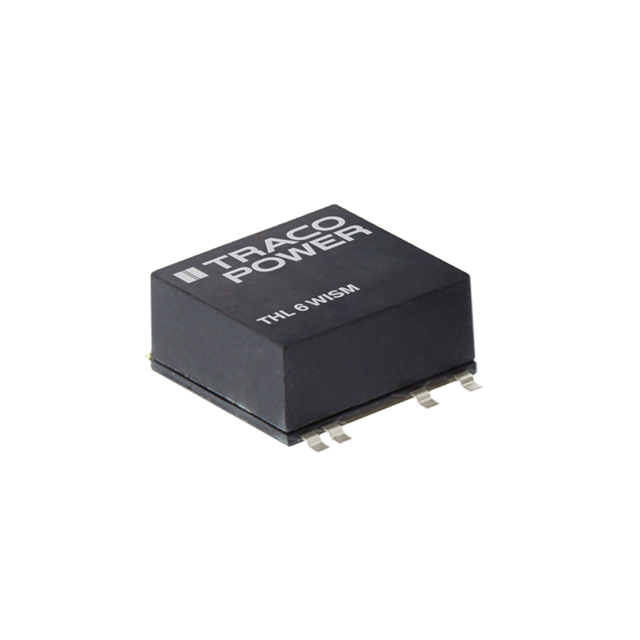

THL 6 Series
Manufacturer: Traco Power
Beta
⌘K
DC DC CONVERTER +/-12V 6W
| Part | Features | Current - Output (Max) | Voltage - Output 2 | Efficiency | Voltage - Output 1 | Voltage - Input (Max) [Max] | Power (Watts) | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Mounting Type | Type | Number of Outputs | Applications | Package / Case | Current - Output (Max) [Max] | Current - Output (Max) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | Remote On/Off SCP | 250 mA | -12 V | 83 % | 12 V | 36 V | 6 W | 1.5 kV | 20.3 mm | 10.2 mm | 0.8 " | 0.87 in | 0.4 " | 22 mm | 75 °C | -40 °C | 9 V | Surface Mount | Isolated Module | 2 | ITE (Commercial) | 16-SMD Module 7 Leads | ||
Traco Power | Remote On/Off SCP | 79 % | 5 V | 36 V | 6 W | 1.5 kV | 20.3 mm | 10.2 mm | 0.8 " | 0.87 in | 0.4 " | 22 mm | 75 °C | -40 °C | 9 V | Surface Mount | Isolated Module | 1 | ITE (Commercial) | 16-SMD Module 7 Leads | 1.2 A | |||
Traco Power | Remote On/Off SCP | 83 % | 12 V | 75 V | 6 W | 1.5 kV | 20.3 mm | 10.2 mm | 0.8 " | 0.87 in | 0.4 " | 22 mm | 75 °C | -40 °C | 18 V | Surface Mount | Isolated Module | 1 | ITE (Commercial) | 16-SMD Module 7 Leads | 500 mA | |||
 Traco Power | Remote On/Off SCP | -5 V | 5 V | 75 V | 6 W | 1.5 kV | 20.3 mm | 10.2 mm | 0.8 " | 0.87 in | 0.4 " | 22 mm | 75 °C | -40 °C | 18 V | Surface Mount | Isolated Module | 2 | ITE (Commercial) | 16-SMD Module 7 Leads | 600 mA | 600 mA | ||
Traco Power | Remote On/Off SCP | 79 % | 5 V | 75 V | 6 W | 1.5 kV | 20.3 mm | 10.2 mm | 0.8 " | 0.87 in | 0.4 " | 22 mm | 75 °C | -40 °C | 18 V | Surface Mount | Isolated Module | 1 | ITE (Commercial) | 16-SMD Module 7 Leads | 1.2 A | |||
Traco Power | Remote On/Off SCP | 83 % | 24 V | 36 V | 6 W | 1.5 kV | 20.3 mm | 10.2 mm | 0.8 " | 0.87 in | 0.4 " | 22 mm | 75 °C | -40 °C | 9 V | Surface Mount | Isolated Module | 1 | ITE (Commercial) | 16-SMD Module 7 Leads | 250 mA | |||
Traco Power | Remote On/Off SCP | 76 % | 3.3 V | 75 V | 4.8 W | 1.5 kV | 20.3 mm | 10.2 mm | 0.8 " | 0.87 in | 0.4 " | 22 mm | 75 °C | -40 °C | 18 V | Surface Mount | Isolated Module | 1 | ITE (Commercial) | 16-SMD Module 7 Leads | 1.45 A |
