BZW06 Series

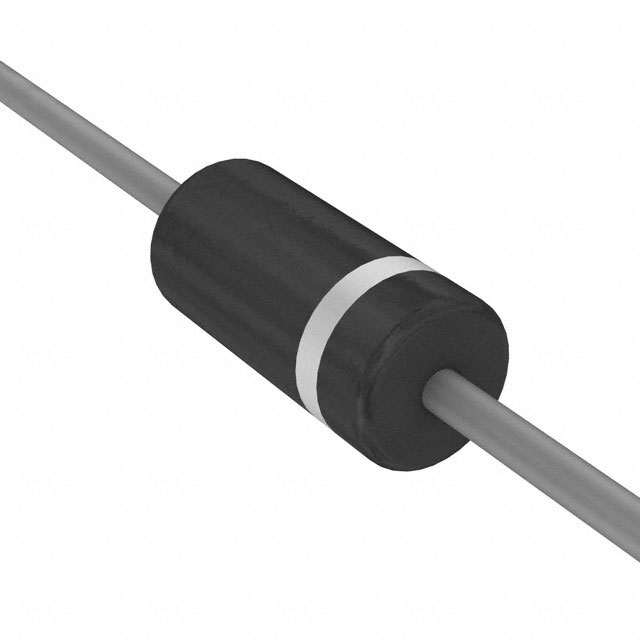

600 W, 5.8 V TVS in DO-15

Catalog

600 W, 5.8 V TVS in DO-15

Part	Voltage - Reverse Standoff (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Breakdown (Min) [Min]	Power - Peak Pulse	Package / Case	Mounting Type	Type	Supplier Device Package	Unidirectional Channels [custom]	Capacitance @ Frequency	Voltage - Clamping (Max) @ Ipp [Max]	Current - Peak Pulse (10/1000µs)	Current - Peak Pulse (10/1000µs) [Min]	Current - Peak Pulse (10/1000µs) [Max]	Bidirectional Channels [custom]
STMicroelectronics BZW06-342RL	342 V	175 °C	-55 °C	General Purpose	380 V	600 W	Axial DO-15 DO-204AC	Through Hole	Zener	DO-204AC (DO-15)	1	360 pF	706 V	5.7 A
STMicroelectronics BZW06-10	10.2 V	175 °C	-55 °C	General Purpose	11.4 V	600 W	Axial DO-15 DO-204AC	Through Hole	Zener	DO-204AC (DO-15)	1	1 MHz 2300 pF	21.7 V	184 A
STMicroelectronics BZW06-33	33.3 V	175 °C	-55 °C	General Purpose	37.1 V	600 W	Axial DO-15 DO-204AC	Through Hole	Zener	DO-204AC (DO-15)	1	900 pF	69.7 V	57 A	8 µs	20 µs
STMicroelectronics BZW06-376RL	376 V	175 °C	-55 °C	General Purpose	418 V	600 W	Axial DO-15 DO-204AC	Through Hole	Zener	DO-204AC (DO-15)	1	1 MHz 350 pF	776 V	5.7 A
STMicroelectronics BZW06-6V4BRL	6.4 V	175 °C	-55 °C	General Purpose	7.13 V	600 W	Axial DO-15 DO-204AC	Through Hole	Zener	DO-204AC (DO-15)		1 MHz 1850 pF	14.5 V	276 A			1
STMicroelectronics BZW06-48B	47.8 V	175 °C	-55 °C	General Purpose	53.2 V	600 W	Axial DO-15 DO-204AC	Through Hole	Zener	DO-204AC (DO-15)		1 MHz 350 pF	100 V	40 A			1
STMicroelectronics BZW06-48BRL	47.8 V	175 °C	-55 °C	General Purpose	53.2 V	600 W	Axial DO-15 DO-204AC	Through Hole	Zener	DO-204AC (DO-15)		1 MHz 350 pF	100 V	40 A			1
STMicroelectronics BZW06-40RL	40.2 V	175 °C	-55 °C	General Purpose	44.7 V	600 W	Axial DO-15 DO-204AC	Through Hole	Zener	DO-204AC (DO-15)	1	800 pF	84 V	48 A
STMicroelectronics BZW06-26B	25.6 V	175 °C	-55 °C	General Purpose	28.5 V	600 W	Axial DO-15 DO-204AC	Through Hole	Zener	DO-204AC (DO-15)		537.5 pF	53.5 V	75 A			1
STMicroelectronics BZW06-33BRL	33.3 V	175 °C	-55 °C	General Purpose	37.1 V	600 W	Axial DO-15 DO-204AC	Through Hole	Zener	DO-204AC (DO-15)		450 pF	69.7 V	57 A	8 µs	20 µs	1

Catalog

600 W, 5.8 V TVS in DO-15

Description

The BZW06 TVS series is designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2, MIL STD 883 Method 3015, and electrical overstress such as IEC 61000-4-4 and 5. They are used for surges below 600 W 10/1000 μs. This planar technology makes it compatible with high-end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time.
